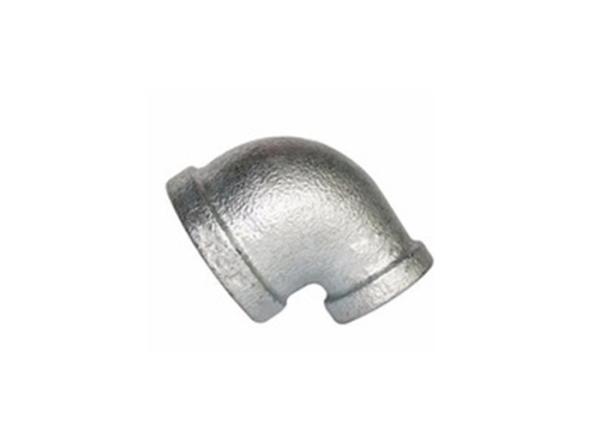

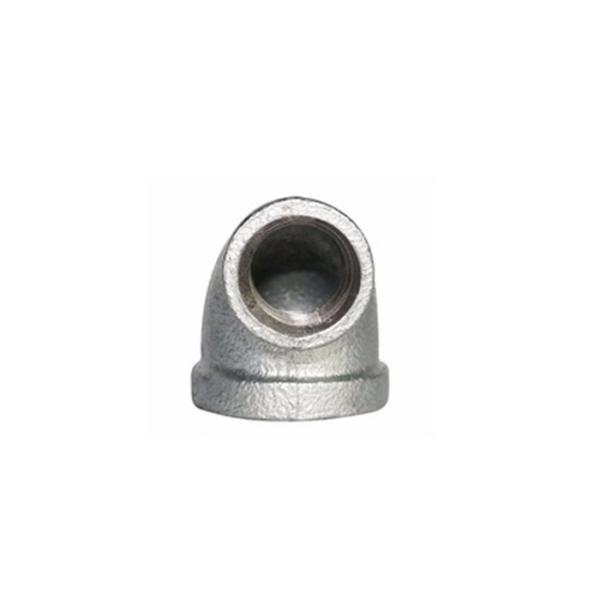

Abrasive Resistance Malleable Iron Elbow O Ring Pipe Fittings 1.6Mpa Working Pressure
Abrasive Resistance Malleable Iron Elbow O Ring Pipe Fittings 1.6Mpa Working Pressure
Abrasive Resistance Malleable Iron Elbow O Ring Pipe Fittings 1.6Mpa Working Pressure
Abrasive Resistance Malleable Iron Elbow O Ring Pipe Fittings 1.6Mpa Working Pressure
Abrasive Resistance Malleable Iron Elbow O Ring Pipe Fittings 1.6Mpa Working Pressure
Abrasive Resistance Malleable Iron Elbow O Ring Pipe Fittings 1.6Mpa Working Pressure
Specifications
Brand Name :
leyon
Model Number :
OEM ASTM O-ring Fitting Galvanizated Fitting Pipe Elbow
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Material :
Iron
Certificate :
BSI,ANAB,ISO9001,FM,UL
Standard :
ANSI,BS,DIN
Dimension :
A:40mm B:42mm
Application :
Steam, air, gas and oil pipes
Working pressure :
1.6Mpa
Description

ASTM Standard ELBOW 90 Deg Elbow O-ring Fitting Galvanizated Fitting Pipe Elbow​

Leyon delivers fitting pipe elbow for every commercial and mechanical application. We have commodities available in different dimension, substantial and structure.These O-ring Fitting Galvanizated Fitting Pipe Elbow scope from reliable effectiveness to function and exactness course.

Attached table:

Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
mm 10X8 15X8 15X10 20X10 20X15
Dim.
(mm)		 A 23 26 26 28 30
B 23 26 26 28 31
Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
mm 25X15 25X20 32X15 32X20 32x25
Dim.
(mm)		 A 32 35 34 36 40
B 34 36 38 41 42

Malleable cast iron is produced from white cast iron, which is made from hot liquid iron with certain chemical components. The white cast iron needs to be treated by malleablizing, such as graphitizing or oxidation and decarbonization, then its metallographic structures or chemical components will be changed, so can become into malleable cast iron.

Comparing with the gray cast iron, malleable cast iron has better strength and ductility, especially better impact resistance in low temperatures.

Comparing with cast steel, malleable cast iron has better abrasive resistance and shock absorption.

Comparing with the ductile iron, both of them have good strength and ductility, but malleable iron has better impact resistance, but ductile iron has better abrasive resistance.

Visual communication of O-ring Fitting Galvanizated Fitting Pipe Elbow

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements

Delivery details

 According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

Abrasive Resistance Malleable Iron Elbow O Ring Pipe Fittings 1.6Mpa Working Pressure
