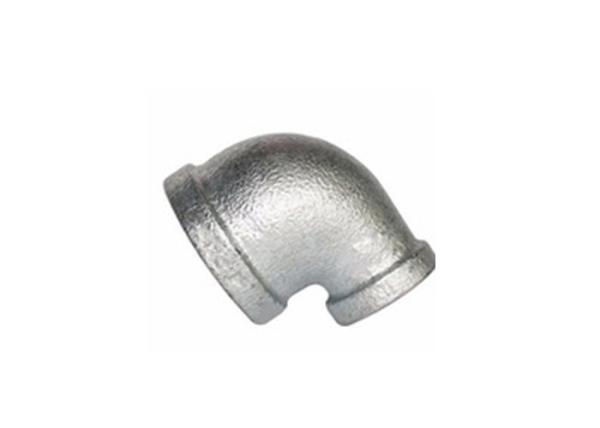

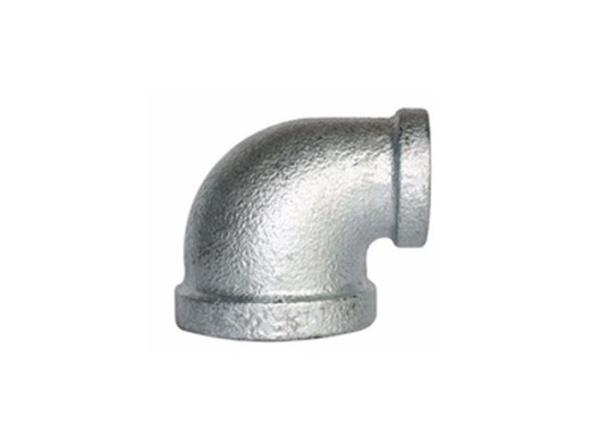

Plain Malleable Iron Elbow 1 Inch Galvanized Pipe Fittings No Thread
Plain Malleable Iron Elbow 1 Inch Galvanized Pipe Fittings No Thread
Plain Malleable Iron Elbow 1 Inch Galvanized Pipe Fittings No Thread
Plain Malleable Iron Elbow 1 Inch Galvanized Pipe Fittings No Thread
Plain Malleable Iron Elbow 1 Inch Galvanized Pipe Fittings No Thread
Plain Malleable Iron Elbow 1 Inch Galvanized Pipe Fittings No Thread
Specifications
Brand Name :
leyon
Model Number :
OEM Galvanized Malleable Iron Pipe Fitting
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Color :
Galvanized & black
Technics :
Casting
Standard :
ANSI,BS,DIN
Dimension :
35mm
Chemical property :
(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Testing pressure :
2.5Mpa
Description

How to judge the performance of Malleable cast iron ?

Firstly you can check the elongation

Secondly you can see whether there is any cross section in the internal thread

Thirdly if there is any loose loose

Excel of Galvanized Malleable Iron Pipe Fitting

Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
mm 10X8 15X8 15X10 20X10 20X15
Dim.
(mm)		 A 23 26 26 28 30
B 23 26 26 28 31
Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
mm 25X15 25X20 32X15 32X20 32x25
Dim.
(mm)		 A 32 35 34 36 40
B 34 36 38 41 42

Describe of Galvanized Malleable Iron Pipe Fitting

  1. Pipe fittings size of Galvanized Malleable Iron Pipe Fitting from 1/8 "to 8"

  2. Thread and angle are inspected by professional angle gauge, to ensure accuracy of Galvanized Malleable Iron Pipe Fitting.

  3. As the quality of raw material of Galvanized Malleable Iron Pipe Fittingis the source of product quality, we use dense, strength, unpunched steel offcut to produce our products.

  4. Using high calorific value of natural gas annealing furnace, strictly control the annealing process to improve the physical properties of materials of Galvanized Malleable Iron Pipe Fitting.

  5. The cast iron samples of Galvanized Malleable Iron Pipe Fitting are used to test its material’s quality by using spectrometer from Oxford Instruments.

  6. We imported the equipments from DISA Denmark, DJ AMF Japan, SINTOKOGIO Japan in the MI elbow product line, the product quality is very stable.

Description list of Galvanized Malleable Iron Pipe Fitting

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements

Delivery details

 According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
