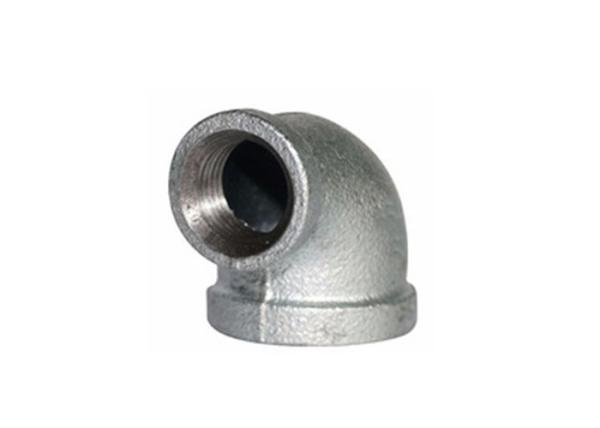

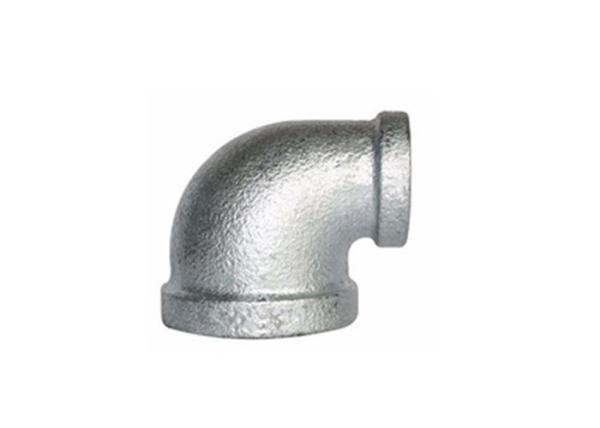

High Performance Malleable Iron Elbow Beaded Hose Barb Fittings Anti Abrasive
High Performance Malleable Iron Elbow Beaded Hose Barb Fittings Anti Abrasive
High Performance Malleable Iron Elbow Beaded Hose Barb Fittings Anti Abrasive
High Performance Malleable Iron Elbow Beaded Hose Barb Fittings Anti Abrasive
High Performance Malleable Iron Elbow Beaded Hose Barb Fittings Anti Abrasive
High Performance Malleable Iron Elbow Beaded Hose Barb Fittings Anti Abrasive
Specifications
Brand Name :
leyon
Model Number :
OEM ASTM Beaded Elbows
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Meterial :
Malleable iron
Physical property :
Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Surface treatment :
Hot dipped galvanized and cold galvanized
Testing pressure :
2.5Mpa
Application :
Steam, air, gas and oil pipes
Description

Tabular form :

Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
mm 10X8 15X8 15X10 20X10 20X15
Dim.
(mm)		 A 23 26 26 28 30
B 23 26 26 28 31
Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
mm 25X15 25X20 32X15 32X20 32x25
Dim.
(mm)		 A 32 35 34 36 40
B 34 36 38 41 42

Importance information :

Make comprehensive analysis of ASTM Beaded Elbows on the material of casting samples to ensure that the materials are excellent.

The average thickness of the zinc layer is higher than the standard requirements of ASTM Beaded Elbows for ASME (86 microns), EN (70 microns), DIN (70 microns) and Israel standard.

Paremeter :

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements

Delivery details

 According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

What is ASTM ?

ASTM—American Society for Testing and Materials


ASTMInternational , know until 2001 as the American Socirty for Testing and Materials (ASTM),is an international standard organization that develops and publishes voluntary consensus technical standard for a wide range of materials , products , systems,and services . Some 12575 ASTM voluntary consensus standard operate globally. The organization’s headquarters is in West Conshohocken , Pennsylvania, about 5mi (8.0 km) northwest of Philadelphia .

ASTM , founded in 1898 as the American Section of the Internationl Association for Testing and Materials, predates other standards organizations such as BSI (1901) , DIN (1917) , ANSI(1918) and AFNOR (1926).
