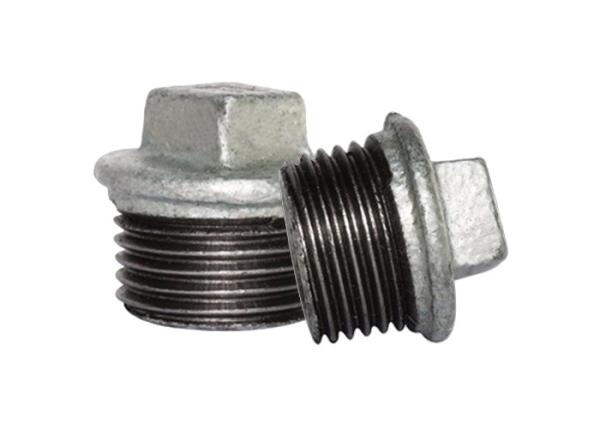

High Pressure Mechanical Plumbing Pipe Fittings Plug Pipe Coupler Ansi Standard
High Pressure Mechanical Plumbing Pipe Fittings Plug Pipe Coupler Ansi Standard
High Pressure Mechanical Plumbing Pipe Fittings Plug Pipe Coupler Ansi Standard
High Pressure Mechanical Plumbing Pipe Fittings Plug Pipe Coupler Ansi Standard
High Pressure Mechanical Plumbing Pipe Fittings Plug Pipe Coupler Ansi Standard
High Pressure Mechanical Plumbing Pipe Fittings Plug Pipe Coupler Ansi Standard
Specifications
Brand Name :
kanaif
Model Number :
ansi standard malleable iron pipe fitting plug
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Color :
Galvanized & Black
Meterial :
Malleable iron
Technics :
Casting
Standard :
ANSI,BS,DIN
Surface treatment :
Hot Galvanized
Head Code :
Square
Type :
ansi standard malleable iron pipe fitting plug
Size :
1/8"-6“
Description

Ansi standard malleable iron pipe fitting plug 's size chart

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4
mm 6 8 10 15 20 25 32
Dim.
(mm)		 A 15.5 18.3 20.1 23.9 27.2 31.8 34.5
Size Inch 11/2 2 21/2 3 4 6 　
mm 40 50 65 80 100 150 　
Dim.
(mm)		 A 36.9 39.7 46 49 64.5 71.5 　

Main information of Banded Malleable Iron Pipe Fitting plug

1. Each ansi standard malleable iron pipe fitting plug after air tightness test, ensure no leakage

2. Thread diameter, parallelism, angle, tooth type, every part on thread will be regulated strictly .even each union must be sorted by plug gauge.

3.The zinc average coating thicknessis higher than the requirements of standard for ASME(86 um), EN(70um), DIN(70um) and SI(78um).

4.Excellent iron materials are good oughness and long working life after rigorous annealing procedures.

5.Compete size range : from 1/8”-6”.

6.we use high heat value natural gas annealing furnace, strictly control the annealing process, improve the physical properties of the materials

7.We use spectrometer from Oxford Instruments to check the material's quality

8.State of the art equipments with automatic production line, making high-quality products efficiently.

9.No any sand hole on smooth surface.

Material information about ansi standard malleable iron pipe fitting plug

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
