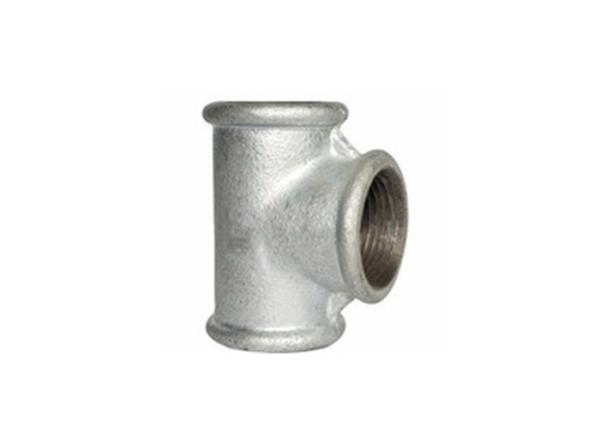

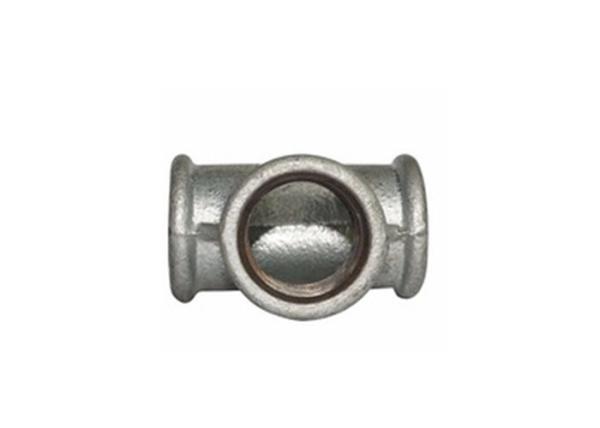

Eco Friendly Reducing Tee Pipe Fitting , 223 Black Iron Side Outlet Tee For Steam Pipe
Eco Friendly Reducing Tee Pipe Fitting , 223 Black Iron Side Outlet Tee For Steam Pipe
Eco Friendly Reducing Tee Pipe Fitting , 223 Black Iron Side Outlet Tee For Steam Pipe
Eco Friendly Reducing Tee Pipe Fitting , 223 Black Iron Side Outlet Tee For Steam Pipe
Eco Friendly Reducing Tee Pipe Fitting , 223 Black Iron Side Outlet Tee For Steam Pipe
Eco Friendly Reducing Tee Pipe Fitting , 223 Black Iron Side Outlet Tee For Steam Pipe
Specifications
Brand Name :
leyon
Model Number :
malleable fitting 223 banded equal tees
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Connection :
Female
Application :
Steam, air, gas and oil pipes
Standard :
11/4 inch malleable fitting 223 banded equal tees
Material :
Iron
Size :
3x3/4 inch
Dimensions :
52 mm
OEM :
OEM malleable fitting 223 banded equal tees
Description
China high quality malleable iron pipe fitting 223 side outlet banded equal tees
Leyon is 30 years old , commit itself to affording its experience and knowledge to provide banded equal tees for guests world wide in malleable cast iron scopes.Leyon could provide professional banded equal tees solutions for especial projects amid individual construction environment.
Attribute definition list of malleable fitting 223 banded equal tees
Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details
 According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

Angular deviations :

National standards allow for a range of angular deviations, but this deviation is within the range of plus or minus 0.5 °.

Size standard :

Our products are fit to the national standard .

Weight standard:

Until now , there is no weight standard to the pipe fitting .

Size Inch 3x3/4 3x1 3x11/4 3x11/2 3x2 3x21/2 4x1 4x11/4
mm 80x20 80x25 80x32 80x40 80x50 80x65 100x25 100x32
Dim.
(mm)		 A 52 51 55 58 64 72 56 60
Size Inch 4x11/2 4x2 4x21/2 4x3
mm 100x40 100x50 100x65 100x80
Dim.
(mm)		 A 61 70 78 84

Eco Friendly Reducing Tee Pipe Fitting , 223 Black Iron Side Outlet Tee For Steam Pipe
