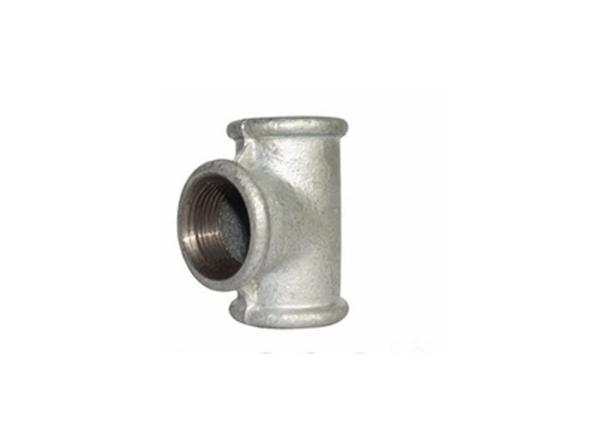

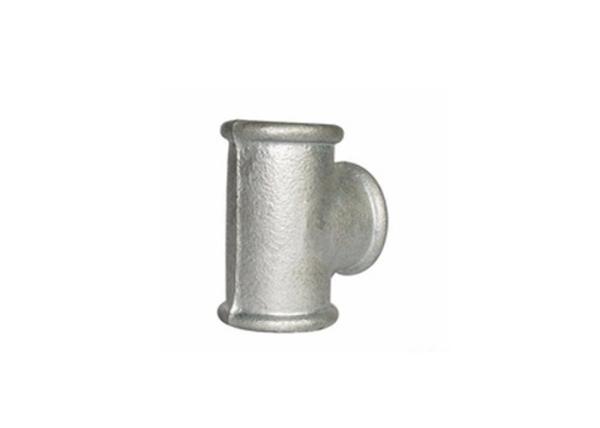

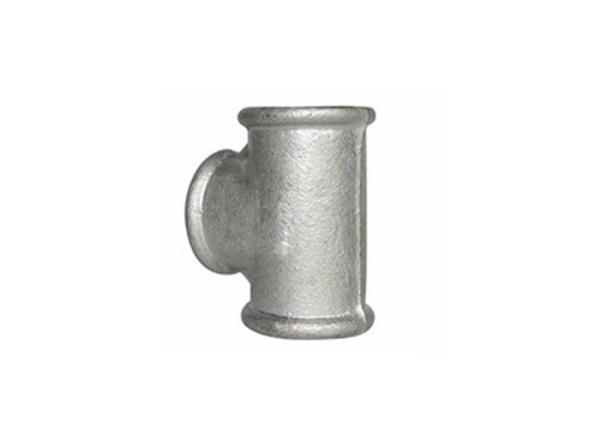

Malleable Iron Pipe Fitting American Standard 150psi Galvanized/Black Reducing Tee
Malleable Iron Pipe Fitting American Standard 150psi Galvanized/Black Reducing Tee
Malleable Iron Pipe Fitting American Standard 150psi Galvanized/Black Reducing Tee
Malleable Iron Pipe Fitting American Standard 150psi Galvanized/Black Reducing Tee
Malleable Iron Pipe Fitting American Standard 150psi Galvanized/Black Reducing Tee
Malleable Iron Pipe Fitting American Standard 150psi Galvanized/Black Reducing Tee
Specifications
Brand Name :
leyon
Model Number :
DIN Standard Quick Connect Tees
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Specification :
Elbow, socket, Tee, Union, Bushing, Plug
Item :
11/2x3/4 inch DIN Standard Quick Connect Tees
Application :
Steam, air, gas and oil pipes
Surface treatment :
Hot dipped galvanized and cold galvanized
Treaded :
ISO7/1, DIN2999,NPT
Size :
11/2x3/4 inch
Dimensions :
38 mm
Description

DIN Standard Quick Connect Banded 90 China Supplier Banded Tees

Over 30 years, Leyon dedicates itself to providing DIN Standard Quick Connect Tees for global clients in malleable cast iron field. Depend upon the collaborations with world top manufactures on high-end products application, Leyon could provide professional solutions for particular projects amid special construction environment.

Attribute definition list of DIN Standard Quick Connect Tees
Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4
mm 6 8 10 15 20 25 32
Dim.
(mm)		 A 19 21 25 28 33 38 45
Size Inch 3/8X1/4 1/2X1/4 1/2X3/8 3/4X1/4 3/4X1/8
mm 10X8 15X8 15x10 20x8 20X10
Dim.
(mm)		 A 23 24 26 26 28

Size Inch 3/4x1/2 1x1/4 1x3/8 1x1/2 1x3/4
mm 20x15 25x8 25x10 25x15 25x20
Dim.
(mm)		 A 30 28 30 32 35
Size Inch 11/4x3/8 11/4x1/2 11/4x3/4 11/4x1 11/2x1/2
mm 32x10 32x15 32x20 32x25 40x15
Dim.
(mm)		 A 32 34 36 40 36

Size Inch 11/2x3/4 11/2x1 11/2x11/4 2x1/2 2x3/4
mm 40x20 40x25 40x32 50x15 50x20
Dim.
(mm)		 A 38 42 46 38 40
Size Inch 2x1 2x11/4 2x11/2 21/2x1/2 21/2x3/4
mm 50x25 50x32 50x40 65x15 65x20
Dim.
(mm)		 A 44 48 52 46 49

Angular deviations :

National standards allow for a range of angular deviations, but this deviation is within the range of plus or minus 0.5 °.

Size standard :

Our products are fit to the national standard .

Weight standard:

Until now , there is no weight standard to the pipe fitting .

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements

Delivery details

 According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

A&Q

A: How to create long using life ?

Q: DIN Standard Quick Connect Tees have very good toughness, to make sure the long working life .

A. What's the size range ?

Q. Outlet range of DIN Standard Quick Connect Tees are from 1/8”~8”.

A.What about accurate thread ?

Q.Strictly control the size of the thread, to ensure accuracy.

A.How to annealing ?

Q.Strict annealing process to DIN Standard Quick Connect Tees causes suitable physical properties.

A.Which kind of technology they use?

Q.We use the most advanced metallurgical technology and precision machining to produce DIN Standard Quick Connect Tees.
