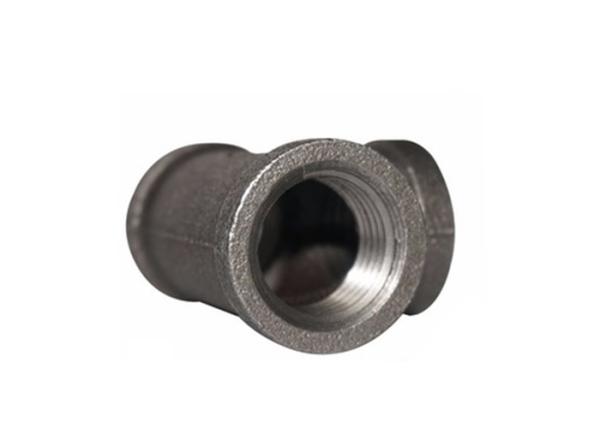

Small Conduit Tee Fitting , Forged Butt Weld Tee Compression Pipe Fittings
Small Conduit Tee Fitting , Forged Butt Weld Tee Compression Pipe Fittings
Small Conduit Tee Fitting , Forged Butt Weld Tee Compression Pipe Fittings
Small Conduit Tee Fitting , Forged Butt Weld Tee Compression Pipe Fittings
Small Conduit Tee Fitting , Forged Butt Weld Tee Compression Pipe Fittings
Small Conduit Tee Fitting , Forged Butt Weld Tee Compression Pipe Fittings
Specifications
Brand Name :
leyon
Model Number :
forged tee pipe fitting
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Material :
Iron
Item :
1/4 inch forged tee pipe fitting
Specification :
Elbow, socket, Tee, Union, Bushing, Plug
Connection :
Female forged tee pipe fitting
technology :
advanced metallurgical and processing
Treaded :
ISO7/1, DIN2999,NPT
Size :
1/4 inch
Dimensions :
8 mm
Description

Attribute definition list of forged tee pipe fitting ​:

· Material: malleable iron

· Technics: casing

· Type: Malleable Iron Tee

· Connection:male&female

· Head Shape: Equal

· Code: Round

· size:1/8"-8"

· Standard: ANSI, BS, DIN

· Packing: wooden cases or as customers' demands

· surfacetreatment:painting galvaized or as customers' demands

Info of forged tee pipe fitting

The company Leyon is one of the forged tee pipe fitting manufacturers over 30 years. The factory core culture is regarding create best quality products .

Tabular form of forged tee pipe fitting

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
mm 6 8 10 15 20 25 32 40
Dim.
(mm)		 A 17.5 20.6 24.1 28.5 33.3 38.1 44.5 49.3
Size Inch 2 21/2 3 4 5 6 8
mm 50 65 80 100 125 150 200
Dim.
(mm)		 A 57.2 68.6 78.2 96.3 114.3 130.3 162

Blast-Furnace smelting + electric furnace adjustment duplex smelting technology, 48 hours – 3 sections –electric annealing technology, comprehensively ensure our products’ quality to be the best .

Take “six check + two inspect +one examine” measures, using Germany made FOUNDRY-MASTER Xline to check each pack of liquid iron’s chemical composition , ensure low defect rate and stable product quality .

Carefully choose multiple vendors, using high quality raw material , remove all the impurities which is bad product quality control

advanced metallurgy and processing control forged tee pipe fitting butt-welding tee joint

Small Conduit Tee Fitting , Forged Butt Weld Tee Compression Pipe Fittings

Describe of DIN standard quick connect tees

Material

 Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa

Type

 Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL

Application

 Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available

Package

 Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements

Delivery details

 According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
