Lightweight Natural Gas Pipe Fittings Socket Weld Reducers 15mm BS Standard
Lightweight Natural Gas Pipe Fittings Socket Weld Reducers 15mm BS Standard
Lightweight Natural Gas Pipe Fittings Socket Weld Reducers 15mm BS Standard
Lightweight Natural Gas Pipe Fittings Socket Weld Reducers 15mm BS Standard
Lightweight Natural Gas Pipe Fittings Socket Weld Reducers 15mm BS Standard
Lightweight Natural Gas Pipe Fittings Socket Weld Reducers 15mm BS Standard
Specifications
Brand Name :
kanaifu
Model Number :
female socket light fittings and sockets
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Color :
Galvanized & black
Meterial :
Malleable iron
Connection :
Male, Female
Size :
1/2 inch , 15mm
Standard :
ANSI,BS,DIN
Head Code :
Square
Surface treatment :
Hot Galvanized
Name :
female socket light fittings and sockets
Description

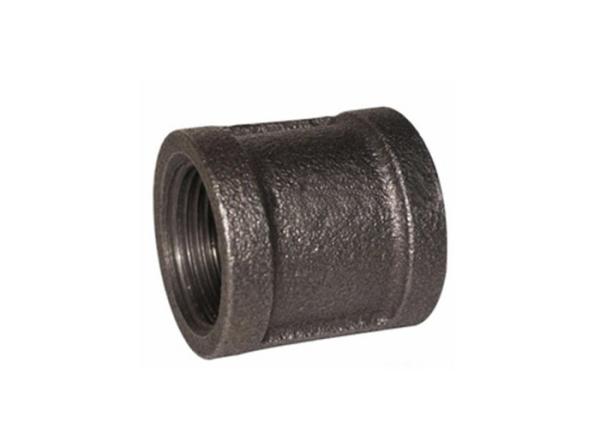

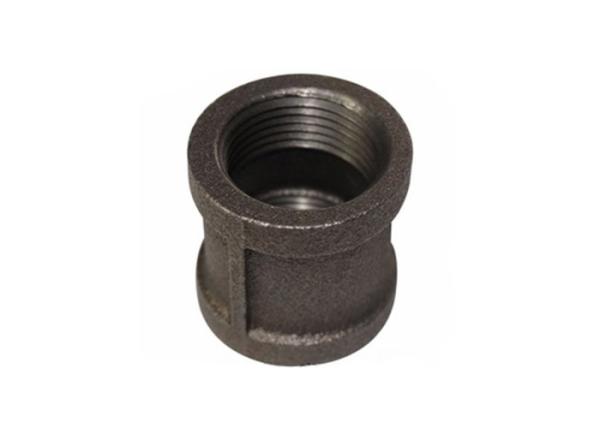

Female Socket Malleable Iron Socket Light Fittings And Sockets

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

Top 7 points of female socket light fittings and sockets

  1. Our zinc coating standard is ahead of ASME, EN, and BS, DIN and so on.
  2. The equipments from DISA Denmark, DJ AMF Japan, SINTOKOGIO Japan widely used in our female socket light fittings and sockets product line, ensures the stability and sockets quality.
  3. No sand hole on the smooth surface .
  4. Strong tenacity brings long service life.
  5. The spectrometer is an indispensable analytical instrument on analyzing and sockets material.

  6. In order to improve material physical characteristics, we set a higher heating value gas furnace to control the annealing process strictly.

  7. Strictly control the calibers of the thread, parallelism, Angle, tooth type, each live over a plug gauge for testing.

The usage of malleable cast iron pipe fitting

  • Fire pipe installation
  • Gas pipeline installation
  • Central air conditioning pipeline installation
  • Other machinery and equipment installation

Size selection of female socket light fittings and sockets

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4
mm 6 8 10 15 20 25 32
Dim.
(mm)		 A 24.2 26.9 29.5 34.0 38.6 42.4 49.0
Size Inch 11/2 2 21/2 3 4 5 6
mm 40 50 65 80 100 125 150
Dim.
(mm)		 A 54.6 64.3 73.2 80.8 93.7 95 105

Lightweight Natural Gas Pipe Fittings Socket Weld Reducers 15mm BS Standard
