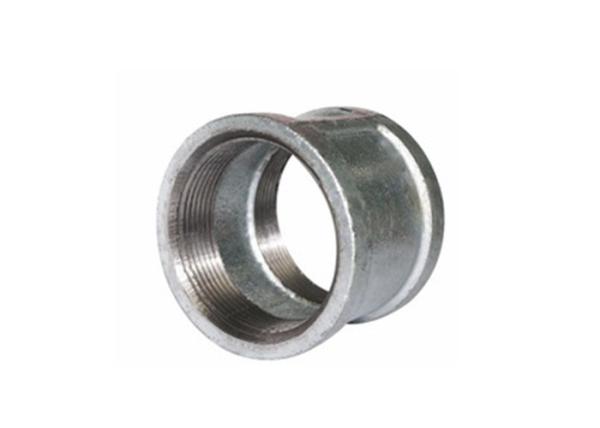

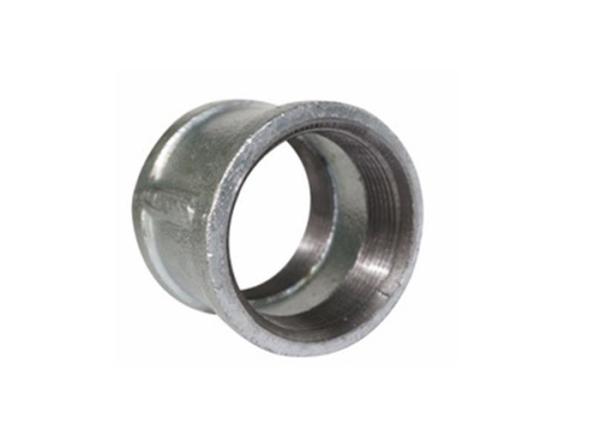

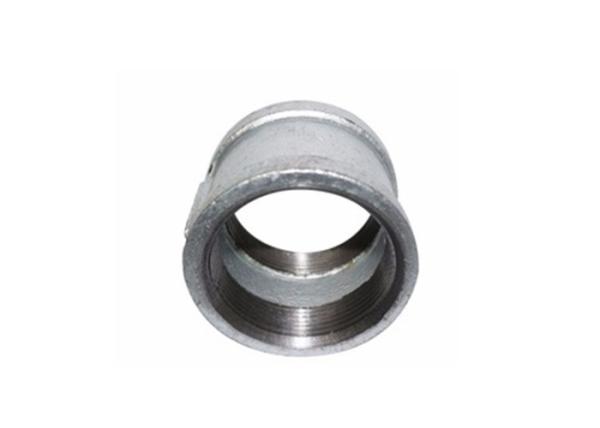

Customized Size Threaded Plumbing Pipe Fittings , Union Socket Fitting 2.5Mpa
Customized Size Threaded Plumbing Pipe Fittings , Union Socket Fitting 2.5Mpa
Customized Size Threaded Plumbing Pipe Fittings , Union Socket Fitting 2.5Mpa
Customized Size Threaded Plumbing Pipe Fittings , Union Socket Fitting 2.5Mpa
Customized Size Threaded Plumbing Pipe Fittings , Union Socket Fitting 2.5Mpa
Customized Size Threaded Plumbing Pipe Fittings , Union Socket Fitting 2.5Mpa
Specifications
Brand Name :
kanaif
Model Number :
Customized stardard Malleable Iron Pipe Fittings Socket
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Color :
Galvanized & black
Meterial :
Malleable iron
Technics :
Casting
Size :
1/8"6“
Standard :
ANSI,BS,DIN
Testing pressure :
2.5Mpa
Surface treatment :
Hot Galvanized
Type :
Customized stardard Malleable Iron Pipe Fittings Socket
Description

Size chart of Customized stardard Malleable Iron Pipe Fittings Socket

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4
mm 6 8 10 15 20 25 32
Dim.
(mm)		 A 24.2 26.9 29.5 34.0 38.6 42.4 49.0
Size Inch 11/2 2 21/2 3 4 5 6
mm 40 50 65 80 100 125 150
Dim.
(mm)		 A 54.6 64.3 73.2 80.8 93.7 95 105

What's the cast iron ?

The term ‘cast iron’ represents a large family of ferrous alloys. Cast irons are multi-component ferrous alloys, which solidify with a eutectic. The major elements of cast irons are iron, carbon (2 % or more), silicon (1 % to 3 %), minor elements (less than 0.1 %), and often alloying elements (less than 0.1%). Cast iron has higher carbon and silicon contents than steel. The structure of cast iron displays a richer carbon phase than that of steel because of its higher carbon content. Cast iron can solidify according to the thermodynamically metastable Fe-Fe3C (iron carbide) system or the stable iron-graphite system depending principally on composition, cooling rate, and melt treatment.

Cast iron in its basic form is a brittle material which has a very little impact strength. It has a little or practically no toughness when compared to low carbon steels. It has a fraction of the tensile strength of low carbon steels. When a cast iron piece fails it does not deform in a noticeable way and appears to snap apart or break in a manner consistent with a snap. ​

Synoptic table of Customized stardard Malleable Iron Pipe Fittings Socket

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

Customized Size Threaded Plumbing Pipe Fittings , Union Socket Fitting 2.5Mpa
