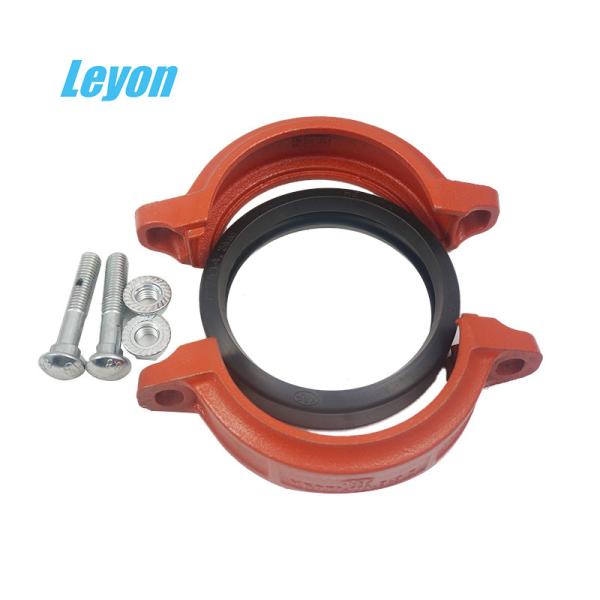

Grooved Rigid/Flexible Coupling Fire Fighting Grooved Fittings DN50 - DN200 Ductile Iron Pipe Fittings
Grooved Rigid/Flexible Coupling Fire Fighting Grooved Fittings DN50 - DN200 Ductile Iron Pipe Fittings
Grooved Rigid/Flexible Coupling Fire Fighting Grooved Fittings DN50 - DN200 Ductile Iron Pipe Fittings
Grooved Rigid/Flexible Coupling Fire Fighting Grooved Fittings DN50 - DN200 Ductile Iron Pipe Fittings
Specifications
Brand Name :
Leyon
MOQ :
50piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
100piece/carton
Model Number :
1N
Certification :
FM/UL
Place of Origin :
China
material :
ASTM A536
size available :
2"-24"
surface treatment :
painted/electroplated/black/epoxy/hot-dip galvanized
certificate :
UL/FM approved
application :
fire protection,water supply, pulp transportation,etc.
specification :
grooved elbow, grooved tee, grooved cross, grooved coupling, etc.
Description

Fire Protection Groove Lock Pipe Fittings , Groove Lock Coupling GB7306 Thread

Nominal
Size
mm/in		 Pipe
O.D.
mm/in		 Working
Pressure
PSI/Mpa		 Dimensions
 Bolt/Nut Certificate
L
mm/in		 X
mm/in		 Y
mm/in		 NO-Size
mm
50
2		 60.3
2.375		 362.5
2.5		 82.2
3.236		 122
4.803		 44.1
1.736		 10x55-2 3C UL FM
65
21/2		 76.1
3.000		 362.5
2.5		 97.2
3.827		 141.2
5.559		 45
1.772		 10x55-2 3C UL FM
80
3		 88.9
3.500		 362.5
2.5		 109.4
4.307		 152.5
6.004		 44.9
1.768		 10x55-2 3C UL FM
100
4		 108.0
4.5		 362.5
2.5		 130.6
5.142		 178.2
7.016		 47.1
1.854		 12x65-2 3C UL FM
100
4		 114.3
4.5		 362.5
2.5		 137.4
5.409		 187.5
7.382		 46.2
1.819		 12x65-2 3C UL FM
125
5		 133.0
5.250		 362.5
2.5		 157.8
6.213		 208.6
8.213		 46.6
1.835		 12x70-2 3C UL FM
125
5		 139.7
5.250		 362.5
2.5		 158.06
6.223		 216
8.504		 49.6
1.953		 12x70-2 3C UL FM
150
6		 159.0
6.500		 362.5
2.5		 173.2
6.819		 230.3
9.067		 50.0
1.969		 12x70-2 3C UL FM
150
6		 165.1
6.500		 362.5
2.5		 191.6
7.543		 242.1
9.532		 48.7
1.917		 12x70-2 3C UL FM
200
8		 219.1
8.625		 362.5
2.5		 248.4
9.780		 314.3
12.374		 58.5
2.303		 16x95-2 3C UL FM
250
10		 273.0
10.750		 362.5
2.5		 318
12.52		 410
16.14		 63
2.48		 20x120 3C UL FM
300
12		 323.9
12.750		 362.5
2.5		 370
14.57		 465
18.30		 63
2.48		 20x140 3C UL FM

1.We use Oxford Instruments spectrometer to check the chemical composition for every heat, components conform to the requirements of the

process before the iron.

2. Each casting ladle pouring tap on a block, tapping experiment was carried out, judge the inoculation

3. Ball reaction after strict control of pouring time, must complete pouring in 9 minutes, use time alarm system, overtime alarm, to prevent a

spheroidizing recession phenomenon

4. Strictly control the size of the groove, ensure compliance with standards

5. EPDM seal USES the domestic first-class manufacturer, has excellent weather resistance, ozone resistance, heat resistance, acid and alkali

resistance, water vapor, color stability, electronic, oily and normal temperature liquid filling.

6. Grooved fittings surface coating epoxy resin, improve the ability to resist corrosion

7. Is advantageous to the construction safety, the system stability is good, easy maintenance

8. Each furnace batch has the traceability

9. The pipe fittings have outlets ranging from 1” through 24”

Material Ductile lron
Standard ASTM A536 Gr.65—45—12 EN1563.JIS G5502
Physical property Tensile strength>=310Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Surface painted
Color red, blue, white
Model Ductile iron grooved pipe fittings (Rigid coupling,45°elbows,grooved pipe fitting 90°elbows,reducing tee,grooved cross,flange coupling,cap ect.)
Connection Female, welding, flange
Shape Equal, reducing
Certificate FM,UL BSI,ANSI,ISO9001, 3C
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
