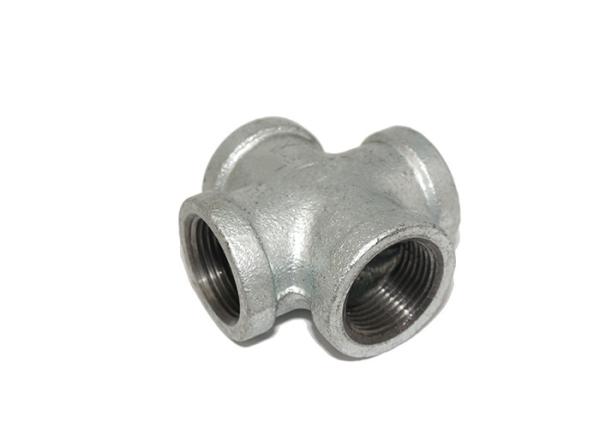

Lightweight 80mm Natural Gas Pipe Fittings , Black Iron Cross Fitting FM Certificated
Lightweight 80mm Natural Gas Pipe Fittings , Black Iron Cross Fitting FM Certificated
Lightweight 80mm Natural Gas Pipe Fittings , Black Iron Cross Fitting FM Certificated
Lightweight 80mm Natural Gas Pipe Fittings , Black Iron Cross Fitting FM Certificated
Lightweight 80mm Natural Gas Pipe Fittings , Black Iron Cross Fitting FM Certificated
Lightweight 80mm Natural Gas Pipe Fittings , Black Iron Cross Fitting FM Certificated
Specifications
Brand Name :
kanaif
Model Number :
galvanized crosses fittings
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Color :
Galvanized & black
Treaded :
ISO7/1, DIN2999,NPT
Application :
Steam, air, gas and oil pipes
Standard :
ANSI,BS,DIN
surface treatment :
Hot galvanized
Size :
3 inch 80mm
Head Code :
Square
Item :
3 inch galvanized crosses fittings
Description

There are several types of malleable cast iron.

Black heart malleable cast iron is mainly used to produce the iron casting parts with impact, shake or torsion functions. Normally used to produce rear axle housing castings, spring bracket, low pressure valve body, pipe fittings, tools and wrenches. Black heart malleable cast iron is also called as ferritic malleable cast iron.

Pearlite malleable cast iron has higher strength, hardness and abrasive resistance. So, it is mainly used to produce the abrasion resistant parts for motive power machinery and agricultural machinery.

Parameter table of Malleable Iron Pipe Fitting Crosses

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

Size Selection Of Galvanized Pipe Fitting Cross

Size Inch 1/8 1/4 3/8 1/2 3/4 1
mm 6 8 10 15 20 25
Dim.
(mm)		 A 17.5 20.6 24.1 28.5 33.3 38.1
Size Inch 11/4 11/2 2 21/2 3 4
mm 32 40 50 65 80 100
Dim.
(mm)		 A 44.5 49.3 57.2 68.6 78.2 96.3

Galvanized Crosses Malleable Iron Pipe Fittings With FM/UL Certificate​

Focus on galvanized crosses fittings , expert in service, Leyon is an excellent malleable cast iron solutions provider. Possessing the diversity of products and steady relationships with dozens of top suppliers in crosses industry, we could make suitable entire solutions for projects classified by their applications as follow--oil and gas. Thanks for all of our clients, your trust drives us to overcome millions of difficulties and achieve today’s success.
