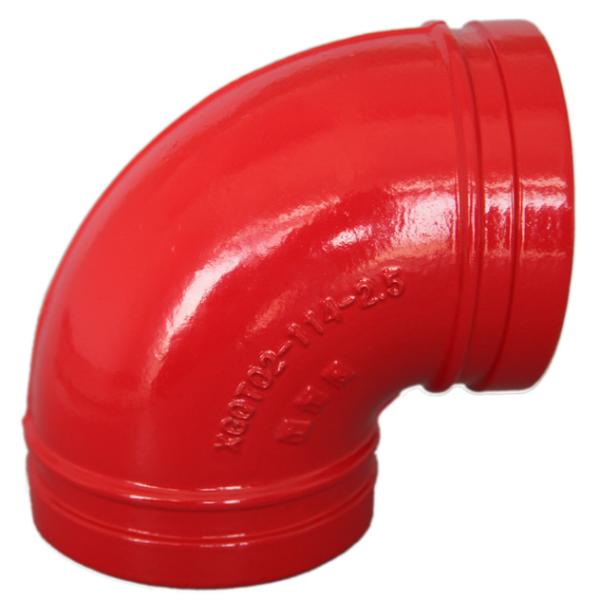

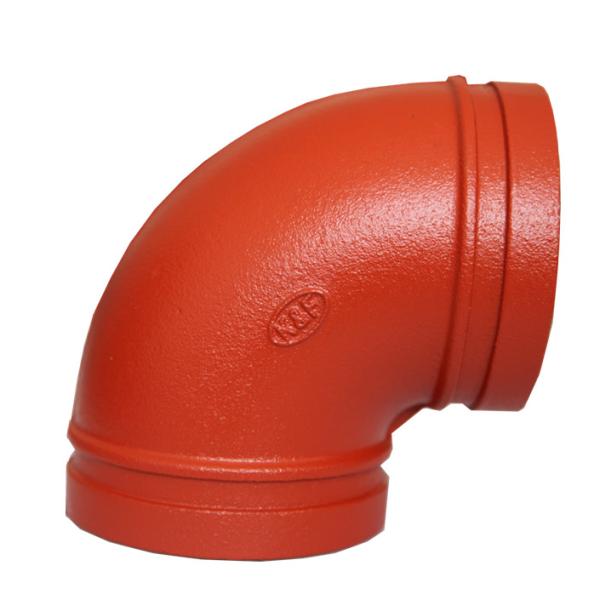

Heavy Ductile Iron Grooved Pipe Fittings 90 Degree Pipe Elbow Electroplated Surface
Heavy Ductile Iron Grooved Pipe Fittings 90 Degree Pipe Elbow Electroplated Surface
Heavy Ductile Iron Grooved Pipe Fittings 90 Degree Pipe Elbow Electroplated Surface
Heavy Ductile Iron Grooved Pipe Fittings 90 Degree Pipe Elbow Electroplated Surface
Heavy Ductile Iron Grooved Pipe Fittings 90 Degree Pipe Elbow Electroplated Surface
Heavy Ductile Iron Grooved Pipe Fittings 90 Degree Pipe Elbow Electroplated Surface
Specifications
Brand Name :
kanaifu
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Model Number :
figure number 90
Certification :
FM/UL
material :
ASTM A536
threads :
ASME B1.20.1, iso7-1,GB7306
size available :
1"-24"
surface treatment :
painted/electroplated/black/epoxy/hot-dip galvanized
certificate :
UL/FM approved
application :
fire protection,water supply, pulp transportation,etc.
specification :
grooved elbow, grooved tee, grooved cross, grooved coupling, etc.
Description

Nominal
Size
mm/in		 Pipe
O.D.
mm/in		 Working
Pressure
PSI/Mpa		 Dimensions
L
mm/in		 Certificate
50
2		 60.3
2.375		 362.5
2.5		 65
2.559		 3C UL FM
65
21/2		 76.1
3.000		 362.5
2.5		 72.6
2.858		 3C UL FM
80
3		 88.9
3.500		 362.5
2.5		 80.2
3.157		 3C UL FM
100
4		 108.0
4.5		 362.5
2.5		 95.5
3.760		 3C UL FM
100
4		 114.3
4.5		 362.5
2.5		 98.2
3.866		 3C UL FM
125
5		 133.0
5.250		 362.5
2.5		 105
4.134		 3C UL FM
125
5		 139.7
5.250		 362.5
2.5		 110
4.331		 3C UL FM
150
6		 159.0
6.250		 362.5
2.5		 122.3
4.815		 3C UL FM
150
6		 165.1
6.500		 362.5
2.5		 128.9
5.075		 3C UL FM
150
6		 168.3
6.625		 362.5
2.5		 128.9
5.075

3C UL FM
200
8		 219.1
8.625		 362.5
2.5		 166.7
6.563		 3C UL FM
250
10		 273.0
10.750		 362.5
2.5		 204.5
8.051		 3C UL FM

1. We use Oxford Instruments spectrometer to check the chemical composition for every heat, components conform to the requirements of the

process before the iron.

2. Each casting ladle pouring tap on a block, tapping experiment was carried out, judge the inoculation

3. Ball reaction after strict control of pouring time, must complete pouring in 9 minutes, use time alarm system, overtime alarm, to prevent a

spheroidizing recession phenomenon

4. Strictly control the size of the groove, ensure compliance with standards

5.Grooved fittings surface coating epoxy resin, improve the ability to resist corrosion

6. Is advantageous to the construction safety, the system stability is good, easy maintenance

7. Each furnace batch has the traceability

8.The pipe fittings have outlets ranging from 1” through 24”

Material Ductile lron
Standard ASTM A536 Gr.65—45—12 EN1563.JIS G5502
Physical property Tensile strength>=310Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Surface painted
Color red, blue, white
Model Ductile iron grooved pipe fittings (Rigid coupling,45°elbows,grooved pipe fitting 90°elbows,reducing tee,grooved cross,flange coupling,cap ect.)
Connection Female, welding, flange
Shape Equal, reducing
Certificate FM,UL BSI,ANSI,ISO9001, 3C
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

Heavy Ductile Iron Grooved Pipe Fittings 90 Degree Pipe Elbow Electroplated Surface
