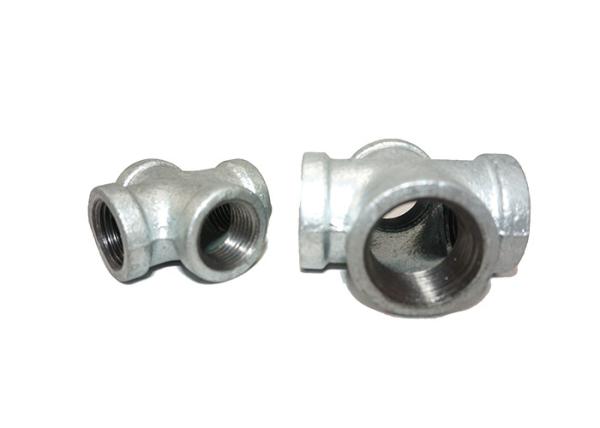

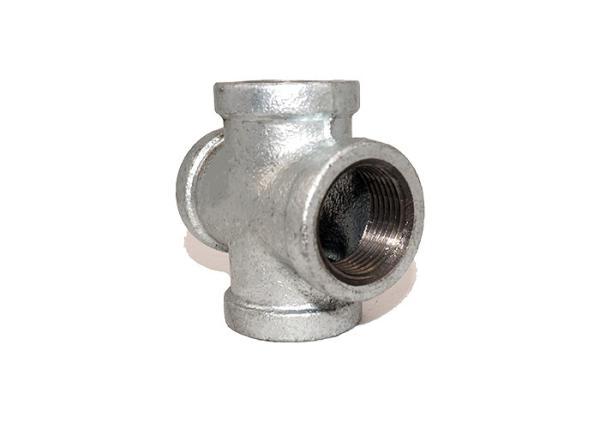

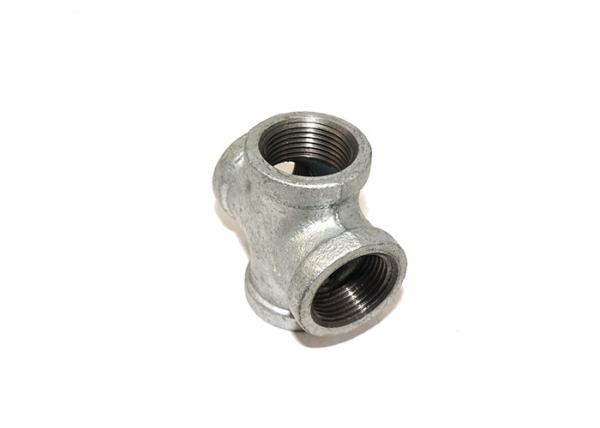

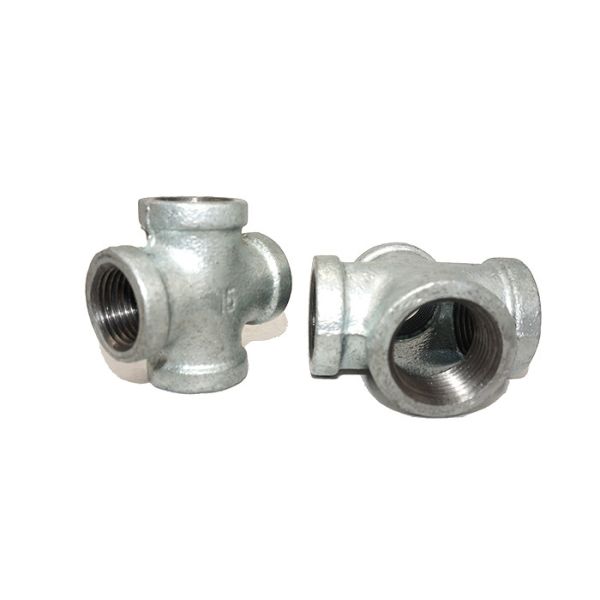

Male / Female Plumbing Pipe Fittings DIN Standard No.180 Crosses Pond Pipe Fitting
Male / Female Plumbing Pipe Fittings DIN Standard No.180 Crosses Pond Pipe Fitting
Male / Female Plumbing Pipe Fittings DIN Standard No.180 Crosses Pond Pipe Fitting
Male / Female Plumbing Pipe Fittings DIN Standard No.180 Crosses Pond Pipe Fitting
Male / Female Plumbing Pipe Fittings DIN Standard No.180 Crosses Pond Pipe Fitting
Male / Female Plumbing Pipe Fittings DIN Standard No.180 Crosses Pond Pipe Fitting
Specifications
Brand Name :
kanaif
Model Number :
No.180 crosses
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Color :
Galvanized & black
material :
malleable iron
Certificate :
BSI,ANAB,ISO9001,FM,UL
Standard :
ANSI,BS,DIN
surface treatment :
Hot galvanized
Size :
11/2 inch 40mm
Connection :
Male, Female
Item :
No.180 crosses
Description

Graph of No.180 crosses

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

No.180 Crosses Malleable Iron Pipe Fitting Cross Forged Screw

Leyon is 30 years old , bend itself tosupply experience and knowledge to provide No.180 crosses solutions for No.180 crossescustomers,in different places in No.180 crosses domain. Leyon could offer speciality No.180 crosses help for outstanding projects amid special construction surroundings just depend upon the consociation with world top No.180 crosses makers on high-end No.180 crosses products application.

Correlation table of No.180 crosses

Size Inch 1/8 1/4 3/8 1/2 3/4 1
mm 6 8 10 15 20 25
Dim.
(mm)		 A 17.5 20.6 24.1 28.5 33.3 38.1
Size Inch 11/4 11/2 2 21/2 3 4
mm 32 40 50 65 80 100
Dim.
(mm)		 A 44.5 49.3 57.2 68.6 78.2 96.3

Important informations of No.180 crosses

  1. The full automatic produce-lines we introduced from DISA Denmark, DJ and SINTOKOGIO Japan have been a great improvement on No.180 crosses.

  2. The spectrometer of Oxford Instruments we bought for analyzing the quality of No.180 crosses samples.

  3. Higher heating value gas annealing furnace plays a decisive role on improving material physical characteristics.

  4. Each No.180 crosses after air tightness test, ensure no leakage.

  5. Outlet size of No.180 crosses is from 1/8”to 4” .

  6. Strong tenacity brings long service life of No.180 crosses.

  7. No any pore discovered on surface.

  8. avg. Thickness of zinc coating is higher than 86 um specified in ASME, EN(70um), DIN(70um), SI(78um).
