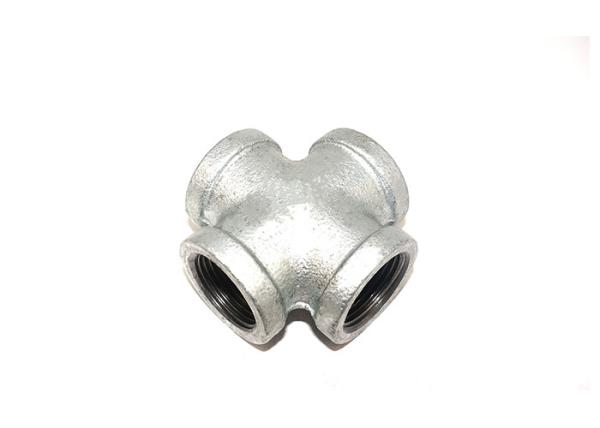

Galvanized Plumbing Pipe Fittings , 3 4 Black Pipe Cross Tube Connector
Galvanized Plumbing Pipe Fittings , 3 4 Black Pipe Cross Tube Connector
Galvanized Plumbing Pipe Fittings , 3 4 Black Pipe Cross Tube Connector
Galvanized Plumbing Pipe Fittings , 3 4 Black Pipe Cross Tube Connector
Galvanized Plumbing Pipe Fittings , 3 4 Black Pipe Cross Tube Connector
Galvanized Plumbing Pipe Fittings , 3 4 Black Pipe Cross Tube Connector
Specifications
Brand Name :
kanaif
Model Number :
Pipe Fitting Cross Banded Reducing 90
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Color :
Galvanized & black
material :
malleable iron
Technics :
Casting
Standard :
ANSI,BS,DIN
surface treatment :
Hot galvanized
Size :
1/2 inch 15mm
Type :
Pipe Fitting Cross Banded Reducing 90
Description

Interpolation table of Pipe Fitting Cross Banded Reducing 90

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

Customized Malleable Iron Pipe Fitting Cross Banded Reducing 90

Leyon is 30 years old , devote itself to offering Pipe Fitting Cross Banded Reducing 90 solutions for global guests in energy transportation and storage field. Depend upon the collaborations with world top Pipe Fitting Cross Banded Reducing 90 manufactures on high-end Pipe Fitting Cross Banded Reducing 90 products application, Leyon could provide professional Pipe Fitting Cross Banded Reducing 90 solutions for unique projects amid special construction place.

Outline of Pipe Fitting Cross Banded Reducing 90

Size Inch 1/8 1/4 3/8 1/2 3/4 1
mm 6 8 10 15 20 25
Dim.
(mm)		 A 17.5 20.6 24.1 28.5 33.3 38.1
Size Inch 11/4 11/2 2 21/2 3 4
mm 32 40 50 65 80 100
Dim.
(mm)		 A 44.5 49.3 57.2 68.6 78.2 96.3

Main point of Pipe Fitting Cross Banded Reducing 90

  • In order to ensure the quality of Pipe Fitting Cross Banded Reducing 90, we introduced the full automatic produce-lines from DISA Denmark, DJ and SINTOKOGIO Japan.

  • The spectrometer of Oxford Instruments we bought for analyzing the quality of Pipe Fitting Cross Banded Reducing 90 .

  • In order to improve material physical characteristics, we set a higher heating value gas furnace to control the annealing process of Pipe Fitting Cross Banded Reducing 90 strictly.

  • Each Pipe Fitting Cross Banded Reducing 90 after air tightness test, ensure no leakage.

  • Pipe outlet dimension of Pipe Fitting Cross Banded Reducing 90 is from 1/8 "~4".

  • Pipe Fitting Cross Banded Reducing 90 have Good toughness with long working life.

  • Smooth surface of Pipe Fitting Cross Banded Reducing 90, no sand hole.

  • The layer of zinc exceeds the standard of ASME, EN, and BS, DIN and so on.
