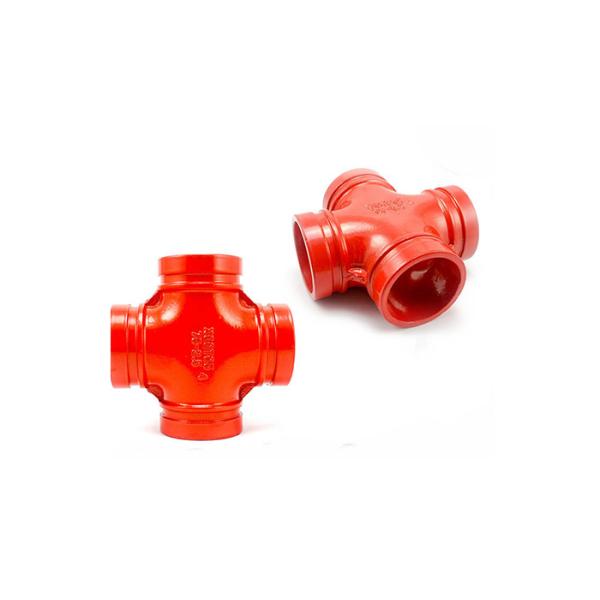

Fireproof Ductile Iron Grooved Pipe Fittings 3 Inch Ductile Iron Pipe Cross
Fireproof Ductile Iron Grooved Pipe Fittings 3 Inch Ductile Iron Pipe Cross
Fireproof Ductile Iron Grooved Pipe Fittings 3 Inch Ductile Iron Pipe Cross
Fireproof Ductile Iron Grooved Pipe Fittings 3 Inch Ductile Iron Pipe Cross
Fireproof Ductile Iron Grooved Pipe Fittings 3 Inch Ductile Iron Pipe Cross
Fireproof Ductile Iron Grooved Pipe Fittings 3 Inch Ductile Iron Pipe Cross
Specifications
Brand Name :
leyon
Model Number :
figure number 180
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Type :
cross
Application :
Steam, air, gas and oil pipes
size :
customized
Technics :
casing
certificate :
UL/FM approved
Product name :
grooved cross fitting
name :
3 inch ductile iron pipe pricing
item :
top quality grooved cross
Description

Top quality grooved cross 3 inch ductile iron pipe pricing grooved cross fitting

Short Description

Grooved fittings provide an economical and efficient methods of

changing direction, adding and outlet, reducing, or capping piping systems.

Grooved fittings are available in ductile iron or fabricated steel as indicated.

1. We use Oxford Instruments spectrometer to check the chemical composition for every heat

to meet the requirements.

2. Each casting ladle pouring tap on a block, tapping experiment was carried out, judge the inoculation

3. Ball reaction after strict control of pouring time, must complete pouring in 9 minutes

4.Strictly control the size of the groove, ensure compliance with standards

5. Grooved fittings surface coating epoxy resin, improve the ability to resist corrosion

Leyon is always focusing on research and development of malleable iron fittings, grooved fittings.

Grooved couplings, tubing, valves, which mainly applied in such industries as fire protection, water supply, construction industries, municipal engineering and petrochemical.

Currently leyon is one of largest pipe fittings manufacturers in the China, and dedicates to provide secure, reliable and cost effective pipe fittings, with large production capacity, superior quality, strong R&D strength and first class service.

Size sheet of 3 inch ductile iron pipe pricing

Nominal
Size
mm/in		 Pipe
O.D.
mm/in		 Working
Pressure
PSI/Mpa		 Dimensions
L
mm/in		 Certificate
65
21/2		 76.1
3.000		 362.5
2.5		 76.25
3		 3C UL FM
80
3		 88.9
3.500		 362.5
2.5		 82.5
3.248		 3C UL FM
100
4		 114.3
4.5		 362.5
2.5		 92.5
3.642		 3C UL FM
125
5		 139.7
5.250		 362.5
2.5		 110
4.33		 3C UL FM
150
6		 165.1
6.500		 362.5
2.5		 122.5
4.883		 3C UL FM
200
8		 219.1
8.625		 362.5
2.5		 164
6.457		 3C UL FM

Main points of 3 inch ductile iron pipe pricing

Material Ductile lron
Standard ASTM A536 Gr.65—45—12 EN1563.JIS G5502
Physical property Tensile strength>=310Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Surface painted
Color red, blue, white
Model Ductile iron grooved pipe fittings (Rigid coupling,45°elbows,grooved pipe fitting 90°elbows,reducing tee,grooved cross,flange coupling,cap ect.)
Connection Female, welding, flange
Shape Equal, reducing
Certificate FM,UL BSI,ANSI,ISO9001, 3C
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

Fireproof Ductile Iron Grooved Pipe Fittings 3 Inch Ductile Iron Pipe Cross
