Medium Ductile Iron Coupling , Reducing Cross Pipe Fitting Shock Absorption
Medium Ductile Iron Coupling , Reducing Cross Pipe Fitting Shock Absorption
Medium Ductile Iron Coupling , Reducing Cross Pipe Fitting Shock Absorption
Medium Ductile Iron Coupling , Reducing Cross Pipe Fitting Shock Absorption
Medium Ductile Iron Coupling , Reducing Cross Pipe Fitting Shock Absorption
Medium Ductile Iron Coupling , Reducing Cross Pipe Fitting Shock Absorption
Medium Ductile Iron Coupling , Reducing Cross Pipe Fitting Shock Absorption
Medium Ductile Iron Coupling , Reducing Cross Pipe Fitting Shock Absorption
Specifications
Brand Name :
leyon
Model Number :
figure number 180
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
material :
ductile iron
Application :
Steam, air, gas and oil pipes
size :
customized
surface treatment :
painted/electroplated/black/epoxy/hot-dip galvanized
certificate :
UL/FM approved
Product name :
grooved cross pipe fitting
name :
UL / FM Ductile Iron fitting
item :
cast iron threaded fitting ul fm
Description

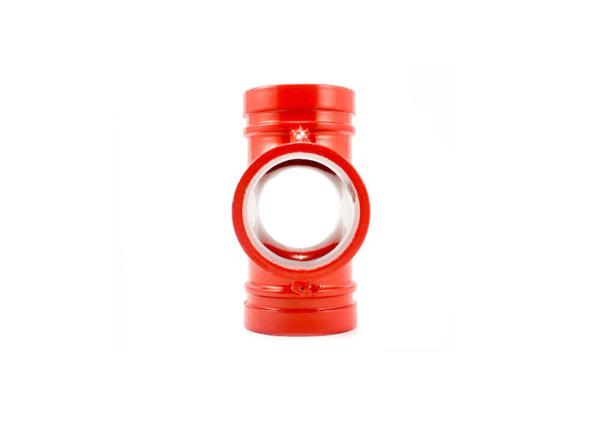

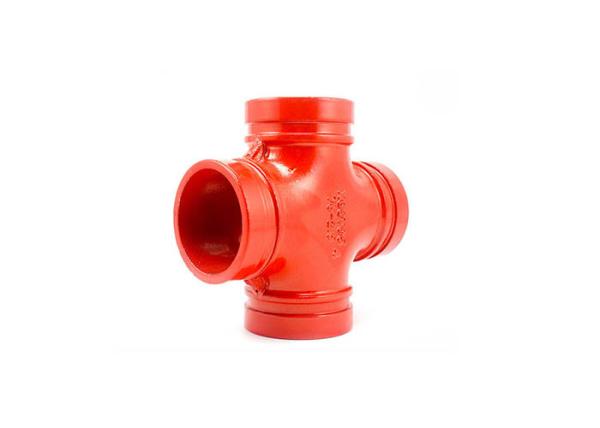

cast iron threaded fitting ul fm ductile Iron grooved cross pipe fitting

Key Points of grooved cross pipe fitting

1) Material: ductile cast iron ASTM-A536

2) Reducing installation costs

3) Flexibility and rigidity

4) Joint reliability

5) Isolate noise and vibration

6) Convenient joint

7) We have pressure testing machine to test the quality

8) Smooth mouth without burr

9) Wall thickness uniformity

Our advantages:

1. Globally acceptabe quality: The products offered by us are thoroughly examined by

our experienced professionals to ensure their durability, reliability and long service life.

2. Competitive price: direct manufacturer, reducing all unnecessary cost for you.

3. Professional team:20 years foreign customers service experience. Over 10 years investment

casting manufacture. Almost 35% high educated people.

4. Good service: Customer is first

From cable protection, water supply, fire protection and mine industry ,

leyon casting grooved products are designed to withstand the most rugged applications

while providing durable and easy installation, and ultimately,

saving time and money on any project requiring grooved pipe fittings

Size of grooved cross pipe fitting

Nominal
Size
mm/in		 Pipe
O.D.
mm/in		 Working
Pressure
PSI/Mpa		 Dimensions
L
mm/in		 Certificate
65
21/2		 76.1
3.000		 362.5
2.5		 76.25
3		 3C UL FM
80
3		 88.9
3.500		 362.5
2.5		 82.5
3.248		 3C UL FM
100
4		 114.3
4.5		 362.5
2.5		 92.5
3.642		 3C UL FM
125
5		 139.7
5.250		 362.5
2.5		 110
4.33		 3C UL FM
150
6		 165.1
6.500		 362.5
2.5		 122.5
4.883		 3C UL FM
200
8		 219.1
8.625		 362.5
2.5		 164
6.457		 3C UL FM

Details of grooved cross pipe fitting

Material Ductile lron
Standard ASTM A536 Gr.65—45—12 EN1563.JIS G5502
Physical property Tensile strength>=310Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Surface painted
Color red, blue, white
Model Ductile iron grooved pipe fittings (Rigid coupling,45°elbows,grooved pipe fitting 90°elbows,reducing tee,grooved cross,flange coupling,cap ect.)
Connection Female, welding, flange
Shape Equal, reducing
Certificate FM,UL BSI,ANSI,ISO9001, 3C
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
