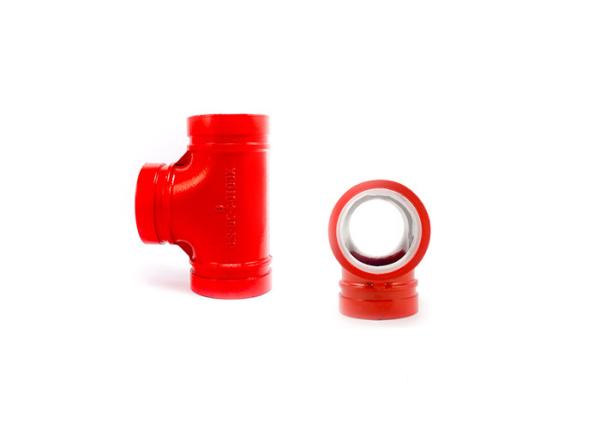

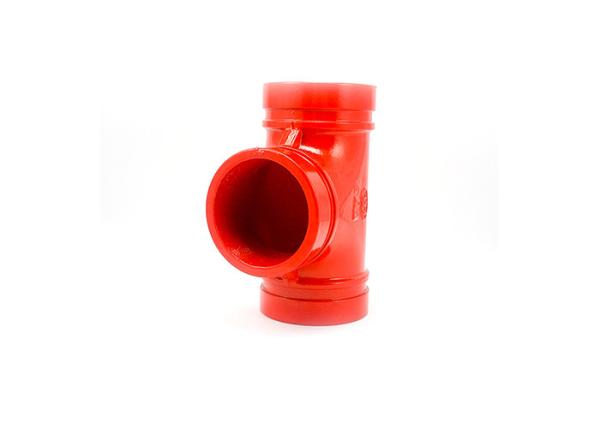

Red Epoxy Ductile Iron Grooved Pipe Fittings Grooved Mechanical Tee 1 - 24
Red Epoxy Ductile Iron Grooved Pipe Fittings Grooved Mechanical Tee 1 - 24
Red Epoxy Ductile Iron Grooved Pipe Fittings Grooved Mechanical Tee 1 - 24
Red Epoxy Ductile Iron Grooved Pipe Fittings Grooved Mechanical Tee 1 - 24
Red Epoxy Ductile Iron Grooved Pipe Fittings Grooved Mechanical Tee 1 - 24
Red Epoxy Ductile Iron Grooved Pipe Fittings Grooved Mechanical Tee 1 - 24
Specifications
Brand Name :
leyon
Model Number :
figure number 130
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Type :
tee
Connection :
female
size available :
1"-24"
product name :
fm&ul grooved fittings
certificate :
UL/FM approved
name :
grooved connection
item :
grooved pipe fittings tee
Description

Epoxy grooved connection pipe fittings tee fm&ul grooved fittings

Our production Line

We are the well-know manufacturer in the fitting industry with

the most compete range of products, supplying malleable iron fittings,

grooved fittings, valves, cast iron fittings, ductile iron fittings,

steel pipe nipplesand couplings, stainless steel pipe fittings,ect.

Futures for fm&ul grooved fittings

Sizes---Customized sized

Color----Red/Orange/Blue/White/Grey etc.

Certifications---FM/UL/ISO9001/CE certifications

Surface Treatment---Expoxy/Painted/Galvanized

1. Each casting ladle pouring tap on a block, tapping experiment was carried out, judge the inoculation

2. Ball reaction after strict control of pouring time, must complete pouring in 9 minutes,

use time alarm system, overtime alarm, to prevent a

spheroidizing recession phenomenon

3. Strictly control the size of the groove, ensure compliance with standards

4. Grooved fittings surface coating epoxy resin, improve the ability to resist corrosion

Is advantageous to the construction safety, the system stability is good, easy maintenance

Each furnace batch has the traceability


Standard for grooved connection

Nominal
Size
mm/in		 Pipe
O.D.
mm/in		 Working
Pressure
PSI/Mpa		 Dimensions
L
mm/in		 Certificate
50
2		 60.3
2.375		 362.5
2.5		 68.5
2.697		 3C UL FM
65
21/2		 76.1
3.000		 362.5
2.5		 76
2.992		 3C UL FM
80
3		 88.9
3.500		 362.5
2.5		 82.5
3.248		 3C UL FM
100
4		 108.0
4.5		 362.5
2.5		 93.5
3.681		 3C UL FM
100
4		 114.3
4.5		 362.5
2.5		 98
3.858		 3C UL FM
125
5		 133.0
5.250		 362.5
2.5		 106.5
4.193		 3C UL FM
125
5		 139.7
5.250		 362.5
2.5		 113
4.449		 3C UL FM
150
6		 159.0
6.500		 362.5
2.5		 123.5
4.862		 3C UL FM
150
6		 165.1
6.500		 362.5
2.5		 131
5.157		 3C UL FM
200
8		 219.1
8.625		 362.5
2.5		 164
6.457		 3C UL FM
250
10		 273.0
10.750		 362.5
2.5		 205
8.061		 3C UL FM


Sepcification for grooved connection

Material Ductile lron
Standard ASTM A536 Gr.65—45—12 EN1563.JIS G5502
Physical property Tensile strength>=310Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Surface painted
Color red, blue, white
Model Ductile iron grooved pipe fittings (Rigid coupling,45°elbows,grooved pipe fitting 90°elbows,reducing tee,grooved cross,flange coupling,cap ect.)
Connection Female, welding, flange
Shape Equal, reducing
Certificate FM,UL BSI,ANSI,ISO9001, 3C
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
