Galvanized 3 Inch En 10242 Sanitary Pipe Fittings
Galvanized 3 Inch En 10242 Sanitary Pipe Fittings
Galvanized 3 Inch En 10242 Sanitary Pipe Fittings
Galvanized 3 Inch En 10242 Sanitary Pipe Fittings
Specifications
Brand Name :
leyon
Model Number :
92/90/180/220/240
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Product Name :

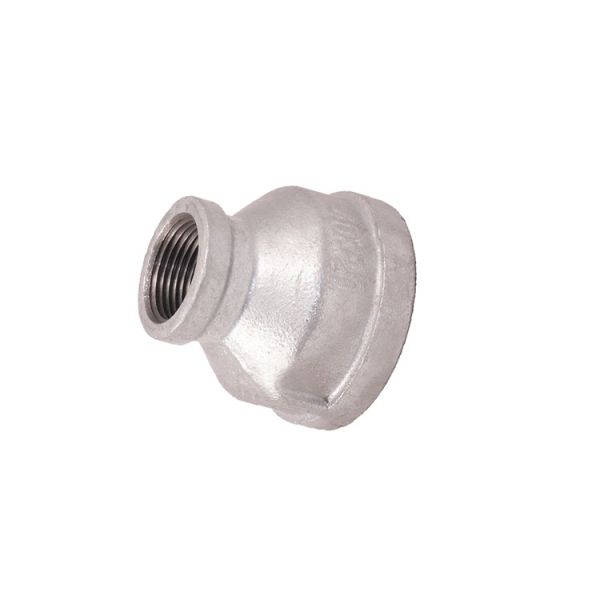

gi malleable iron reducing socket
Sizes :
1/8~ 4 inch
Certificate :
BSI,ANAB,ISO9001
Material :
malleable iron
Standard :
ANSI,BS,DIN
Head Code :
Square
Color :
white/balck
Package :
standard exporting box
Application :
Steam, air, gas and oil pipes
Description

3 inch en 10242 sanitary pipe fittings galvanized malleable iron pipe fittings

LEYON'S information:

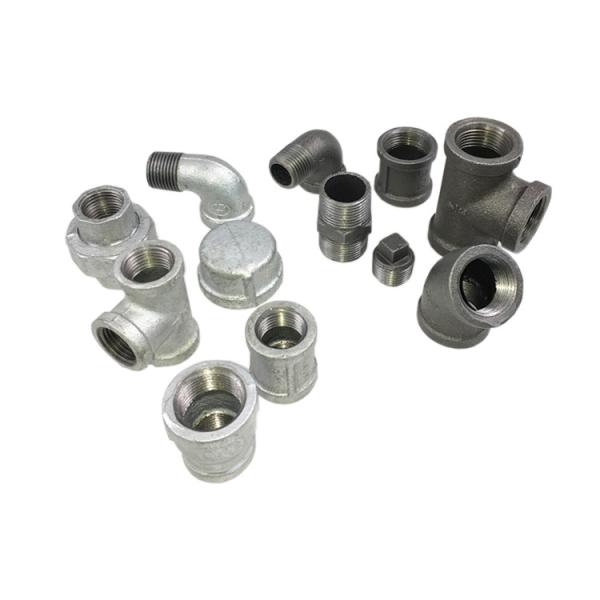

We are the well-know manufacturer in the fitting industry with the most compete range of products, supplying malleable iron fittings, grooved fittings, valves, cast iron fittings, ductile iron fittings, steel pipe nipplesand couplings, stainless steel pipe fittings,ect.

Production Processing for malleable pipe fittings

Thread processed is exactly based on ASME EN BS DIN standard requirements,

so that make every thread of malleable pipe fittings can be matched easily.

Favorable tenacity,long service life for malleable pipe fittings

Smooth surface without any sand hole on malleable pipe fittings

zinc coating’s average thickness of malleable pipe fittings

is higher than 86 um, which is specified in ASME, EN(70um), DIN(70um) and SI(78um).

Pipe fittings size of malleable pipe fittings from 1/8 "to 8".

The Attribute definition list

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
mm 6 8 10 15 20 25 32 40
Dim.
(mm)		 A 19 21 25 28 33 38 45 50
Size Inch 2 21/2 3 4 5 6 　
mm 50 65 80 100 125 150 　
Dim.
(mm)		 A 50 69 78 96 115 1301 　

Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
mm 10X8 15X8 15X10 20X10 20X15
Dim.
(mm)		 A 23 26 26 28 30
B 23 26 26 28 31
Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
mm 25X15 25X20 32X15 32X20 32x25
Dim.
(mm)		 A 32 35 34 36 40
B 34 36 38 41 42

Size Inch 11/2X1/2 11/2x3/4 11/2x1 11/2x11/4 2x1/2
mm 40X15 15X8 40X25 40X32 50X15
Dim.
(mm)		 A 36 39 42 46 38
B 42 44 46 28 48
Size Inch 2x3/4 2x1 2x11/4 2x11/2 21/2x1
mm 50X20 50X25 50X32 50X40 65x25
Dim.
(mm)		 A 40 44 56 52 56
B 50 52 58 55 63

Size Inch 21/2X11/2 3x21/2 21/2x2 3x11/2
mm 65X40 80X65 65X50 80X40
Dim.
(mm)		 A 64 82 61 58
B 69 85 66 72
Size Inch 3x2 4x21/2 4X3
mm 80X50 100X65 100X80
Dim.
(mm)		 A 73 78 84
B 78 90 92


Material: iron
Technics: Casting
Type: galvanized cast iron pipe fittings

  • Connection: Female
  • Shape: Equal
  • Usage: Jointing Pipe Lines
  • Thread: ISO 7/1
  • Standard: ANSI,BS,DIN,EN
  • Surface treatment: Hot Dipped Galvanized
  • Size: 1/8"~4"
  • ​Type: galvanized cast iron pipe fittings
