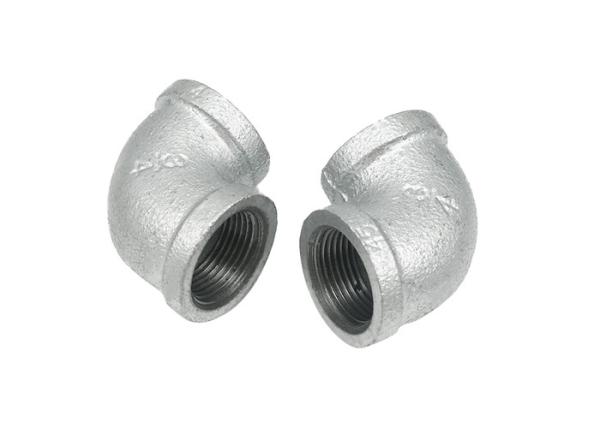

Silver Color Metal Pipe Connectors 1 Inch Galvanized Pipe Fittings For Steam Pipes
Silver Color Metal Pipe Connectors 1 Inch Galvanized Pipe Fittings For Steam Pipes
Specifications
Brand Name :
leyon
Model Number :
90
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Product Name :
hot dipped gi 90 degree elbow
Size :
3/8~ 4 inch
Certificates :
BSI,ANAB,ISO9001
Color :
white
Item No. :
90
Application :
Steam, air, gas, oil pipes
MOQ :
100pcs
Standard :
ANSI,BS,DIN
Material :
malleable cast iron
Package :
cutomized color design box
Description

metal pipe connectors 1 inch galvanized pipe fittings Malleable Iron Elbow

Leyon is Top 3 pipe fittings manufacturers in the world,it known as “China malleable” for more than 24 years.

Leyon is always focusing on research and development of malleable iron fittings, grooved fittings,tubing and valves that are mainly applied in such industries as fire protection, water supply, construction industry, municipal engineering and petrochemical.

Quick Details


Material: iron
Technics: Casting
Type: galvanized cast iron pipe fittings

  • Connection: Female
  • Shape: Equal
  • Usage: Jointing Pipe Lines
  • Thread: ISO 7/1
  • Standard: ANSI,BS,DIN,EN
  • Surface treatment: Hot Dipped Galvanized
  • Size: 1/8"~4"
  • ​Type: galvanized cast iron pipe fittings

The Attribute definition list

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
mm 6 8 10 15 20 25 32 40
Dim.
(mm)		 A 19 21 25 28 33 38 45 50
Size Inch 2 21/2 3 4 5 6 　
mm 50 65 80 100 125 150 　
Dim.
(mm)		 A 50 69 78 96 115 1301 　

Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
mm 10X8 15X8 15X10 20X10 20X15
Dim.
(mm)		 A 23 26 26 28 30
B 23 26 26 28 31
Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
mm 25X15 25X20 32X15 32X20 32x25
Dim.
(mm)		 A 32 35 34 36 40
B 34 36 38 41 42

Size Inch 11/2X1/2 11/2x3/4 11/2x1 11/2x11/4 2x1/2
mm 40X15 15X8 40X25 40X32 50X15
Dim.
(mm)		 A 36 39 42 46 38
B 42 44 46 28 48
Size Inch 2x3/4 2x1 2x11/4 2x11/2 21/2x1
mm 50X20 50X25 50X32 50X40 65x25
Dim.
(mm)		 A 40 44 56 52 56
B 50 52 58 55 63

Size Inch 21/2X11/2 3x21/2 21/2x2 3x11/2
mm 65X40 80X65 65X50 80X40
Dim.
(mm)		 A 64 82 61 58
B 69 85 66 72
Size Inch 3x2 4x21/2 4X3
mm 80X50 100X65 100X80
Dim.
(mm)		 A 73 78 84
B 78 90 92

Packaging& Shipping of galvanized malleable cast iron pipe fittings

Material Malleable iron
Standard Thread: ISO 7/1
Dimension: ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded wihtout ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
