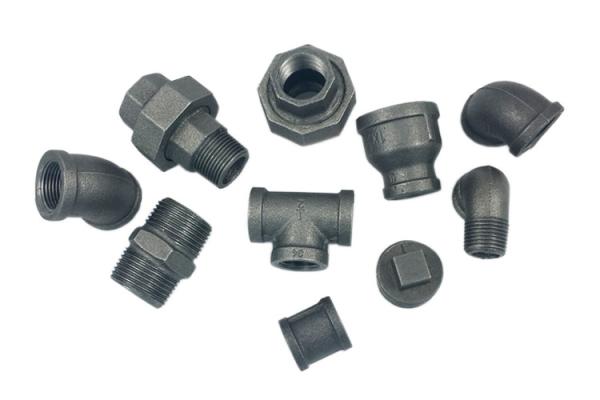

High Precision Malleable Iron Pipe Fittings 1/2 Inch Galvanized Pipe Connectors
High Precision Malleable Iron Pipe Fittings 1/2 Inch Galvanized Pipe Connectors
High Precision Malleable Iron Pipe Fittings 1/2 Inch Galvanized Pipe Connectors
High Precision Malleable Iron Pipe Fittings 1/2 Inch Galvanized Pipe Connectors
Specifications
Brand Name :
leyon
Model Number :
92/90/180/220/240
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Product Name :
galvanized malleable iron pipe fitting
Certificate :
BSI,ANAB,ISO9001
Standard :
ANSI,BS,DIN
Material :
malleable iron
Color :
white/balck
Sizes :
3/8~ 4 inch
Head Code :
Square
Application :
Steam, air, gas and oil pipes
Package :
standard exporting box
Description

black iron plumbing fittings 1/2 inch galvanized pipe connectors Malleable Iron Pipe Fittings

The products includes: malleable pipe fitting, ductile iron groove pipe fitting, ductile iron threaded pipe fittings, carbon steel threaded pipe fittings, clamps, pipe nipple , Stainless steel pipe fittings, stainless steel valve.

they are widely used the pipe systems of nuclear power plants, power station, water, natural gas, petrochemical, oilfields, fire-fighting, ship buildings, engineering fields and construction industry.

Up till now, there are 80,000 square meters of workshops and a plural of modern production lines in our factory.

The Attribute definition list

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
mm 6 8 10 15 20 25 32 40
Dim.
(mm)		 A 19 21 25 28 33 38 45 50
Size Inch 2 21/2 3 4 5 6 　
mm 50 65 80 100 125 150 　
Dim.
(mm)		 A 50 69 78 96 115 1301 　

Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
mm 10X8 15X8 15X10 20X10 20X15
Dim.
(mm)		 A 23 26 26 28 30
B 23 26 26 28 31
Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
mm 25X15 25X20 32X15 32X20 32x25
Dim.
(mm)		 A 32 35 34 36 40
B 34 36 38 41 42

Size Inch 11/2X1/2 11/2x3/4 11/2x1 11/2x11/4 2x1/2
mm 40X15 15X8 40X25 40X32 50X15
Dim.
(mm)		 A 36 39 42 46 38
B 42 44 46 28 48
Size Inch 2x3/4 2x1 2x11/4 2x11/2 21/2x1
mm 50X20 50X25 50X32 50X40 65x25
Dim.
(mm)		 A 40 44 56 52 56
B 50 52 58 55 63

Size Inch 21/2X11/2 3x21/2 21/2x2 3x11/2
mm 65X40 80X65 65X50 80X40
Dim.
(mm)		 A 64 82 61 58
B 69 85 66 72
Size Inch 3x2 4x21/2 4X3
mm 80X50 100X65 100X80
Dim.
(mm)		 A 73 78 84
B 78 90 92

Material: Malleable Iron

StandardThread: BSPT(ISO 7/1),NPT(ANSI B1.20.1)

Dimension: ASME B16.3,ASME B16.14,ASME B16.39,BS EN 10242,BS143,BS1256, ISO 49,DIN 2985

Head shape: Beaded or Banded


Connection: Male,Female threaded

Shape: Equal,Reducing

What’s the different of ductile iron , gray iron and malleable cast iron ?

The characteristic of ductile iron is very tough, graphite is in the form of a ball.

The feature of gray iron is very brittle , graphite is in the form of strip .

The particularity of malleable cast iron is graphite is a group of flocculent tiles .

So the ductile iron is hardest , malleable cast iron is harder than gray iron .

Why the the toughness of them is different ?

The big reason is time of annealing . If it annealing long time , then the cost also is higher and the quality also is better .
