High Precision Malleable Iron Pipe Fittings En 10242 Waste Pipe Fittings
High Precision Malleable Iron Pipe Fittings En 10242 Waste Pipe Fittings
Specifications
Brand Name :
leyon
Model Number :
92/90/180/220/240
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Product Names :
gi malleable iron pipe fitting
Standard :
ANSI,BS,DIN
Sizes :
3/8~ 4 inch
Head Code :
Square
Material :
MI
Certificates :
BSI,ANAB,ISO9001
Package :
standard exporting box
Color :
white/balck
Applications :
Steam, air, gas and oil pipes
Description

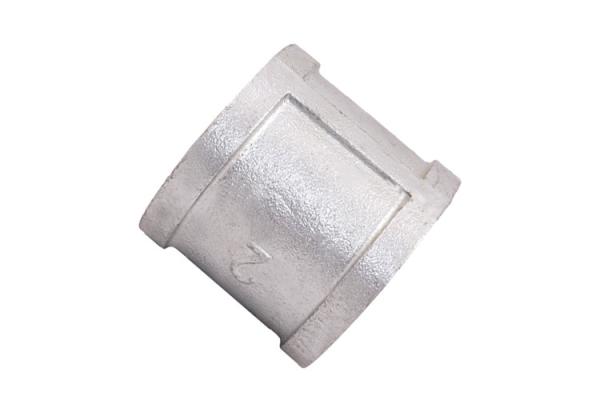

1/2 inch 3/4 inch en 10242 threaded cast iron pipe fittings Malleable Iron socket

Leyon piping system co.,ltd ,who specialized in piping fittings more than 24 years,and built long term cooperation with more than 90 countries customers,our products main applications are : plumbing,water supplying for drinking water and fire fighting etc.

Leyon delivers fitting pipe socket for every commercial and mechanical application. We have commodities available in different dimension, substantial and structure.

The Attribute definition list

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
mm 6 8 10 15 20 25 32 40
Dim.
(mm)		 A 19 21 25 28 33 38 45 50
Size Inch 2 21/2 3 4 5 6 　
mm 50 65 80 100 125 150 　
Dim.
(mm)		 A 50 69 78 96 115 1301 　

Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
mm 10X8 15X8 15X10 20X10 20X15
Dim.
(mm)		 A 23 26 26 28 30
B 23 26 26 28 31
Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
mm 25X15 25X20 32X15 32X20 32x25
Dim.
(mm)		 A 32 35 34 36 40
B 34 36 38 41 42

Size Inch 11/2X1/2 11/2x3/4 11/2x1 11/2x11/4 2x1/2
mm 40X15 15X8 40X25 40X32 50X15
Dim.
(mm)		 A 36 39 42 46 38
B 42 44 46 28 48
Size Inch 2x3/4 2x1 2x11/4 2x11/2 21/2x1
mm 50X20 50X25 50X32 50X40 65x25
Dim.
(mm)		 A 40 44 56 52 56
B 50 52 58 55 63

Size Inch 21/2X11/2 3x21/2 21/2x2 3x11/2
mm 65X40 80X65 65X50 80X40
Dim.
(mm)		 A 64 82 61 58
B 69 85 66 72
Size Inch 3x2 4x21/2 4X3
mm 80X50 100X65 100X80
Dim.
(mm)		 A 73 78 84
B 78 90 92

Quick Details


Material: iron
Technics: Casting
Type: galvanized cast iron pipe fittings

  • Connection: Female
  • Shape: Equal
  • Usage: Jointing Pipe Lines
  • Thread: ISO 7/1
  • Standard: ANSI,BS,DIN,EN
  • Surface treatment: Hot Dipped Galvanized
  • Size: 1/8"~4"
  • ​Type: galvanized cast iron pipe fittings

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements

Delivery details

 According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
