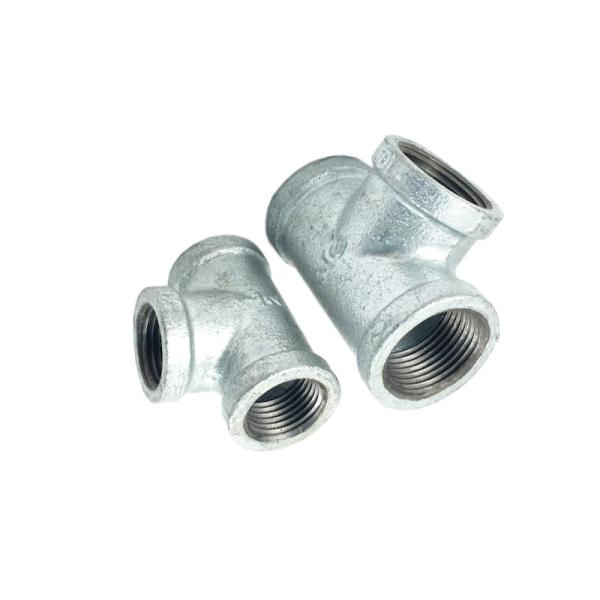

3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type
3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type
3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type
3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type
3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type
3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type
Specifications
Brand Name :
leyon
Model Number :
130 GI
Certification :
FM, UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
D/A, D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
9000tons/year
Delivery Time :
25-35days
Packaging Details :
carton
product name :
malleable cast iron pipe fitting tee
connection :
thread
usage :
plumbing,water pipe, oil pipe
Application :
Suitable for water ,steam ,air ,gas,oil etc
size :
1/4" - 6"
thread :
ISO7/1, DIN2999,NPT,bspt
Surface :
Hot Dip Galvanized
Description
DINMENSION STANDARDS
BS21:1985 for BS pipe fittings
ANSI/ASME B1 20.1-1983 for American standard pipe fittings
DIN 2950/1692/2999 for DIN pipe fittings
MECHANICAL PROPERTIES
Tensile strength ≥330Mpa
Bending strength ≥ 520Mpa
Shearing strength ≥284Mpa
Elongating rate ≥8%
Hardness ≤HB150
HYDRAULIC TEST
Test pressure:2.5Mpa
Working pressure:1.6Mpa
CHEMICAL COMPOSITIONS
C:2.6%-2.8% Si:1.5%-1.8%
Mn:0.55%-0.7% S:0.25%-0.3%



EN 10242 Standard 3/4 inch GI Equal Tee Beaded Type Pipe Fittings water oil and gas fire fighting

Specification for malleable cast iron pipe fitting
Product: elbows, tees, sockets, bends, nipples, unions, crosses, plugs, crosses over, round caps, etc.
Size: 1/8" -6"
Thread: BS ANSI & DIN
Surface treatment: Black, Eclectic Galvanized, Hot Dipped Galvanized, all be antirust treatment.
Packing: Cartons, wooden boxes
Application: Suitable for joining pipe lines of team, gas, oil, air.


Characteristics of malleable cast iron pipe fitting

Material Malleable iron
Standard Thread: ISO 7/1
Dimension: ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded wihtout ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
