30Mbps Digital Wireless Video Transmitter Unmanned System For Unmanned Excavators
30Mbps Digital Wireless Video Transmitter Unmanned System For Unmanned Excavators
30Mbps Digital Wireless Video Transmitter Unmanned System For Unmanned Excavators
30Mbps Digital Wireless Video Transmitter Unmanned System For Unmanned Excavators
30Mbps Digital Wireless Video Transmitter Unmanned System For Unmanned Excavators
30Mbps Digital Wireless Video Transmitter Unmanned System For Unmanned Excavators
Specifications
Brand Name :
IWAVE
Model Number :
FDM-615PTM
Certification :
CE, MIC
Place of Origin :
China
MOQ :
2units
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T
Supply Ability :
500000/month
Delivery Time :
5-8work days
Packaging Details :
Standard Carton Box
Name :
Wireless Digital Video Transmitter For Unmanned Excavators
Range :
1-10km(ground to ground)
Network :
Point to Multiple Point
Node :
One master Node supports 32 slave node
Delay :
15-25ms
Data Rate :
30Mbps
Weight :
305g
Size :
150*68*30mm
Description

Wireless Digital Video Transmitter For Unmanned Excavators

Description

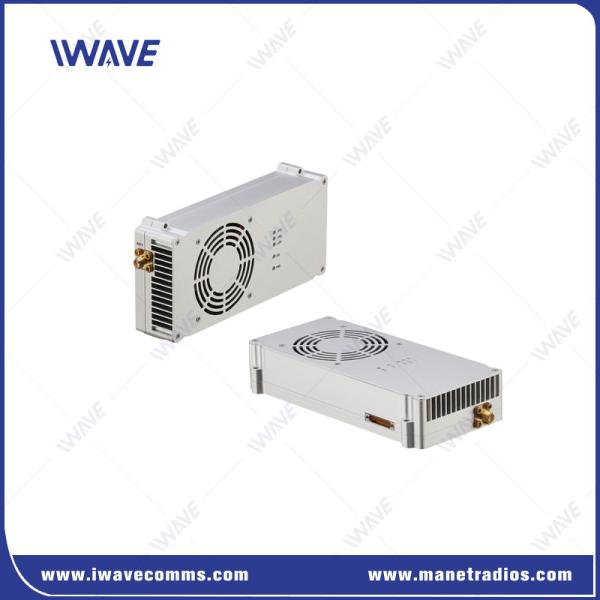

The FDM-615PTM is an advanced wireless communication module leveraging Frequency Hopping Spread Spectrum (FHSS) technology for superior immunity to noise and interference. It delivers reliable, long-distance, full-duplex Ethernet/serial communication in a compact and robust form factor, making it ideal for micro unmanned platforms.

The FDM-615PTM is the ultimate solution for secure, high-quality wireless communication on micro unmanned platforms, offering reliability, versatility, and performance for critical operations.


Key Features

  • Multiple bandwidth option 1.4Mhz/3Mhz/5Mhz/10Mhz/20Mhz

  • High Transmitting RF power: 40dBm

  • Light weight: 280g

  • 800Mhz/1.4Ghz/2.4Ghz frequency options

  • Automatically power control according to the real time signal quality

  • 3* Ethernet Port support TCPIP and UDP and other IP based devices to connect with

30Mbps Digital Wireless Video Transmitter Unmanned System For Unmanned Excavators



Key Features:

  • Robust Long-Range Communication

    Offers clear and stable NLOS video transmission with a range of 1-10 km for ground-to-ground applications.

  • Encrypted Transmission

    Adopts AES128 encryption to protect video feeds from unauthorized access or interception.

  • Compact and Lightweight Design

    Weighing just 280g, it is perfect for integration into small unmanned platforms while offering 10 watts transmitting power.

  • Plug and Play

    Simplifies deployment with a user-friendly setup process, eliminating the need for complex binding procedures.

  • Dynamic Frequency and Power Control

    Automatically adjusts frequency selection and transmitting power based on RF environment conditions to minimize interference and optimize performance.

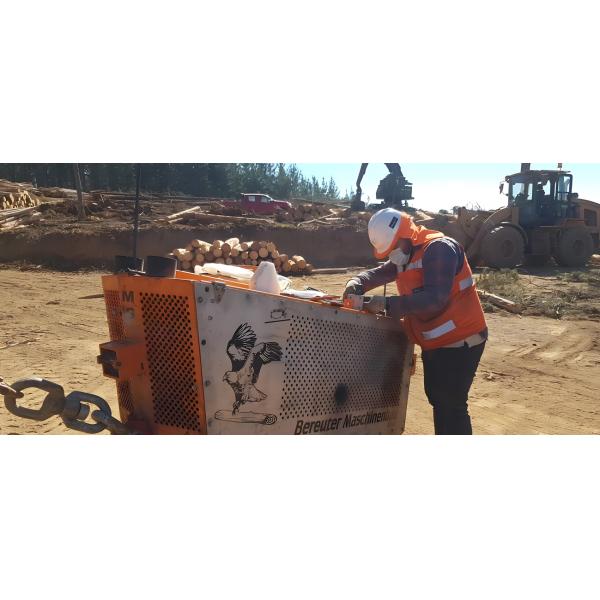

Application

  • Autonomous Unmanned Platforms

    Designed for unmanned excavators, tractors, cranes, robots, and vehicles, ensuring reliable video and telemetry communications.

  • Industrial and Tactical Operations

    Supports operations in harsh RF environments, including urban, forested, and mountainous areas.

  • OEM Integration

    Provides an API document and strong R&D support for OEMs to facilitate secondary development and seamless integration.

30Mbps Digital Wireless Video Transmitter Unmanned System For Unmanned Excavators

Specification

GENERAL
Technology Wireless based on TD-LTE Technology Standards
Encryption ZUC/SNOW3G/AES(128) OptionalLayer-2
Data Rate 30Mbps(Uplink and Downlink)
Range 100km-150km(air to ground)
Capacity 32Nodes
NLOS Range 5-10km nlos ground to ground
RF Power 10Watts
Latency End to End: 60ms-80ms
Modulation QPSK, 16QAM, 64QAM
Anti-jamming Automatically frequency hopping
Bandwidth 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz
SENSITIVITY
2.4GHZ 20MHZ -99dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
1.4GHZ 20MHZ -100dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
800MHZ 20MHZ -100dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
FREQUENCY BAND
2.4Ghz 2401.5-2481.5 MHz
1.4Ghz 1427.9-1447.9MHz
800Mhz 806-826 MHz
POWER
Power Input DC 24V+-10%
Power Consumption 30watts
COMUART
Electrical Level 2.85V voltage domain and compatible with 3V/3.3V level
Control Data TTL mode
Baud rate 115200bps
Transmission Mode Pass-through mode
Priority level l Higher priority than the network port. When the signal transmission is crowed, the control data will be transmitted in priority
Note:l The data transmitting and receiving is broadcast in the network. After successful networking, each FDM-615PTM node can receive serial data.l If you want to distinguish between sending, receiving and control, you need to define the format yourself

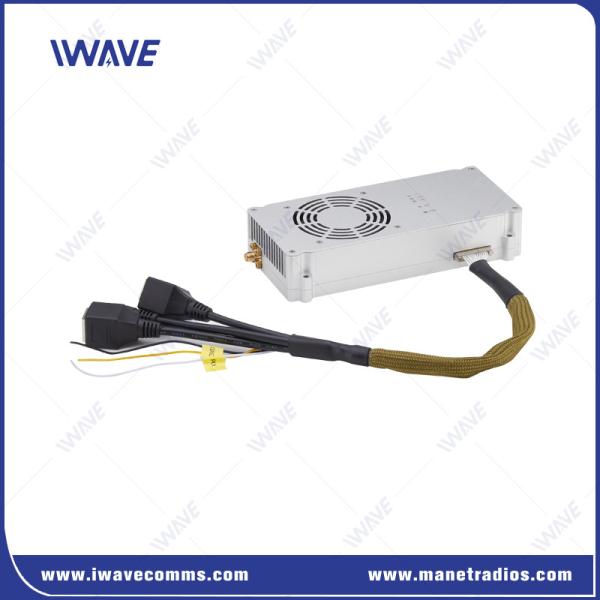

INTERFACES
RF 2 x SMA
Ethernet 1xJ30
COMUART 1xJ30
Power 1xJ30
Debug 1xJ30
