350MHz-390MHz Hand Held UHF Radio MESH Network Radio Base Station
350MHz-390MHz Hand Held UHF Radio MESH Network Radio Base Station
350MHz-390MHz Hand Held UHF Radio MESH Network Radio Base Station
350MHz-390MHz Hand Held UHF Radio MESH Network Radio Base Station
Specifications
Brand Name :
IWAVE
Model Number :
Defensor-TS1
Certification :
CE, MIC
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T,D/P
Supply Ability :
500000/month
Delivery Time :
5-8work days
Packaging Details :
Standard Carton Box
VHF :
136-174MHz
Technology :
MANET(Mobile Ad Hoc Network)
UHF 1 :
350-390MHz
UHF 2 :
400-470MHz
Weight :
560g
Communication Range :
8km/Hop
Hops :
Max 6hop
Positioning System :
Beidou/GPS
Description

Handheld MESH Network Radio Base Station

Introduction

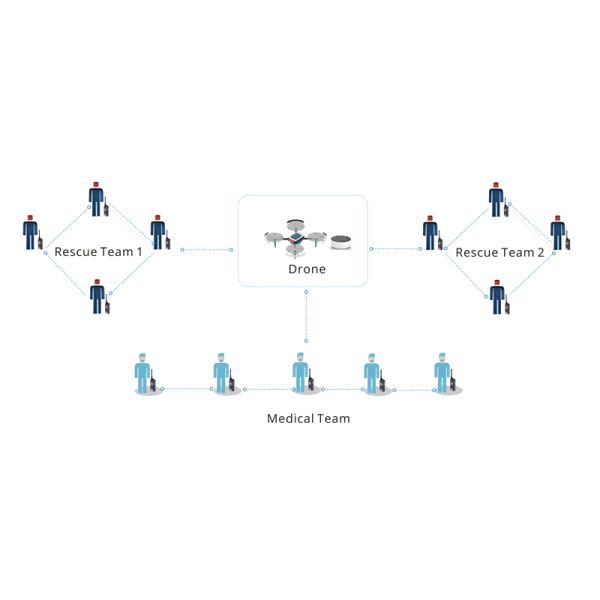

TS1 is IWAVE new and uniquely designed handheld ad-hoc radio repeater with light weight, small size and ad-hoc technology. It supports 2/4/8/15/25Watts adjustable. The TS1 uses wireless interconnect technology that provides narrowband self-grouping multi-hop links to achieve a wide area of mesh coverage with digital voice and high security. IP66 high reliability for flexible self-organizing network communications in mountainous areas, forest areas, tunnels, indoors and basements of urban buildings.

Ad-hoc Network Radio

●Clock synchronisation with network and GPS time

●Automatically select base station signal strength

●Seamless roaming

●Supports individual and group call, all call, priority interrupt

●2-4 traffic channels via single carrier(12.5kHz)

●2-6 traffic channels via single carrier (25kHz)

Personal Safety

●Man down

●Emergency button for alert and ambulance listening

●lnitiate a call to the command center

●Showing caller's distance and direction during a call

●Indoor search and location of missing radio

●20W high power option can be activated on request in emergency circumstances

 350MHz-390MHz Hand Held UHF Radio MESH Network Radio Base Station

Specifications

Handheld MESH Radio Base Station(Defensor-TS1)
General Transmitter
Frequency VHF: 136-174MHz
UHF1: 350-390MHz
UHF2: 400-470MHz		 RF Power 2/4/8/15/25(adjustable by software)
Channel Capacity 300 (10 Zone, each with a maximum of 30 channels) 4FSK Digital Modulation 12.5kHz Data Only: 7K60FXD 12.5kHz Data&Voice: 7K60FXE
Channel Interval 12.5khz/25khz Conducted/Radiated Emission -36dBm<1GHz
-30dBm>1GHz
Operating Voltage 11.8V Modulation Limiting ±2.5kHz @ 12.5 kHz
±5.0kHz @ 25 kHz
Frequency Stability ±1.5ppm Adjacent Channel Power 60dB @ 12.5 kHz
70dB @ 25 kHz
Antenna Impedance 50Ω Audio Response +1~-3dB
Dimension 144*60*40mm(without antenna) Audio Distortion 5%
Weight 560g Environment
Battery 3200mAh Li-ion battery (standard) Operating Temperature -20°C ~ +55°C
Battery Life with standard battery 31.3hours(120hours with IWAVE power bank) Storage Temperature -40°C ~ +85°C
Protection Grade IP67
Receiver GPS
Sensitivity -120dBm/BER5% TTFF(Time To First Fix)cold start <1 minute
Selectivity 60dB@12.5KHz
70dB@25KHz		 TTFF (Time To First Fix)hot start <20s
Intermodulation
TIA-603
ETSI		 70dB @ (digital)
65dB @ (digital)		 Horizontal Accuracy <5metres
Spurious Response Rejection 70dB(digital) Positioning Support GPS/BDS
Rated Audio Distortion 5%
Audio Response +1~-3dB
Conducted Spurious Emission -57dBm
