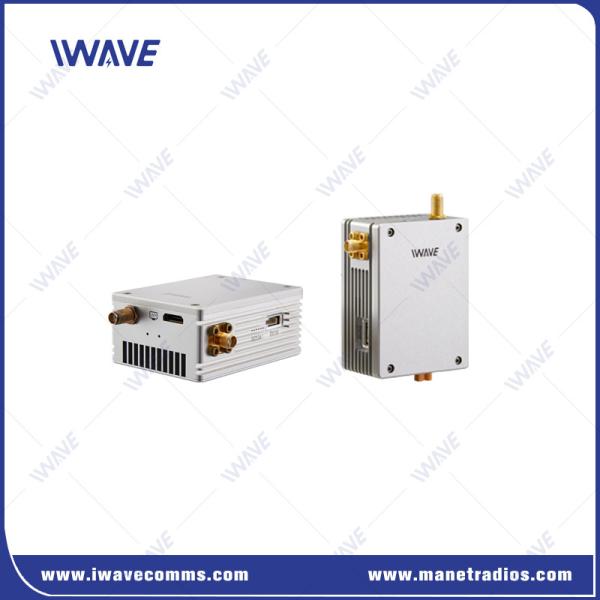

30km UAV Video Transmitter For HDMI SDI 1080P Video And Telemetry Mavlink Data
30km UAV Video Transmitter For HDMI SDI 1080P Video And Telemetry Mavlink Data
30km UAV Video Transmitter For HDMI SDI 1080P Video And Telemetry Mavlink Data
30km UAV Video Transmitter For HDMI SDI 1080P Video And Telemetry Mavlink Data
Specifications
Place of Origin :
China
Brand Name :
IWAVE
Certification :
CE, MIC
MOQ :
2units
Price :
Negotiable
Packaging Details :
Standard Carton Box
Delivery Time :
5-8work days
Payment Terms :
L/C, D/P, T/T
Supply Ability :
500000/month
Model Number :
FIM-2450
Name :
UAV Video Transmitter
Communication Range :
30-50km
Data Rate :
6Mbps
MIMO :
1T2R
Frequency :
800Mz/1.4Ghz
Encryption :
AES
Transmitting Power :
2watts
Video Input :
HDMI/SDI/IP
Description

30km UAV Video Transmitter for HDMI SDI 1080P Video and Telemetry Mavlink Data

Description

FIM-2450 is a drone video transmitter for 30-50km long distance with full HD video and duplex TTL data transmitting. It brings broadcast quality and robustness standards to the rapidly evolving and diversifying UAV aerial video arena. It is a professional UAV HD video link with the features lightweight, compact and robust. The air unit is only 146gram(5.1oz). Both air unit and ground unit equipped with omni fiber antenna can ensure the 30-50km air to ground range with 1080P video feed.
Working frequency 2.405-2.479Ghz is adjustable by software.
Various ports with HDMI, LAN and full duplex serial port enable users to apply different payloads on drone.
Short latency with 50ms latency for 1080P video.

Key Features

  • Low delay 50ms for 1080P video feed
  • Lightweight companct design: 146g for air unit and ground unit
  • Support full HD 1080P video quality
  • High security with AES128bits encryption
  • COFDM modulation
  • Support pixhawk 2 /cube/v2.4.8/4 , Apm 2.8
  • Built-in with HDMI SDI and LAN port
  • Adjustable frequency, RF power and bandwidth
  • H.264+h.265 and MPEG2 coding
  • Offering control, telemetry and payload, video Bi-directional transmission in 1 RF channel for 30-50km
  • Long transmission distance and strong diffraction capability, real-time and low latency, high-speed connectivity.
  • CNC technology double aluminum alloy housings featured, good impact resistance and heat dissipation.
30km UAV Video Transmitter For HDMI SDI 1080P Video And Telemetry Mavlink Data

Coded Orthogonal Frequency Division Multiplexing (COFDM)
Effectively eliminate multipath interference under long-distance transmission, solve the efficiency problem and ensure the reliability of long range wireless transmission.


Low Latency

  • The total latency from mirror to mirror could be less than 33ms.
  • Each frame is encoded to nearly same size to guranteethere is no additional latency in wireless channel caused by large I frame.
  • CABAC entropy encoding and high compression rate to ensure high video quality at low bitrate
  • Ultra fast decoding to display engine.

Long Range Communication
Advanced modulation, High performance PA, FEC alogrithm and ultra sensitive receiver RF module.

-40℃~+85℃ Working Temperature
All chipset, electronic parts and components are industrial grade tolerating -40℃~85℃


Various Ports

FIM-2450 drone hdmi video transmitter is equpped with HDMI, SDI, LAN and full duplex serial port. By these ports, uers can get living video and control the flight on ground via mission planner or QGround simultaneously.

Application

Special designed for UAV air to ground LOS 30-50km HD video and flight control data transmitting for aerial photography, News, sports events, hidden investigation, video surveillance, real-time wireless video transmission and other fields.
Ideal for medium and large long-distance UAVs such as Multi-rotor UAVs, Fixed-wing UAVs, and VTOL Fixed Wing UAV etc.

Specification

Frequency2.4GHz (2.402-2.482GHz)
Error DetectionLDPC FEC/Video H.264/265 Super Error Correction
RF Transmitted Power33dbm
Power ConsumptionTX: 19Watts/RX: 8Watts
Distance30-50km(Notes: True distance is related to the environment)
Bandwidth4/8MHz
Antenna1T: Omnidirectional Antennas
1R: Omnidirectional Antennas or Panel Antenna
Video Input/outputOn board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX
Video Color SpaceDefault 4:2:0
Video CompressedAVC adds H.265 feature TS stream
EncryptionAES128
Transmission Modepoint to point
Start-up time25s
Re-connection timeLess than 1s after signal has been recovered
End to End Latency50-70ms for1080P60/720P60 Encoding and decoding
Transmission Rate3/6Mbps
Receive Sensitivity-98dbm@4Mhz
-95dbm@8Mhz
Two-way functionSupport video and duplex data simultaneously
DataSupport TTL/MAVLINK/Telemetry
Interface1080P/60 HDMI Mini ×1
Antenna ×1
S1 TTL bidirectional serial port ×1
RS 232 bidirectional serial port ×1(RS 232 and S1 TTL serial port cannot be used at same time)
Ethernet to RJ45 on Windows ×1
Power Input ×1
Indicator LightHDMI input/output Status(WL Light)
Signal Strength Indicator( 1, 2, 3)
Connection Status Indicator(5, 6)
Video circuit board Work Indicator(4)
Power light
HDMIHDMI mini/Flexible Flat Cable(FFC)
Metal Case DesignCNC technology
Double aluminum alloy shell
Conductive anodizing craft
Power supplyDC7- 18V (DC12V advised)
Temperature RangeOperating temperature: -40°C ~+85°C
Storage temperature: -55°C ~ +85°C
DimensionTx/Rx: 74.6×72.9x22.5mm
WeightTx/Rx 146g

30km UAV Video Transmitter For HDMI SDI 1080P Video And Telemetry Mavlink Data
