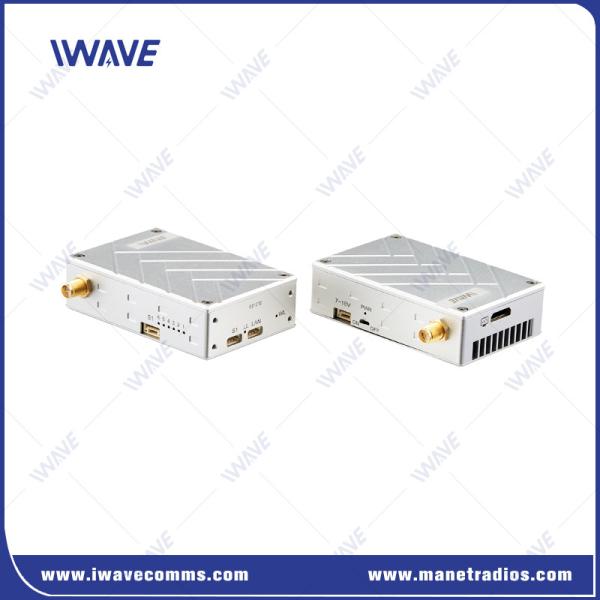

10KM HDMI Full HD UAV Video Transmitter And Full Duplex Pixhawk Cube Data Links
10KM HDMI Full HD UAV Video Transmitter And Full Duplex Pixhawk Cube Data Links
10KM HDMI Full HD UAV Video Transmitter And Full Duplex Pixhawk Cube Data Links
10KM HDMI Full HD UAV Video Transmitter And Full Duplex Pixhawk Cube Data Links
Specifications
Brand Name :
IWAVE
Model Number :
FIM-2410
Certification :
CE, MIC
Place of Origin :
China
MOQ :
2units
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T
Supply Ability :
500000/month
Delivery Time :
5-8work days
Packaging Details :
Standard Carton Box
Name :
UAV Video Transmitter
Communication Range :
10KM Air to ground LOS
Frequency Option :
2.3G/2.4G/2.5G
Data Rate :
3Mbps When 10km distance
Video Input and Outout :
HDMI mini
Flight Control :
Supports pixhawk 2/cube/v2.4.8/4/Apm 2.8
GCS Software :
Mission planner & QGround
Modulation :
COFDM
Description

10KM HDMI Full HD UAV Video Transmitter And Full Duplex Pixhawk Cube Data Links

Description

FIM-2410 mini transceiver is a new designed TDD-COFDM wireless communication equipment based on military standard for UAVs. It supports 2.3/2.4/2.5Ghz for different environment. The system provides superior performance in 8-12km long range HD video and bi-directional data transmission with 50ms latency.

Key Features

  • Video compression H.264 technology + H.265's Algorithms

  • Dual Built-in encoder/decoder

  • HDMI and IP Camera interface

  • HD video and Telemetry receiver

  • Built to enable controlling and transmitting

  • Drone Communication and Video Processing

  • Bi-Directional Data Link Supporting Simultaneous HDMI and Digital Video Streams

  • Ethernet interface support TCP/IP/UDP

  • Latency 50ms

  • Video output support HDMI and IP to PC by Ethernet cable

  • AES Encryption

  • Frequency 2.3/2.4/2.5Ghz for option

  • Bandwidth 4/8Mhz

  • Sensitivity -100dbm

  • Serial ports Telemetry MAVLINK/RS232/TTL

 10KM HDMI Full HD UAV Video Transmitter And Full Duplex Pixhawk Cube Data Links

FAQ

About video storage

Wireshark can be used to record, Google Wireshark runs on windows. Wireshark can record and playback any video stream on Ethernet. You need to do some research on how to do it, google "wireshark recod play video" and try.

About SDI interface type.

Question 1: Please tell me type of SDI for these links?

Answer: It is standard 3G SDI

Question 2: If I the out put of camera will be to EX_SDI or HD_SDI for out put video of TX link is without noise?

Answer: HD-SDI works with FIM-2450, but EX-SDI doesn't. Because EX-SDI isn't standard SDI, it compresses standard SDI video to JPEG format to transport, standard SDI doesn't compress video.

About Max flight speed

Question: What is the maximum flight speed supported?

Answer: Maximum flight speed supported: 120km/h

Application

Here are the applications listed in English for the specially designed UAV air-to-ground LOS 5km HD video and flight control data transmission system:

Aerial Photography: Capturing high-definition aerial images and videos for professional photography and cinematography purposes.

News Coverage: Providing live video feeds and real-time updates for news reporting and broadcasting.

Sports Events: Recording and transmitting dynamic aerial footage of sports events for enhanced viewing experiences.

Hidden Investigation: Conducting covert surveillance operations with secure and discreet video transmission capabilities.

Video Surveillance: Implementing real-time video monitoring and security solutions for various locations and facilities.

Real-Time Wireless Video Transmission: Enabling the streaming of live video for a wide range of applications, including inspections, remote monitoring, and more.

Additionally, the secure transmission kit is specifically tailored for surveillance drones used in:

Law Enforcement: Supporting law enforcement agencies with secure and reliable aerial surveillance capabilities.

Civil Rescue: Assisting in civil rescue operations by providing real-time video feeds and critical data for effective response and coordination.

Specification

Frequency 2.4GHz(2402Mhz-2482MHz)
Error Detection LDPC FEC/Video H.264/265 Super Error Correction
RF Transmitted Power 1W (Air to ground 8km-12km)
Power Consumption TX: 10Watts
RX: 6Watts
Bandwidth 4MHz/8Mhz
Latency ≤15-30ms
Transmission Rate 3-5Mbps
Receive Sensitivity -100dbm@4Mhz
Video Color Space Default 4:2:0
Antenna 1T2R
Video Input/output Interface HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX
Video Compressed Format H.264+H.265's Algorithms
Bit Rate Software adjustment, Max 115200bps
Encryption AES 128
Transmission Distance Air to ground 8-12km
Start-up time < 30s
Two-way function Support video and duplex data simultaneously
Data Support bi-directional TTL
Power supply DC 7- 18V
Interface 1080P/60 HDMI Mini RX x1
100Mbps Ethernet to USB / RJ45 on Windows &times; 1
S1 TTL bi-directional serial port x1
Power Input x1
Indicator Light HDMI input/output Status
Transmitting and receiving
Video board working Status
Power
HDMI HDMI mini
Temperature Range Operating temperature:-40&deg;C ~+ 85&deg;C
Storage temperature:-55&deg;C ~+ 100&deg;C
Appearance Design CNC technology/ double aluminum alloy shell
Dimension 72&times;47&times;19mm
Weight Tx: 94g/Rx: 94g
