PG-083 Precision pressure gauges oil filled type
PG-083 Precision pressure gauges oil filled type
Specifications
Description
Zoom

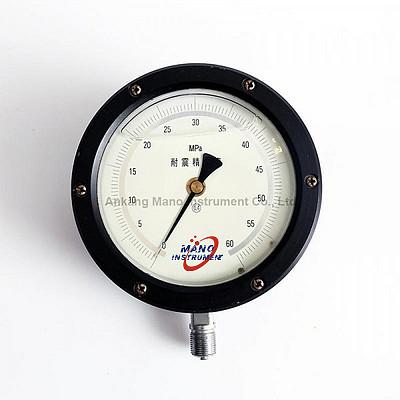

PG-083 Precision pressure gauges oil filled type

Model: PG-083L, PG-083BF

Measuring Range: -0.1...0 to 0...60 Mpa or other equivalent units

Accuracy Class0.6% 0.4%

Thread: M20*1.5 G1/2 NPT1/2 etc

Diameter: 150mm

  • Prev:PG-082 Precision pressure gauge with zero adjustment
  • Next:TG-011B Bimetal thermometer SS back mount
  • Product Details

Applications

Accurately measuring the pressure of all kinds of medium which noncorrosive, non-crystalline and non-condensing for copper alloys or steel alloys.

High-accuracy pressure measurement.

Testing and checking of industrial type pressure gauges.

Industry production process, accurate measurement and scientific laboratory.

Features

With a mirror ring under the scale.

Knife edge pointer for optimal accuracy of reading

High measurement accuracy and long-term stability.

With zero adjustable setting

With oil filled for shock resistance.

Description

Model

PG-083L: Oil filled precision pressure gauge, lower mount

PG-083BF: Oil filled precision pressure gauge, back mount with flange

Nominal size in mm (NS in mm)

150mm

Accuracy class

NS 150: 0.6%

(0.4% for optional)

Scale ranges

From -1...0 to 0...600 bar or other equivalent units.

Vacuum or combined pressure and vacuum ranges

Pressure Unit

Mpa psi bar kg/cm2 Kpa etc.

Zero adjustment

Yes

Case

Aluminum

Dial

Aluminum, white,

black lettering, Single scale;

(Double scale; Special scale for option)

Thread size

M20*1.5 G1/2 NPT1/2 etc.

Bourdon tube

Phosphor bronze chrome vanadium steel bourdon tube

C-type or helical type

Process connection

Steel

Lower mount (radial)

Filling liquid

Glycerin (Silicone for optional)

Permissible temperature

Ambient: 5~40°C

Relative Humidity

80%

Temperature effect

When temperature of the measuring system deviates from reference temperature (20℃±2℃), additional error ≤0.4%/10°C should be considered

Options

Accuracy: 0.4% for optional

Mounting: Back mounting with flange.

Liquid filled: Dry but fillable; glycerin filled; silicon filled.

Customer’s logo dial for OEM or ODM

HOW TO ORDER” SEQUENCE

Model /Nominal size / Scale range / Thread size / Process connection / Options
