Specifications
Brand Name :
Newart
Model Number :
JJM5
Certification :
ISO
Place of Origin :
Ningbo,Zhejiang,China
MOQ :
Negotiable
Price :
Negotiable
Delivery Time :
35days
Packaging Details :
Plastic bag and inner box then outside carton
Supply Ability :
5000pcs per month
Name :
Gasoline Cable Pulling Winch
Power Source :
Gasoline power or Diesel power, Diesel Gasoline
Application :
Power Construction
Capacity :
30KN,50KN, 3T,5T
Type :
Belt drive winch
Description

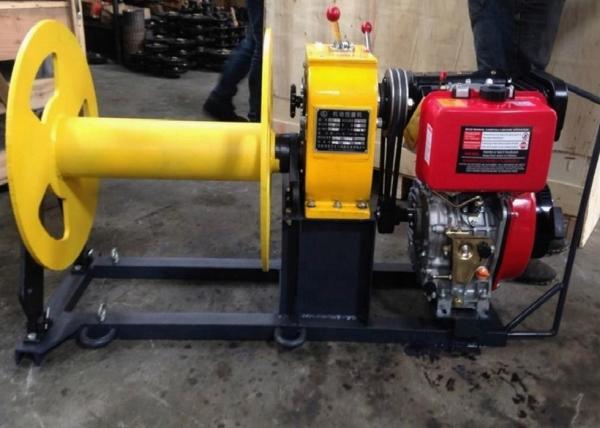

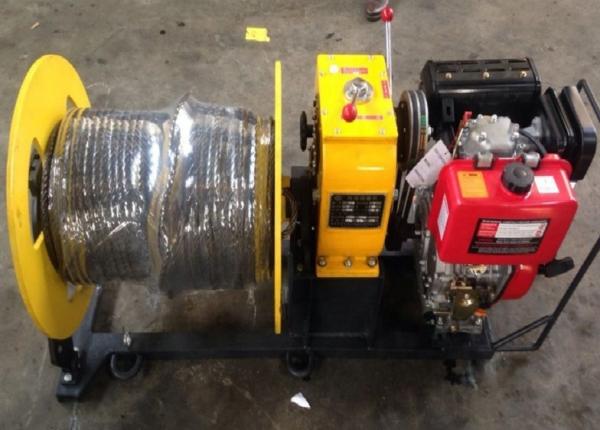

5 Ton 30 KN Belt Drive Winch Diesel Engine Honda Gasoline Cable Pulling Winch

Cable Pulling Winch

Quick Detail
1. Gas engine powered winch
2. Max Pulling Force:50KN
3. Weight:190kg(No wire rope)
4. Dimension:1200x600x700mm
5. Wire rope:10mm 300M / 14mm 200m
Application
It is used for tower erection and sagging operation in line construction. It can also be used for pulling conductor or underground cable. Powered winches are the construction tools of erecting electric circuits of high pressure electric transmission in the sky and laying electrical cables underground. They can complete the tasks of heavy-lifting and dragging such as erecting the wire. Testified by the experiments and practical uses, they have reasonable structure, small volume, light weight, strong power, nimble operation and convient transporting. Based on so many advantages, this two models of Powered winch are popular with the electric workers.
Features
1. Speedy and Efficient.
2. Safe and Reliable.
3. Compact structure.
4. Small volume.
5. Light in weight.
Technical Data

tem

number

 Model Type Gear Pulling Force(KN) Pulling Speed(m/min) Power

重量

Weight(KG)
08156A JJM5Q Slow 50 5 HONDA GASOLINE GX390 13HP 190
Fast 30 11
Reverse - 3.2
08156B JJM5C Slow 50 5 Diesel Engine 9KW 190
Fast 30 11
Reverse - 3.2
