Specifications
Model Number :
SLW-1.5
Certification :
ISO
Place of Origin :
Zhejiang, China
MOQ :
300pcs
Price :
Get Latest Price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
30-35days
Packaging Details :
Plastic bag + Iron Pallet
Application :
connect, power construction
Material :
steel
Warranty :
one year
Rated load :
15-80KN
Product name :
Conductor Mesh Socks Joint
Size :
70-1120mm2
Feature :
Easy
Usage :
Power Line Construction
Description
Wire Laying Construction Steel Cable Socks Wire Rope Pulling Grip Sock Wire Mesh Joints Conductor Mesh Socks Joint

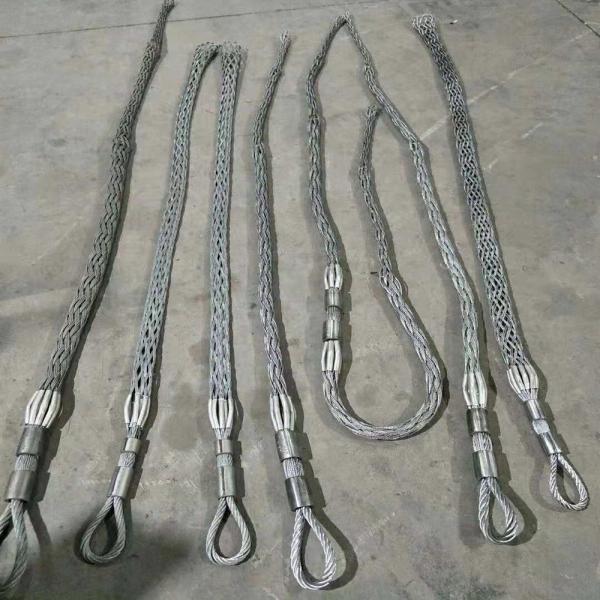

Conductor Mesh Socks Joint

Feature 1. As well as advantages of light weight, large tensile load, not damage line, convenient to use and so on.It is also soft and easy to strench. 2.The most ideal tool for electric power construction. Applicatoin Hot sale cable pulling hoisting grip,cable sock is used for buried or pipe traction on ground power cables. It can pass all kinds of pay-off pulley. Use Method First press the opening of the net sleeve with the palm of your hand to open it, then start to wear the cable inward. The deeper the cable is worn, the greater the pulling force. The mesh body of the net sleeve is in the form of a grid, and the tension is tightened during construction. After the construction is completed, you only need to apply force in the opposite direction to remove the net sleeve. The net sleeve can be pulled by hand or lifting tool to achieve the function of wiring and protecting the cable.

Technical Data

Item number
Model
Applicable Conductor(ACSR)
Rated Load
(KN)
Single head
Double head
17161
17181
SLW(S)-1.5
ACSR70-95
15
17162
17182
SLW(S)-2
ACSR120-150
20
17163
17183
SLW(S)-2.5
ACSR185-240
25
17164
17184
SLW(S)-3
ACSR300-400
30
17165
17185
SLW(S)-4
ACSR500-600
40
17166
17186
SLW(S)-5
ACSR720
50
17167
17187
SLW(S)-7
ACSR900
70
17168
17188
SLW(S)-8
ACSR1000-1120
80
17169
17189
SLW(S)-12
ACSR1250
120

Introduction
Ningbo Donghuan Power Technology Co.,Ltd. is a research and development, production and sales: Stringing Block, Hoisting Tackle, Wire Grip, Reel Stand, Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors, Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric power construction. We are willing to make friends with customers, establish long-term cooperation, and create a brilliant future. We are always at your service, welcome to consult!
Company Profile
Wire Laying Construction Wire Rope Tools Steel Material 15 - 80KN Rated Load
FAQ
Services: 1. Our Quality Assurance Before packaging, we should control the quality of each process to avoid defects in the manufacturing process. 2. Fast delivery time There is sufficient stock, using advanced equipment and machinery to produce, to ensure delivery within 7-15 days. 3. Packaging Durable wooden boxes, wooden pallets or cartons, you can ensure that the ordered items will reach your perfect state. 4. Application It is widely used in overhead power line construction.
