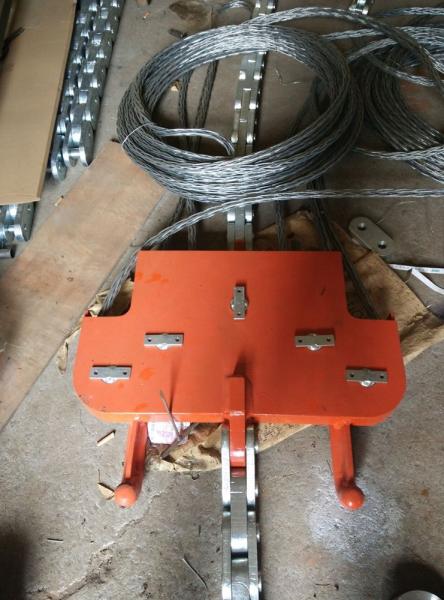

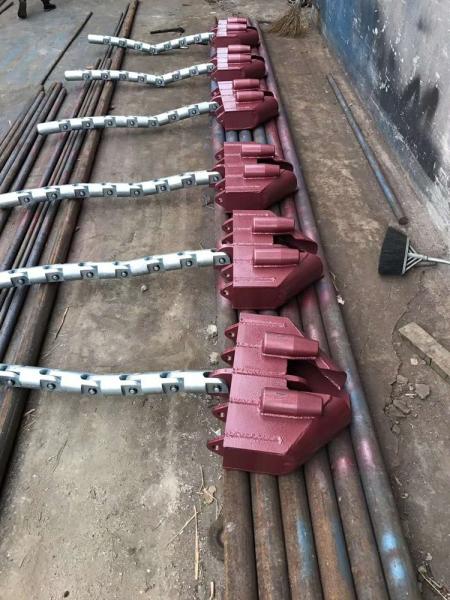

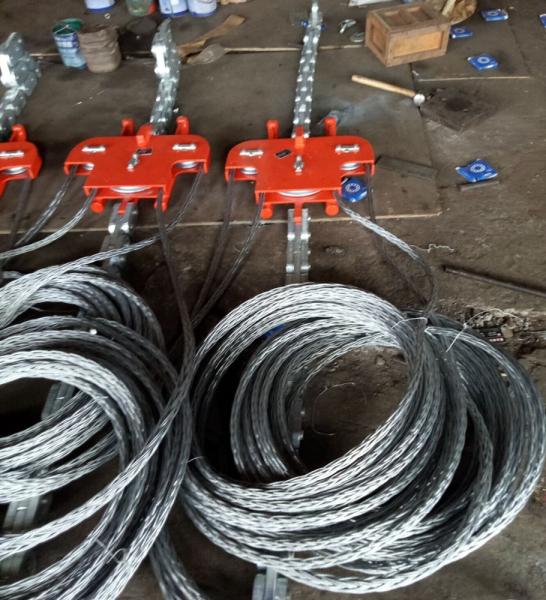

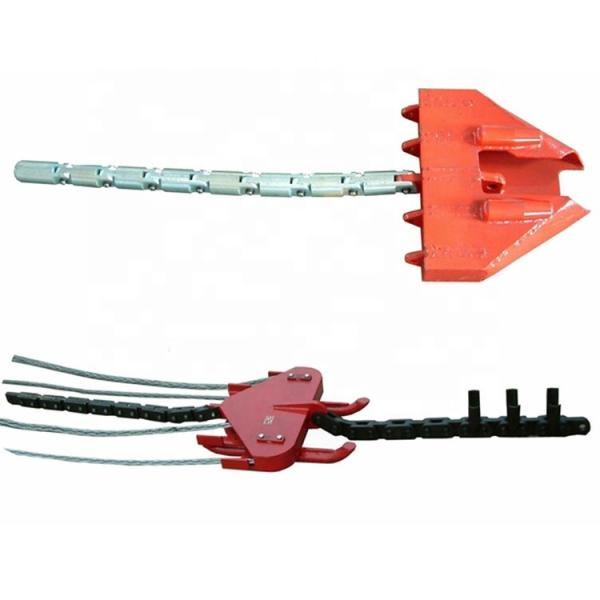

SZ Series 130KN Cable Pulling Running Board For Four Bundle Conductors
SZ Series 130KN Cable Pulling Running Board For Four Bundle Conductors
SZ Series 130KN Cable Pulling Running Board For Four Bundle Conductors
SZ Series 130KN Cable Pulling Running Board For Four Bundle Conductors
SZ Series 130KN Cable Pulling Running Board For Four Bundle Conductors
SZ Series 130KN Cable Pulling Running Board For Four Bundle Conductors
SZ Series 130KN Cable Pulling Running Board For Four Bundle Conductors
SZ Series 130KN Cable Pulling Running Board For Four Bundle Conductors
SZ Series 130KN Cable Pulling Running Board For Four Bundle Conductors
SZ Series 130KN Cable Pulling Running Board For Four Bundle Conductors
SZ Series 130KN Cable Pulling Running Board For Four Bundle Conductors
SZ Series 130KN Cable Pulling Running Board For Four Bundle Conductors
Specifications
Place of Origin :
Zhejiang, China
Model Number :
SZ4A-13
Packaging Details :
Cartons and Pallets
Delivery Time :
35days
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000pcs/months
MOQ :
100pcs
Price :
Get Latest Price
Certification :
ISO
Product name :
Head Boards for Four Bundle Conductors
Type :
running board
Warranty :
one year
weight :
82-150KG
Rated load :
130-320KN
Usage :
Traction conductor
Size :
100-125mm
Model :
SZ4B-13
Description

SZ4A-13 130KN Balancing Head Boards Running Board for Four bundle conductors

Applicatoin
SZ Series Cable Pulling Running Board for Two Bundle Conductors are designed to avoid torsion strain accumulation during line stringing.
Apply to tension stringing or mechanical traction stringing construction.
Specificaitons

Item No. Model Applicable Sheave Width(MM) Rated load(KN) Weight(KG) Feature
17231 SZ4A-13 100 130 139 Poising sheave
17231A SZ4A-18 100 180 160 Poising sheave
17231B SZ4A-13A 110 130 155 Poising sheave
17231C SZ4A-18A 110 180 180 Poising sheave
17232 SZ4B-13 100 130 82 Conductor are independent
17233 SZ4B-18 110 180 95 Conductor are independent
17234 SZ4B-25 110 250 105 Conductor are independent
17239 SZ4B-32 125 320 150 Conductor are independent
