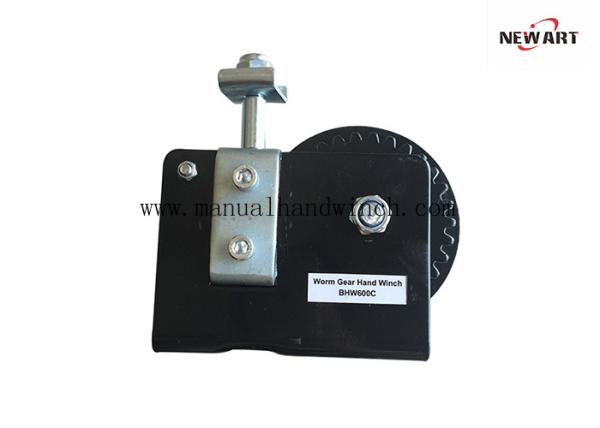

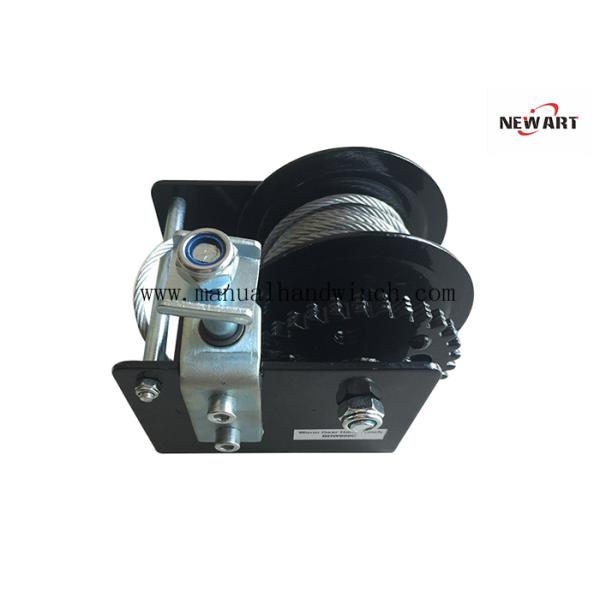

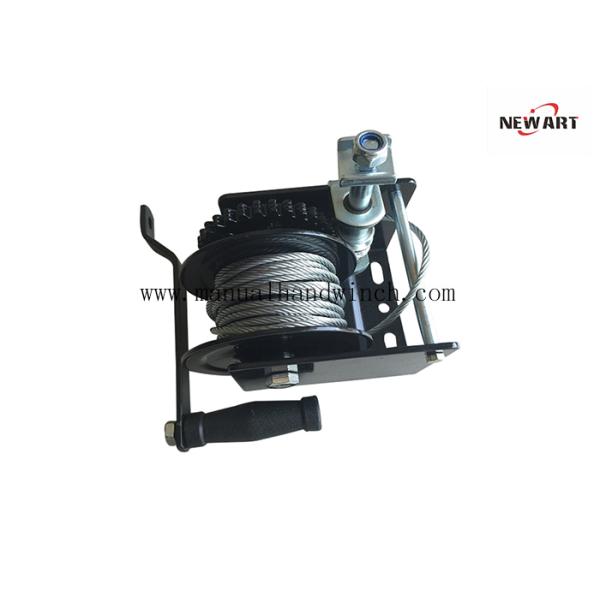

Steel Material Manual Worm Gear Winch Worm Gear Ceiling Hand Winch 1500 LB
Steel Material Manual Worm Gear Winch Worm Gear Ceiling Hand Winch 1500 LB
Steel Material Manual Worm Gear Winch Worm Gear Ceiling Hand Winch 1500 LB
Steel Material Manual Worm Gear Winch Worm Gear Ceiling Hand Winch 1500 LB
Specifications
Brand Name :
Newart or OEM
Model Number :
BHW600CS
Certification :
ISO
Place of Origin :
Ningbo,Zhejiang,China
MOQ :
500pcs
Price :
Get Latest Price
Payment Terms :
L/C, T/T, Western Union, D/A, MoneyGram
Delivery Time :
25-30days after payment
Packaging Details :
Inner boxes and outside cartons or customize packing
Supply Ability :
10000pcs per month
Name :
Worm Gear Winch
Material :
Steel
Application :
chicken factory
Color :
Customized
Usage :
Double Drum Winch,hoisting and Lifting
Brake :
Hand Brake
Surface treatment :
Galvanized or Customized
Packing :
Carton,pallet
Description

1500 LB Manual Winches , Worm Gear Ceiling Hand Winch ,Worm Drive Winch

Worm gear winch allows for better load control and features a reinforced frame, comfort-grip handle. Worm gear provides load holding capability when handle is released. Reel stops automatically, locking load in place whenever the handle is released.

The worm gear hand winch is known for it’s robust construction. The winch can be used as lifting winch and pulling winch. The hand winches are equipped with a load pressure brake. This brake holds the load at any required height during hoisting and lowering of the worm gear hand winch.

Manual hand-operated gear drive winches, are designed for many lifting, lowering and pulling applications. Equipped with a load pressure brake. This brake holds the load at any required height during hoisting and lowering and prevents and unintentional lowering of the load. Adjustable crank handle for fast lifting of smaller loads, resulting in lowest possible handle effort and rapid winding of the rope.

Specifications:

Model BHW600CS BHW600CD BHW900CS BHW900CD BHW1100CS BHW1100CD
Capacity (Lbs) 400kg(880lbs) 400kg(880lbs) 900kg(2000lbs) 900kg(2000lbs) 1100kg(2500lbs) 1100kg(2500lbs)
Gear ratio 31:1 31:1 41:1 41:1 51:1 51:1
Drum Single Divided Single Divided Single Divided
Drum-hub Diameter(mm) ￠38 ￠38 ￠38 ￠38 ￠50 ￠50
Cable Diameter(mm) ￠4.8 ￠4.8 ￠5.0 ￠5.0 ￠5.6 ￠5.6
Cable Length(m) 8 15 15 15 30 30
Hook Type "Snap" hook "Snap" hook "Snap" hook "Snap" hook "Snap" hook "Snap" hook
Surface Treatment Black Spraying Black Spraying Black Spraying Black Spraying Black Spraying Black Spraying
Hand length (mm) 280 280 280 280 280 280
N.W(kg)/pcs 4.3 4.3 5.5 5.5 6.7 6.7
Pcs/Each Carton 4pcs 4pcs 4pcs 4pcs 4pcs 4pcs
