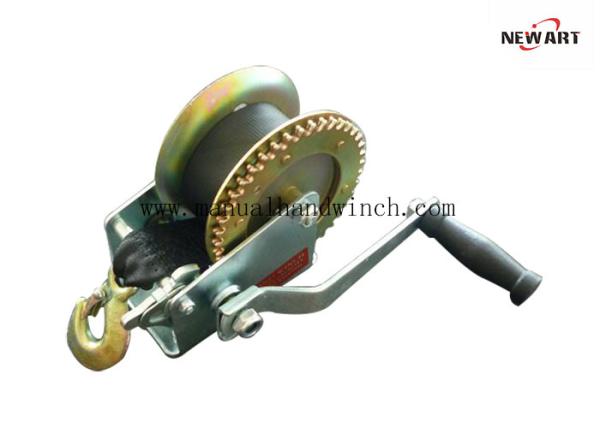

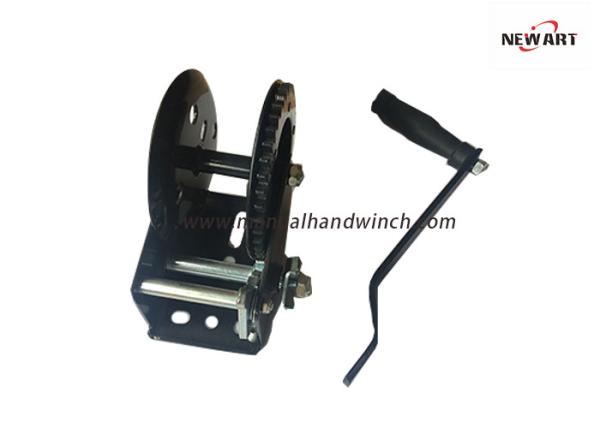

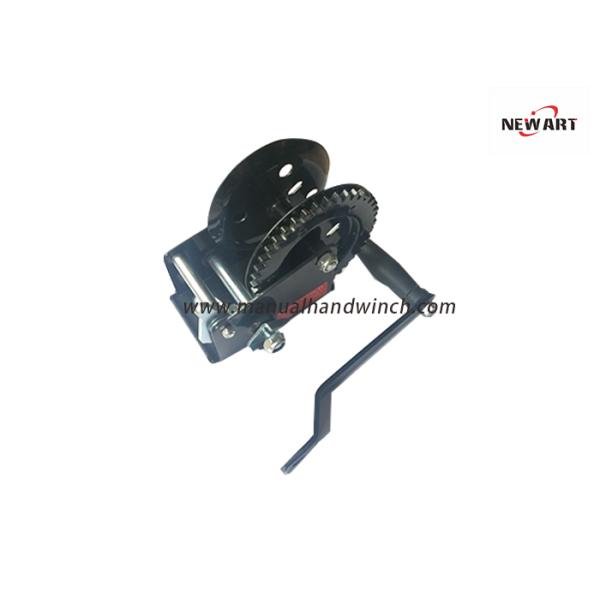

Metal Manual Boat Winch / Hand Operated Winch 10m Marine Trailer Caravan 1200lb
Metal Manual Boat Winch / Hand Operated Winch 10m Marine Trailer Caravan 1200lb
Metal Manual Boat Winch / Hand Operated Winch 10m Marine Trailer Caravan 1200lb
Metal Manual Boat Winch / Hand Operated Winch 10m Marine Trailer Caravan 1200lb
Specifications
Brand Name :
Newart
Model Number :
LDC1200W
Certification :
ISO TUV CE
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, , Western Union, D/A, D/P
Supply Ability :
10000pcs/month
Delivery Time :
30-35days after deposit
Packaging Details :
Inner boxes and outside cartons
Capacity :
1200lbs(545kg)
Application :
Manual Boat Winch
Material :
Body/Steel A3
Color :
Customer Requirement
Usage :
cranes,Hositing,lifting,Transportation
Type :
winch
Surface treatment :
Galvanized/black coated
Packing :
1pc/polybag/color box
Description

Manual Hand Winch 1200LBS Cable Manual 8M Synthetic Rope Boat Trailer Car Mount

One Year Commercial Warranty

DESCRIPTION

Synthetic belt :5 cm (W) × 8 m (L)
Maximum Pulling Capacity: 1200 LBS/540 kgs
Overall Dimensions: 250 mm × 100 mm × 160 mm
Handle Length: 225 mm
Drum-Hub Dia: 18 mm
Weight:3 kgs

Feature:

Reversible ratchet to allow cranking webbing or cable onto the drum in either direction.
Load matched gear ratios for easier cranking.
Positive action brake can hold the load in any position.
Heavy duty winch body, Standard mounting holes.
Mechanical components enclosed for protection.
Surface Treatment: Powder coating and zinc plating.
Carbon steel heat treated bushes, shaft and gears.
Resistant to bad weather, Easy to mount, Portable.
Mooring Hook Equipped with a Safety pawl.

Specifications:

Model Capacity (LBS/KN) Gear Ratio Handle Length(mm) Drum-Hub Dia(mm) Cable Size (mm×m) Size of Color Belt PCS/Carton Size package (cm)
LDC600C 600(270) 3.1:1 165 φ16 φ4.2×8 1.0×50×8m 6 59×26×16
LDC800C 800(360) 3.1:1 175 φ16 φ4.2×8 1.0×50×8m 6 59×26×16
LDC1000C 1000(450) 4.1:1 200 φ18 φ4.2×10 1.2×50×8m 6 66×27×18
LDC1200C 1200(540) 4.1:1 225 φ18 φ4.2×10 1.4×50×8m 6 66×27×18
LDC1400C 1400(630) 4.5:1 225 φ18 φ4.5×10 1.6×50×8m 6 67×27×19
LDC1600C 1600(720) 5.1:1 225 φ20 φ4.8×10 1.6×50×8m 4 46×31×20
LDC1800C 1800(810) 4.1:1&9.8:1 250 φ20 φ4.8×10 1.8×50×8m 4 52×31×20
LDC2000C 2000(900) 4.1:1&9.8:1 250 φ20 φ5×10 1.8×50×8m 4 52×31×20
LDC2500C 2500(1100) 5.1:1&12.2:1 275 φ42 φ5×10 2.0×50×8m 4 54×31×22
LDC3000C 3000(1363) 5.1:1&12.2:1 275 φ42 φ5×10 2.0×50×8m 4 54×31×22
LDC3500C 3500(1590) 5.1:1&12.2:1 275 φ42 φ5.5×10 2.0×50×8m 4

54×31×22
