Tractor Drive Cable Winch Puller For Pulling No Twist Wire Rope
Tractor Drive Cable Winch Puller For Pulling No Twist Wire Rope
Tractor Drive Cable Winch Puller For Pulling No Twist Wire Rope
Tractor Drive Cable Winch Puller For Pulling No Twist Wire Rope
Tractor Drive Cable Winch Puller For Pulling No Twist Wire Rope
Tractor Drive Cable Winch Puller For Pulling No Twist Wire Rope
Specifications
Brand Name :
Donghuan
Model Number :
12-A
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Delivery Time :
3-5 workdays
Packaging Details :
Exported Plywood Case
Name :
Cable Winch Puller
Type :
tractor drive
Ground Clearance(MM) :
150
wheel-base(MM) :
1040
Power(HP) :
15
speed(RPM) :
2000
Description

Tractor Drive Cable Winch Puller For Pulling No Twist Wire Rope

Cable Winch Puller Features

Four gear,forward gear and reverse gear

Double drum,seven groove,protect the wire rope

speedy and convenient

The grinding of walking tractor is reformed from 12 type walking tractor.

Cable Winch Puller Specifications:

Item number Model Ground wheel-base(MM) Power(HP) speed(RPM) Travel speed(KM/H) Outline Weight(KG)
Clearance(MM) size(MM)
9171 12-A 150 1040 15 2000 3-13 2670x1040x1300 550
9172 12-B 150 1040 15 2000 3-13 2670x1040x1300 600
Gear Ⅰ Ⅱ Ⅲ IV reversalⅠ reversalⅡ
Traction force(T) 60 37 20 12 / /
Traction speed(M/MN) 11.7 18.9 34.4 55.6 6.2 21.3

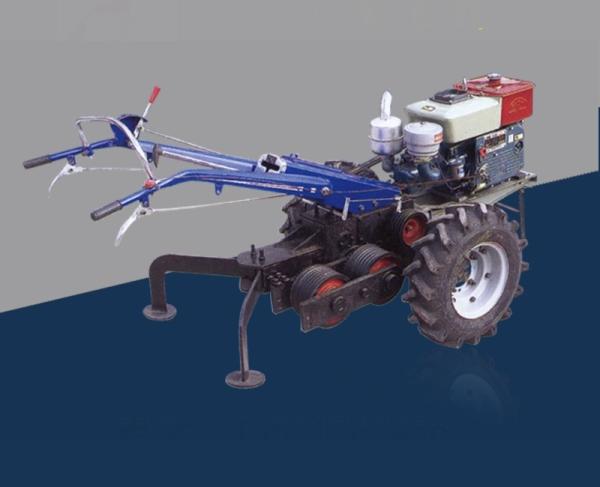

Cable Winch Puller Pictures

Tractor Drive Cable Winch Puller For Pulling No Twist Wire Rope
