22kw 37kw Standard Impact Crusher Machine For Brick And Tile Manufacturing
22kw 37kw Standard Impact Crusher Machine For Brick And Tile Manufacturing
Specifications
Brand Name :
Yuantong
Model Number :
PCX-0804
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 sets/year
Delivery Time :
1-8 Weeks
Packaging Details :
Small items: wooden box; Large device: container
Product Name :
High Strength Impact Crusher
Capacity :
Varies depending on plant size
Warranty :
12 Months
Control System :
Automated
Installation Method :
Stationary
Color :
Customizable
Application :
Brick and tile manufacturing
Power Source :
Electricity
Description

PCX-0804 Efficient Adjustable Crusher Impact Crusher for Brick Manufacturing

Product Introduction:

PCX series high-efficiency adjustable fine crusher has a large crushing ratio, small discharge particle size, and the particle size distribution can be easily adjusted. By installing a counterattack plate in the crushing chamber, this machine combines the characteristics of hammer and counterattack, enhancing its crushing capacity. It is widely used in medium and fine crushing projects in fields such as metal ores, non-metallic ores, pre-grinding of cement, ceramic raw materials, refractory materials, shale, coal gangue, gypsum, quartz sand, chemicals, and especially excels in crushing processes for brick and tile manufacturing.

Performance characteristics:

  • Large crushing ratio
  • Small discharge particle size
  • Particle size distribution can be easily adjusted

Technical Parameter:

Model PCX-0804
Hammer qty(pc) 15
Feeding particle size(mm) ＜80
Avg. discharge particle size(mm) ≤3 ≤6
Output(t/h) 20-25 25-30
Motor power(kw) 37
Dimension: LXWXH (cm) 172x120x140
Brickyard capacity(10K/day) 4

PS: The above raw materials consist of 50% shale and 50% coal gangue with a fineness≤3mm + production. There is significant variation in raw materials in the brick and tile industry. In actual production, depending on the differences in raw material hardness and moisture content, there can be significant variations in production. Pure shale production is approximately 30% higher than indicated in the table, while pure coal gangue production is approximately 20-30% lower than indicated in the table.

Impact Crusher Advantages:

22kw 37kw Standard Impact Crusher Machine For Brick And Tile Manufacturing

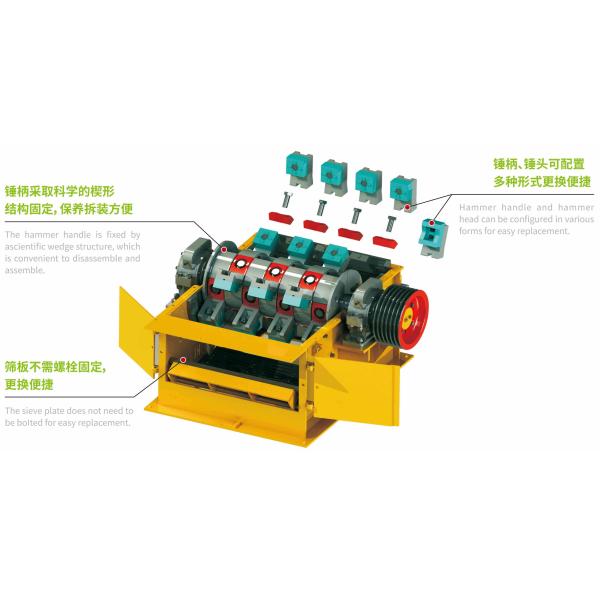

  • Convenient hammer handle replacement, various styles of hammer heads can be configured. The unique structure of the crushing chamber can be freely adjusted to maintain fineness and production.
  • Even with high material moisture and high viscosity, there is no blockage during crushing, ensuring consistent production.

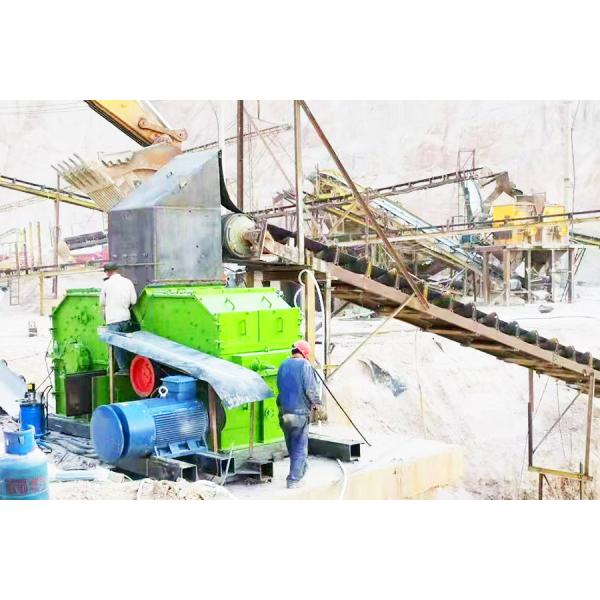

On-site Installation View:

22kw 37kw Standard Impact Crusher Machine For Brick And Tile Manufacturing
