Marine Vulconized Rubber Boat Ship Lift Air Bags Length 1.5m To 10m Airbag
Marine Vulconized Rubber Boat Ship Lift Air Bags Length 1.5m To 10m Airbag
Marine Vulconized Rubber Boat Ship Lift Air Bags Length 1.5m To 10m Airbag
Marine Vulconized Rubber Boat Ship Lift Air Bags Length 1.5m To 10m Airbag
Marine Vulconized Rubber Boat Ship Lift Air Bags Length 1.5m To 10m Airbag
Marine Vulconized Rubber Boat Ship Lift Air Bags Length 1.5m To 10m Airbag
Specifications
Brand Name :
Luhang
Model Number :
LHA7
Certification :
ISO14409
Place of Origin :
China
MOQ :
1pcs
Price :
USD$160~USD$3200.00 /pcs negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 pcs /month
Delivery Time :
10 ~ 15 working days
Packaging Details :
Film packing on pallet
Material :
60% nature rubber
Diameter :
0.8m / 1.0m / 1.2m /1.5m /2.0m / 2.5m or customize
Standard :
ISO14409
Life span :
6 ~ 12 years
Color :
Black
Warrenty :
2 years
Length :
5m / 10m / 12m /15m 18m /20m / 24m or customize
Description

Marine Air Lifting Vulconized Rubber Airbags 1.5m to 10m Rolling Air bags

Products introduction

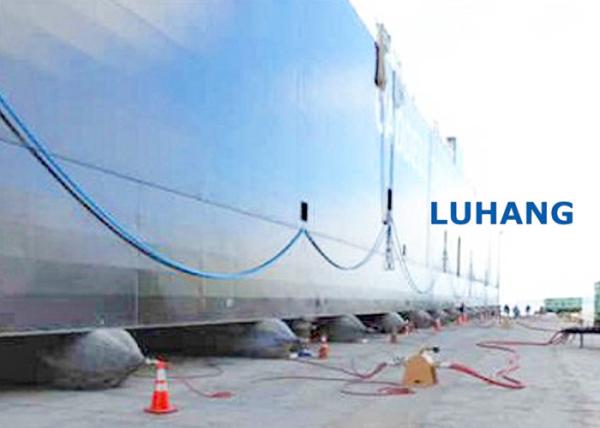

Rubber aribag for ship launching technology basis on the traditional launching technology's developement, which uses flexible airbags to replace chute and slideway. To overcome the shortcomings of traditional launching. The rubber airbag like an elastic cushion, it make the hull in the process of launching free pitch, keep the bottom has a larger contact area, makes the stress of the hull very ease, so that the hull structure, on the surface of the paintint will not be damaged.

The constructure of the airbags:


* The outer rubber layer that covers the outside of rubber airbag to protect under layers from abrasion and other external forces. This compound has sufficient tensile and tearing strength to withstand any condition and hard usage.The inside rubber layer seals pressurized air inside marine airbags.


* The synthetic tyre cord layers are made of polyamid cord which commonly used on tyres, that hold the internal pressure and distribute stress evenly. So they can provide strong efficient reinforcement for the airbags.

Marine Vulconized Rubber Boat Ship Lift Air Bags Length 1.5m To 10m Airbag

Preparation works need one or two days
Before launching, operator need to do several preparation works, such as cleaning up sludge on slipway, coating with oil, bending hull with slide plates and transoms.While if launching by air bags, just need one or two days to place airbags at the bottom of ship and inflate them instead.


Specification:

Diameter Safe working pressure Work high The bearing capacity
KN/M T/M
D=1.0M 0.17MPa 0.6m 106.93 10.93
0.5m 133.61 13.62
0.4m 160.3 16.34
D=1.2M 0.14MPa 0.7m 110.07 11.22
0.6m 132.04 13.46
0.5m 154.02 15.7
0.4m 175.99 17.94
D=1.5M 0.11MPa 0.9m 103.79 10.58
0.8m 121.06 12.34
0.7m 138.32 14.1
0.6m 155.59 15.86
0.5m 172.85 17.62
D=1.8M 0.09MPa 1.1m 99.08 10.1
1.0m 113.21 11.54
0.9m 127.33 12.98
0.8m 141.46 14.42
0.7m 155.59 15.86
0.6m 169.71 17.3

Marine Vulconized Rubber Boat Ship Lift Air Bags Length 1.5m To 10m Airbag

For many years, Luhang has been doing our best to research and development advanced products with a realistic and dedicated attitude. From July 1st ,2002, we started carrying out <Qingdao Luhang Marine Airbag and Fender Factory Standard Lifting and Weight Loading Airbag > and from July 1st, 2004, we started carrying out <Qingdao Luhang Marine Airbag and Fender Factory Standard of Pneumatic Rubber Fender>
