Ship Launching Black Marine Air Bag 2.0*20m Inflatable Rubber Balloons
Ship Launching Black Marine Air Bag 2.0*20m Inflatable Rubber Balloons
Ship Launching Black Marine Air Bag 2.0*20m Inflatable Rubber Balloons
Ship Launching Black Marine Air Bag 2.0*20m Inflatable Rubber Balloons
Ship Launching Black Marine Air Bag 2.0*20m Inflatable Rubber Balloons
Ship Launching Black Marine Air Bag 2.0*20m Inflatable Rubber Balloons
Specifications
Brand Name :
LuHang
Model Number :
LH212
Certification :
CCS/BV/ABS/SGS
Place of Origin :
Qingdao, China
MOQ :
1 Unit
Price :
To be negotiated
Payment Terms :
T/T, L/C
Supply Ability :
200 Units Per Month
Delivery Time :
10-15 work days
Packaging Details :
Folded and Packed on Pallet
Material :
Natural Rubber
Color :
black
Construction :
tyre cord layer
Layers :
4 / 5 / 6 / 7 / 8 / 9 / 10
Size :
Depend On Your Need
Part :
Marine Airbag
Diameter :
0.8 /1.2 / 1.5 / 1.8 / 2.0 / 3.0 / 4.0m
Highlight :
Inflatable Marine Airbags, Airbags For Shipping Containers, Ship Docking Marine Rubber Airbag
Application :
Salvage,heavy Lifting,ship Launching,floating,landing
Packing :
Standard Package
Logo :
Customized
Feature :
Strong, Air Tight, High Safety
Length: :
12 M / 15m / 18m / 20m / 24m Customize
Description
Marine Air Bags Ship Launching Black 2.0 x 20m Inflatable Airbag Rubber Balloons

Products introduction

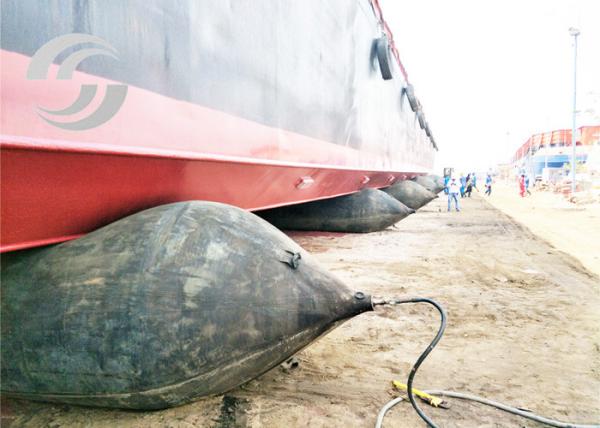

LuHang ship launching airbag is specially designed for launching technology development, the main function is carrying or pulling the ship launching uphill, has a very high load capacity, wear resistance and corrosion resistance to seawater.

1 . The Uuter Rubber Layer
The outer rubber layer that covers the outside of marine airbag to protect under layers from abrasion and other external forces. This compound has sufficient tensile and tearing strength to withstand any condition and hard usage.

2 . The Inner Rubber Layer
The inner rubber layer seals pressurized air inside marine airbags.



3 . The Synthetic-Tire-Cord Layer


The reinforcement cord layers, which are made of synthetic-tire-cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and distribute stress evenly. So they can provide strong efficient reinforcement.


Performance Calculation Principle of Airbags


The bearing capacity of marine airbags was calculated based on the working pressure, contact area. Herein, working pressure was got upon the burst pressure and safety working factor.

Because of the flexibility of marine airbag the contact area will be affected by some terms which include the carried ship condition, the different position from gravity center during the process of ship launching and pulling. So the bearing capacity of airbags will vary as well as the contact area.

The approximate bearing capacity can be calculated as follows:

F=PS
S=π x (D1-D2)/2

Mark:
F: Bearing capacity

P: Inner pressure

S: Contact area

D1: Diameter of airbags when free of loat

D2: Working height of airbags when loaded
Ship Launching Black Marine Air Bag 2.0*20m Inflatable Rubber Balloons
Specification:

Diameter Safe working pressure Work high The bearing capacity
KN/M T/M
D=1.5M 0.11MPa 0.9m 103.79 10.58
0.8m 121.06 12.34
0.7m 138.32 14.1
0.6m 155.59 15.86
0.5m 172.85 17.62
D=1.8M 0.09MPa 1.1m 99.08 10.1
1.0m 113.21 11.54
0.9m 127.33 12.98
0.8m 141.46 14.42
0.7m 155.59 15.86
0.6m 169.71 17.3
D=2.0M 0.08MPa 1.2m 100.65 10.26
1.1m 113.21 11.54
1.0m 125.76 12.82
0.9m 138.32 14.1
0.8m 150.88 15.38
0.7m 163.43 16.66
0.6m 175.99 17.94


Ship Launching Black Marine Air Bag 2.0*20m Inflatable Rubber Balloons
Ship Launching Black Marine Air Bag 2.0*20m Inflatable Rubber Balloons

Our Services


Why do customers like to choose us?

1. Value for Money, you will get the best price based on the excellent quality.

2. Unrivalled Expertise, we promise first-rate product quality and service.

3. Good product lifespan and quality warranty, our products has a long servicing life for 10-15years.

4. Professional after-sales service. We will help our customers to solve any product's questions within 24 hours.

5. For our customers, we will provide a set of repaire tools with free.


Qingdao Luhang Marine Airbag and Fender Co.,Ltd is located in Jidong Industrial Park, Jimo City, Qingdao. We are a professional manufacturer of multi-purpose marine equipment including ship launching and landing airbag, pneumatic rubber fender, EVA foam filled fender, marine buoys in deep and shallow seas etc. Through many years’ development and accumulation, we have developed to a new high-tech enterprise with an integration of scientific research and design, product R&D,sales and technical service. With advanced manufacturing equipment, strict QC,we are supplying high quality products and after-sale service and widely appraised by domestic and overseas customers.
