8 Layers Marine Rubber Airbags Barge Lifting And Launching
8 Layers Marine Rubber Airbags Barge Lifting And Launching
Specifications
Brand Name :
LuHang
Model Number :
1.5m x 15m
Certification :
CCS, BV, LR
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, L/C
Supply Ability :
100pcs/month
Delivery Time :
20 days
Packaging Details :
folded on pallet
Material :
Natural Rubber and Nylon Cord
Working Pressure :
0.15mPa
Diameter :
1m, 1.2m, 1.5m, 1.8m, 2m, 2.2m, 2.5m ,3m
Effective Length :
from 5m to 30m
Application :
Launching and Docking barges
Description

8 Layers Barge Lifting and Launching Marine Airbags

Marine airbags are newly innovative devices for lifting and launching barges and ships nowasdays. The technology of launching and lifting barges by rubber airbags was developed being based on Slipway launching technology.Luhang marine airbags are pliable and tough. It supples moderate force to keep ship stable and not be damaged when ship launching.Luhang rubber airbags are designed for higher load capacity, wear resistance and Seawater corrosion resistance.Luhang marine rubber airbags are not only just used for barge lifting, launching & docking,but also be widely used for Salvage operations,Transfer heavy structure,Storage and transport some Gas or liquid,Erection of bridge and Water pipe Floating.

8 Layers Marine Rubber Airbags Barge Lifting And Launching

8 Layers Marine Rubber Airbags Barge Lifting And Launching

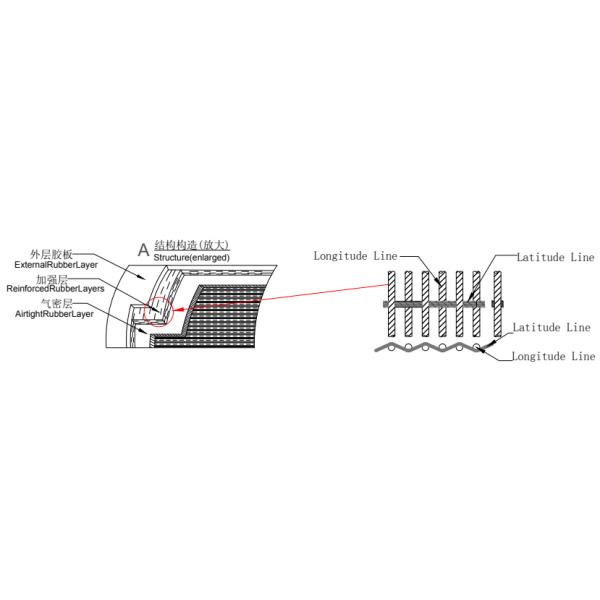

The structure of Barge Lifting and Launching Marine Rubber Airbag

A marine airbag consists of three parts:

1.The mouth: a set of metal valves mounted on both ends of the airbags for charging air. One end is often mounted to a lug to pull the airbags under the vessels.

2.The head: A conical part connecting the body and the mouth of the airbag

3.The body: The cylindrical part of the airbag after inflation(effective length of an airbag)

8 Layers Marine Rubber Airbags Barge Lifting And Launching

8 Layers Marine Rubber Airbags Barge Lifting And Launching
