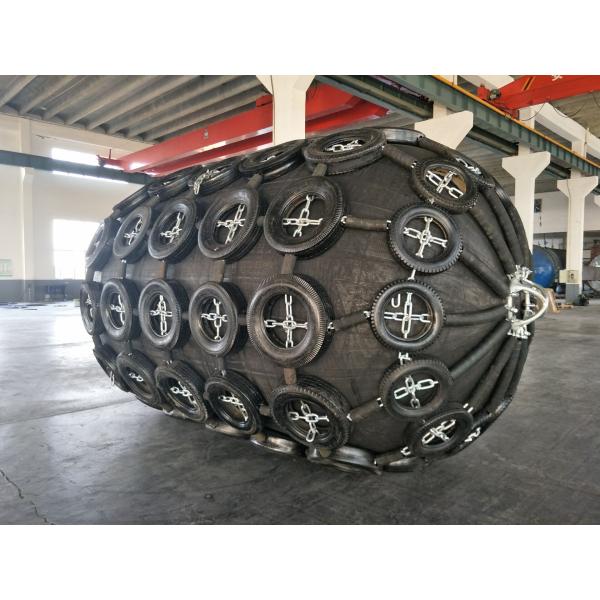

Ship Yokohama Pneumatic Fender 50kPa And 80kPa Pressure
Ship Yokohama Pneumatic Fender 50kPa And 80kPa Pressure
Specifications
Brand Name :
LuHang
Model Number :
LH2540
Certification :
CCS BV Certification ISO17357 ISO9001
Place of Origin :
Qingdao, China
MOQ :
1 Unit
Payment Terms :
T/T, L/C
Supply Ability :
30 Units Per Month
Delivery Time :
10-15 work days
Packaging Details :
Inflated or Deflated on Pallet
Material :
Rubber
Fender Type :
Yokohama Type Pneumatic Rubber Fender
Initial Pressure :
50kPa and 80kPa
Chain Tyre Net :
Truck or Aircraft Tyres
Price :
To be negotiated
Part :
Pneumatic Rubber Fender
Feature :
No Air Leakage, Low Reaction, Low Cost
Type :
50kPa Or 80kPa
Specification :
Dia 0.5m-4.5m, L 0.7m-9m/Customized
Application :
Application
Packing :
Nude Packing/As Requirement
Highlight :
Yokohama Ship Fenders, Yokohama Bumpers
Description

Pneumatic Rubber Ship Fender

Brief Introduction

Qingdao Luhang Pneumatic rubber fender is a world-leading anti-collision product.Compliance with ISO17357-1:2014.It is made of synthetic-tire-cord layers, with compressed air, can float on the surface of the medium as a protection. Pneumatic tuber fender can absorb lots of energy, Reduce the effect on the surface of the ship, mainly used for all kinds of ship,submarine,dock and offshore platform protection,transfer operations and Berthing operation.

Ship Yokohama Pneumatic Fender 50kPa And 80kPa Pressure

Features on Pueumatic Rubber Ship Fenders:

1. Soft Reaction Force for Ship and Jetty Structure

The reaction force of Yokohama Pneumatic Rubber Ship Fenders does not increase sharply, even under excess load conditions. Therefore, the Yokohama Pneumatic Rubber Fenders perform well in such cases, and protect ships and mooring facilities.

2. Advantages at Inclined Berthing

Yokohama Pneumatic Ship Fenders, energy absorption does not decrease at inclined compression up to 15 degrees. Distribution of load is also comparatively even because of the molecular freedom of air and high flexibility of the multi-layered cord-reinforced rubber membrane. This makes the body of a pneumatic rubber fender more shape conformant compared to solid or foam fenders, and thus able to better distribute the load along the hull of a ship or jetty structure during inclined compression.

Size and Performance

Pneumatic Rubber Ship Fender Size and Performance

Pneumatic Fender Size 50kPa at 60% compression 80kPa at 60% compression
GEA KJ RF KN GEA KJ RF KN
0.5m x 1m 6 64 8 80
0.7m x 1.5m 17 137 21 171
1.0m x 1.5m 32 181 40 266
1.2m x 2.0m 63 297 79 371
1.35m x 2.5m 100 426 125 533
1.5m x 3.0m 153 579 191 724
1.7m x 3.0m 190 637 238 796
2.0m x 3.5m 308 875 385 1094
2.5m x 4.0m 663 1380 829 1725
2.5m x 5.5m 932 2010 1165 2513
3.0m x 5.0m 1050 2030 1313 2538
3.3m x 6.5m 1814 3015 / /
4.5m x 9.0m 4752 5747 / /
