Super Cell Rubber Fender
Super Cell Rubber Fender
Super Cell Rubber Fender
Super Cell Rubber Fender
Specifications
Brand Name :
Qingdao luhang
Model Number :
LH-6
Certification :
CCS,BV,LR,DNV,SGS,ABS
Place of Origin :
china
MOQ :
1 units
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
negotiable
Delivery Time :
8 work days
Description

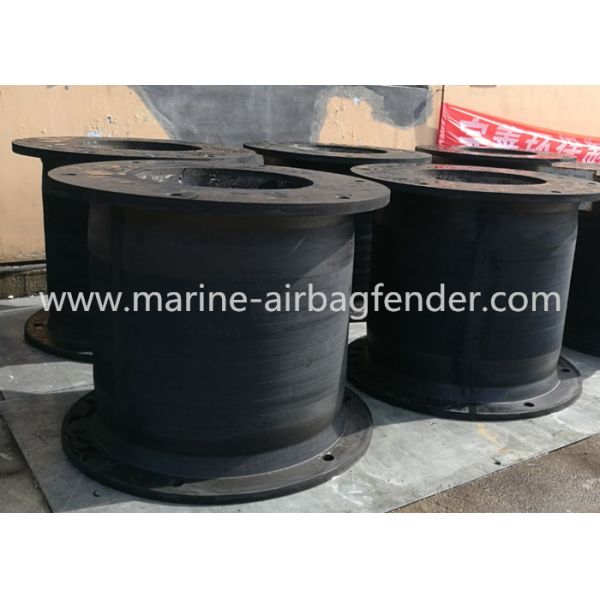

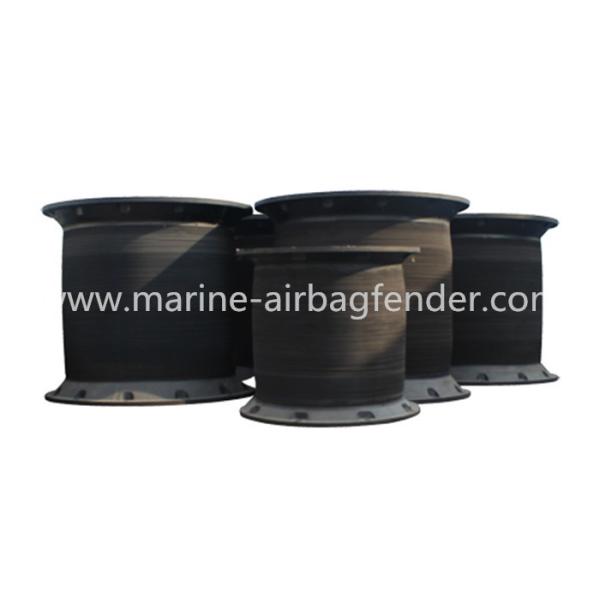

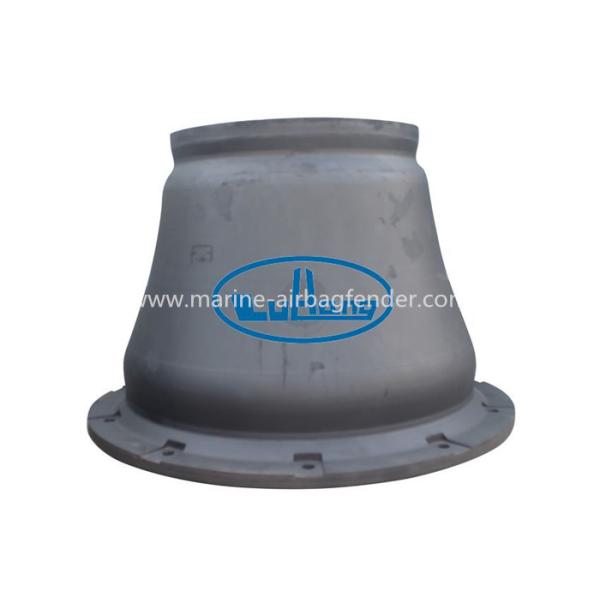

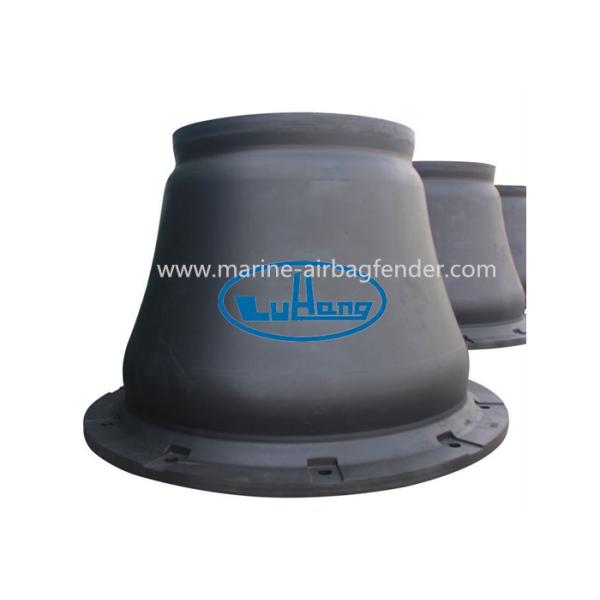

The structure of the drum solid rubber fender has been continuously improved to become more simple, high performance and strong. The mounting dimensions remain the same, so they can be interchangeable with many of the older drum fenders.

Drum solid rubber fender is a mature rubber fender type with hollow cylinders and mounting flanges fully embedded in rubber. It is designed to deflect up to 52.5% in the axis (design deflection). Drum solid rubber fenders have a long track record and remain popular because of their ease of operation, high performance and strength. Drum solid rubber fenders are available in a variety of standard sizes and are interchangeable with many older Marine fenders. The height is between 400 and 3,000 mm.

PRODUCT DETAILS

spec. H Φ1 Φ2 n Φd MD L Ref.Weight(kg)
500H 500 550 650 4 32 24 300 111
630H 630 700 840 4 39 30 330 230
800H 800 900 1050 6 40 32 360 412
1000H 1000 1100 1300 6 47 39 430 825
1150H 1150 1300 1500 6 50 42 500 1210
1250H 1250 1450 1650 6 53 45 500 1500
1450H 1450 1650 1850 6 61 52 570 2310
1600H 1600 1800 2000 8 61 52 570 3030
1700H 1700 1900 2100 8 66 56 620 3700
2000H 2000 2000 2200 8 74 64 700 5260
2250H 2250 2300 2550 10 74 64 700 7500
2500H 2500 2700 2950 10 74 64 700 10750
3000H 3000 3150 3350 12 90 76 800 18500

Super Cell Rubber FenderSuper Cell Rubber FenderSuper Cell Rubber FenderSuper Cell Rubber FenderSuper Cell Rubber Fender

Easy to assemble and install.

High energy absorption, low reaction force.

The front panel can reduce the surface pressure on the ship, and the surface pressure can be controlled below 200KN/㎡, which is suitable for large ships to berthing.

The UHMW-PE pad is fixed to the front panel to reduce the coefficient of friction between the ship and the fender system, effectively extending the service life of the fender system by reducing the shear force.

Solid drum rubber fender has excellent multi-directional angular performance.

Economical and efficient: Large footprint allows for good load distribution on the front panel, resulting in a lighter panel structure.

Part name Apply Materials
Fender Absorb ship berthing energy, protect dock and ship. Rubber
Veneer
Face mat		 Reduce surface pressure, withstand the reaction force generated by the fender, and increase the contact area. Q235 Color painting
Q235 Hot dip galvanizing
Pastry mat Reduce the coefficient of friction to protect the hull. Ultra high molecular weight polyethylene
Prebuilt set Preload bolts and nuts Secure the fender to the base. Stainless steel (or Q235)
Preset U-ring Connect the chain. Q235 Color painting,
Q235 Hot dip galvanizing
Connecting rod bolts, nuts Connect kits such as fenders and panels. Stainless steel or hot-dip galvanizing
Chain Counterweight chain Support the panel to avoid sagging. Q235 Hot dip galvanizing or baking paint
Tension chain Limit fender deflection while underloading. Q235 Hot dip galvanizing or baking paint
Shear chain Prevent fender shear deflection. Q235 Hot dip galvanizing or baking paint

ADVANTAGES AND PERFORMANCE OF DRUM SOLID RUBBER FENDER

spec. Rated Compression Deflection 52.5%
RE RS RH RO RL
R E R E R E R E R E
500H 182 40.2 162 35.6 140 30.1 108 23.4 86.3 17.8
630H 290 80.4 258 71.6 224 61.7 172 47.1 137.5 38.2
800H 464 163 412 145.2 355 124.6 275 96.1 211 74.5
1000H 737 324 655 287 567 249 436 191 349 153
1150H 975 492 865 437 750 379 578 291 462 233
1250H 1153 632 1022 561 886 486 682 374 546 299
1450H 1551 987 1376 876 1193 760 918 585 735 468
1600H 1888 1326 1676 1177 1453 1020 1117 786 894 628
1700H 2131 1591 1892 1413 1640 1224 1262 941 1009 753
2000H 2941 2591 2619 2300 2270 1994 1746 1534 1398 1227
2250H 4145 4095 3679 3628 3188 3150 2454 2424 2085 2060
2500H 5118 5618 4543 4987 3937 4322 3028 3325 2574 2826
3000H 5687 7456 4314 5676 3677 4897
spec. Max Compression Deflection 55%
RE RS RH RO RL
R E R E R E R E R E
500H 210 42.7 187 37.8 160 32 125 24.9 99 18.9
630H 309 85.3 274 75.5 237 66.7 182 50 146.5 40.2
800H 493 172.6 437 153 378 132 292 102 225 78.4
1000H 784 343 696 304 603 264 463 203 372 163
1150H 1037 521 920 463 798 401 614 309 491 247
1250H 1225 669 1087 594 942 516 725 396 581 316
1450H 1649 1045 1464 928 1269 804 976 619 781 495
1600H 2007 1405 1781 1247 1544 1080 1189 832 950 665
1700H 2266 1685 2012 1495 1743 1300 1342 997 1073 798
2000H 3136 2743 2783 2435 2413 2111 1856 1624 1485 1299
2250H 4406 4337 3911 3848 3390 3336 2607 2566 2216 2180
2500H 5441 5949 4829 5280 4182 4576 3220 3520 2737 2992
3000H 6619 7521 5099 6028 4217 5193

Note:

(1) Negotiation of other performance specifications between the supply and demand parties;

(2) R-reaction force (KN), E-absorption energy (KN-M);

(3)RE- extremely high reaction type, RS- ultra-high reaction type, RH- high reaction type, RO- standard

Reaction type, RL- low reaction type;

4) Performance tolerance :10%.

RE: Very high reaction force

RS: Super high reaction force

RH: High reaction force

RO: Standard reaction force

RL: Low reaction force

R: Reaction force

E: Energy absorption

Rated deflection: 52.5%

Maximum deflection: 55%
