Marine Cone Fender
Marine Cone Fender
Marine Cone Fender
Marine Cone Fender
Marine Cone Fender
Marine Cone Fender
Marine Cone Fender
Marine Cone Fender
Marine Cone Fender
Marine Cone Fender
Specifications
Brand Name :
Lu Hang
Model Number :
LH2540
Certification :
CCS/BV/ABS/SGS
Place of Origin :
Qingdao, China
MOQ :
1 Unit
Price :
To be negotiated
Payment Terms :
T/T, L/C
Packaging Details :
Container
Delivery Time :
10-15 work days
Description

Marine Cone Fender

Introduction

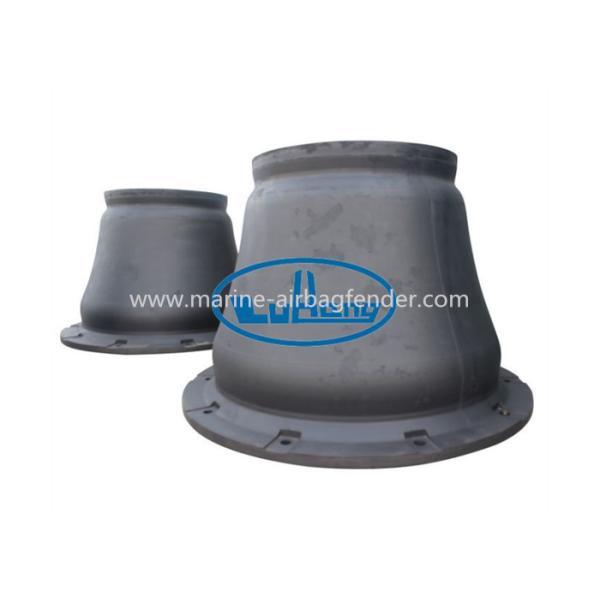

Marine Cone Fender

Cone Fender is the latest generation of"Cell Fender"combining excellent energy capacity with low reaction force to give the most efficient performance.The conical shape keeps the fender body stable under all combinations of axial, shear and angular loading.Hence,it is ideal for berths where large berthing angles and heavy impacts need to be accommodated.All Cone Fenders are single piece mouldings so they are robust,long lasting and easy to install.In most projects,the frontal frame is generally used in conjunction with Cone Fender System.Generally the frontal frame is consist of Steel Panel and UHMW PE Pads.Cone Fenders also have been used with great success behind fender piles,in Parallel Motion Fender Systems and for numerous other applications.

Features

Highly efficient structure

Stable performance under large berthing angles and shears

Versatile design suits various applications

Multiple rubber compounds achieve various performances

Easy installation

Applications

Tanker Berths

Container Terminals

RoRo &Cruise Berths

BulkCarrier Terminals

Dolphins &Monopiles

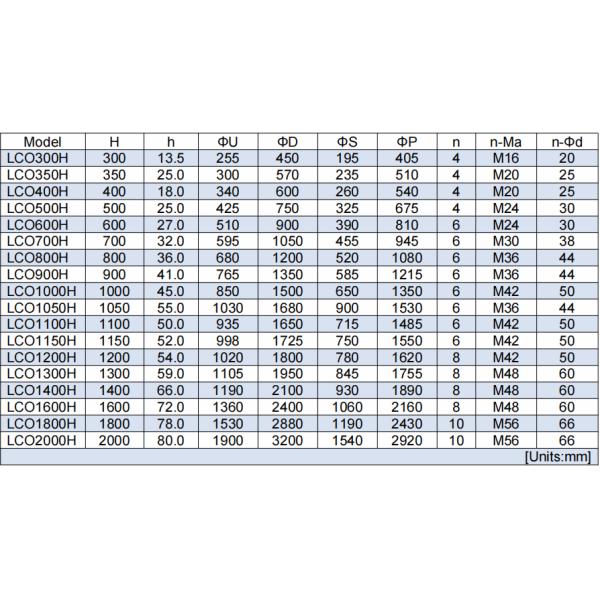

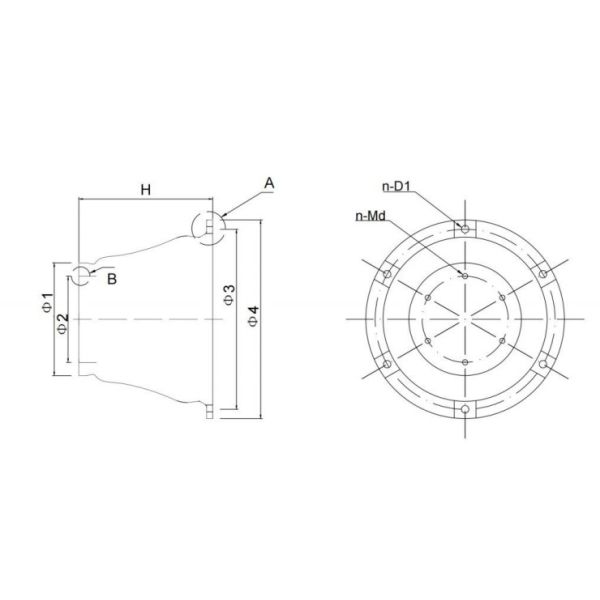

Dimensions

Marine Cone Fender

Marine Cone Fender

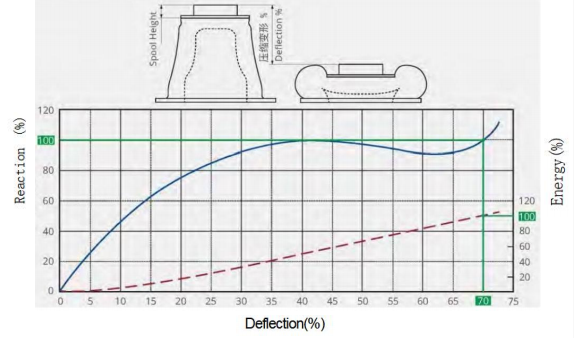

Performance Curve

Marine Cone Fender

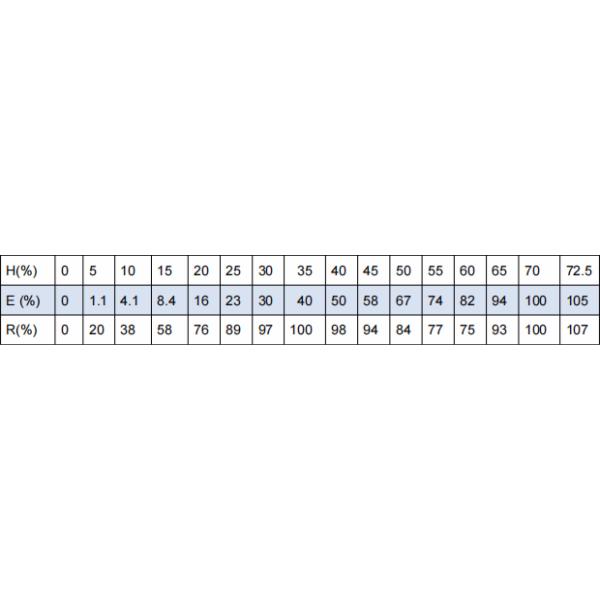

Deflections

Marine Cone Fender

Marine Cone Fender

For example, when the compression deformation is 30%, H1 = 30%, R1 = 97%, and E1 = 30%.
Reaction force: R(30%) = R × R1 = R × 97%
Energy absorption: E(30%) = E × E1 = E × 30%
For instance, when the deflection is 30%, then H1 = 30%, R1 = 97%, and E1 = 30%.
Reaction force: R(30%) = R × R1 = R × 97%
Energy absorption: E(30%) = E × E1 = E × 30%

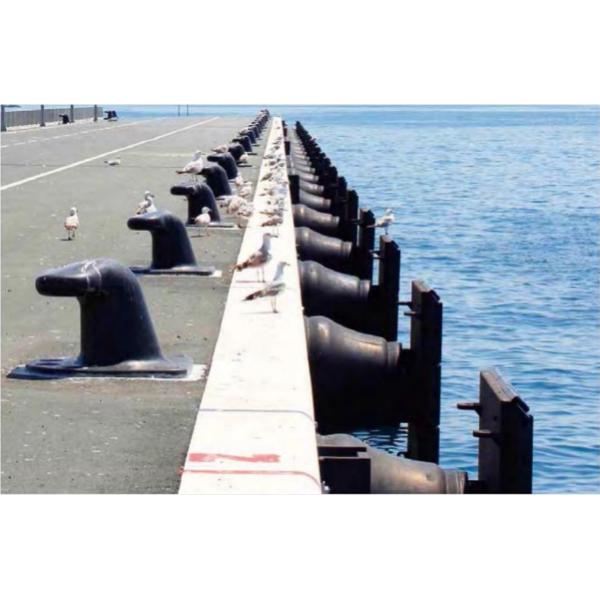

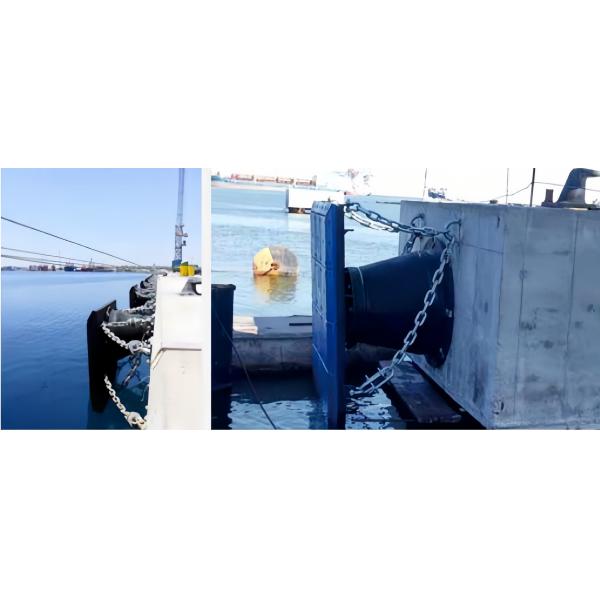

Proven In Practice

Marine Cone Fender

Marine Cone Fender
