78MM In Stock Anchor Chain-China Shipping Anchor Chain
78MM In Stock Anchor Chain-China Shipping Anchor Chain
78MM In Stock Anchor Chain-China Shipping Anchor Chain
78MM In Stock Anchor Chain-China Shipping Anchor Chain
78MM In Stock Anchor Chain-China Shipping Anchor Chain
78MM In Stock Anchor Chain-China Shipping Anchor Chain
Specifications
Brand Name :
China Shipping Anchor Chain
Model Number :
78MM Anchor Chain
Certification :
KR LR BV NK CCS ABS DNV-GL RMRS IRS RINA
Place of Origin :
China
MOQ :
1T
Price :
880~950USD
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
2200T/month
Delivery Time :
1~5days
Packaging Details :
78MM Anchor Chain in bundle with steel wire rope nude packing
size :
78MM Anchor Chain
Type :
Studlink Anchor Chain
Useage :
Anchor Chain In Stock
Surface :
Shot Blasting
Material :
M3
Stock :
Keep Some Size In Stock Details Please Contact
Description

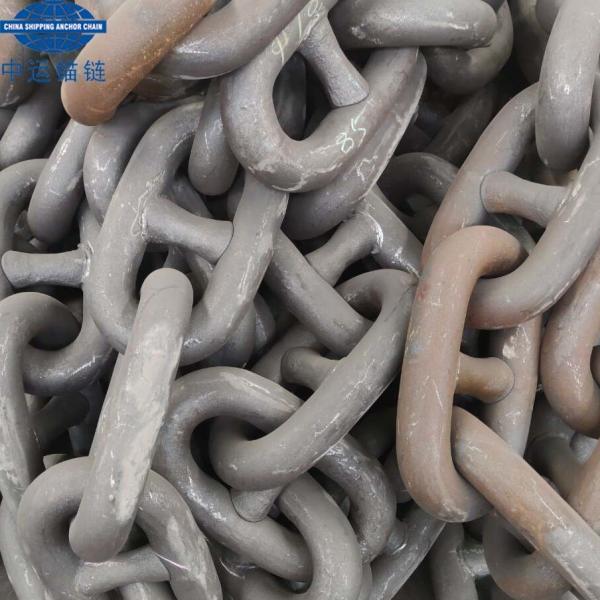

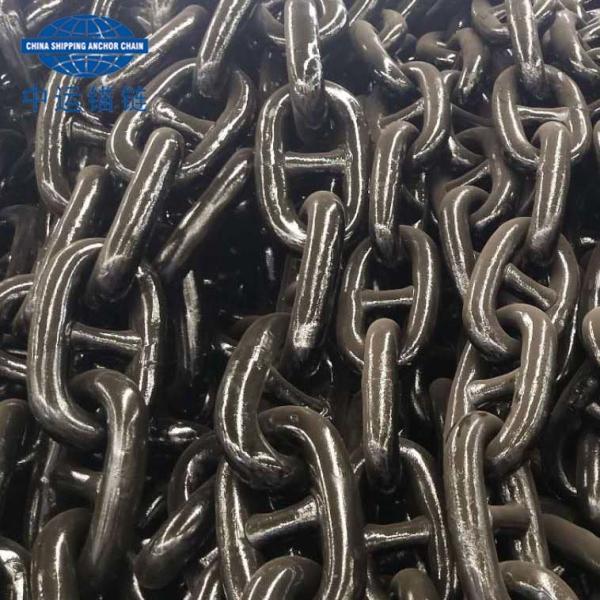

78MM Anchor Chain In Stock -China Shipping Anchor Chain

Name 78MM Anchor Chain
Type Studlink Anchor Chain
Grade Grade U3
Link size 468MM outlength, 312mm width
Proof load 3160KN
Breaking Load 4500KN
Length 25M 27.5M 55M
Certificate LR BV ABS CCS KR NK ...
Shackles Kenter Shackle, End Shackle, Swivel Group
Stock about 10~24length in stock for details please contact our sales team
Matched Anchor 7875KG AC-14
Quantity normally need 24 length for one vessel

And we keep some length of 78MM Anchor Chain and Kenter Shackle, End Shackle, Swivel Group with IACS cert. 27.5M or 55M per length in stock which can fast delivery in 1~3days to meet your urgently inquirement.

China Anchor Chain Factory Fast Delivery,China Shipping anchor chain factory, manufacturer, supplier, China Anchor Chain, Stud Link Anchor Chain Factory Fast Delivery,stockiest,for sales,DNV GL BV ABS LR CCS NK KR Class

Anchor Chain Technical Data

78MM In Stock Anchor Chain-China Shipping Anchor Chain

78MM In Stock Anchor Chain-China Shipping Anchor Chain

Nominal Diameter (mm) Proof Test Load (kN) Breaking Test Load (kN)
Grade 2 Grade 3 Grade 4 Grade 2 Grade 3 Grade 4
17.5 127 179 179 256
19 150 211 211 301
20.5 175 244 244 349
22 200 280 280 401
24 237 332 332 476
26 278 389 389 556
28 321 449 449 642
30 368 514 674 514 735 933
32 417 583 764 583 833 1057
34 468 655 859 655 937 1189
36 523 732 960 732 1050 1327
38 581 812 1065 812 1160 1473
40 640 896 1176 896 1280 1626
42 703 981 1291 981 1400 1786
44 769 1080 1411 1080 1540 1952
46 837 1170 1536 1170 1680 2125
48 908 1270 1666 1270 1810 2304
50 981 1370 1800 1370 1960 2490
52 1060 1480 1940 1480 2110 2683
54 1140 1590 2083 1590 2270 2882
56 1220 1710 2231 1710 2430 3086
58 1290 1810 2384 1810 2600 3297
60 1380 1940 2541 1940 2770 3514
62 1470 2060 2702 2060 2940 3737
64 1560 2190 2867 2190 3130 3966
66 1660 2310 3036 2312 3300 4200
68 1750 2450 3210 2450 3500 4440
70 1840 2580 3387 2580 3690 4686
73 1990 2790 3661 2790 3990 5064
76 2150 3010 3943 3010 4300 5454
78 2260 3160 4136 3160 4500 5721
81 2410 3380 4432 3380 4820 6130
84 2580 3610 4735 3610 5160 6550
87 2750 3850 5047 3850 5500 6981
90 2920 4090 5366 4090 5840 7423
92 3040 4260 5583 4260 6080 7723
95 3230 4510 5914 4510 6440 8180
97 3340 4680 6138 4680 6690 8491
100 3530 4940 6480 4940 7060 8964
102 3660 5120 6712 5120 7320 9285
105 3850 5390 7065 5390 7700 9774
107 3980 5570 7304 5570 7960 10104
111 4250 5940 7789 5940 8480 10775
114 4440 6230 8160 6230 8890 11288
117 4650 6510 8536 6510 9300 11808
120 4850 6810 8917 6810 9720 12335
122 5000 7000 9174 7000 9990 12690
124 5140 7200 9433 7200 10280 13048
127 5350 7490 9825 7490 10710 13591
130 5570 7800 10222 7800 11140 14140
132 5720 8000 10488 8000 11420 14509

China Anchor Chain Factory Fast Delivery,China Shipping anchor chain factory, manufacturer, supplier, China Anchor Chain, Stud Link Anchor Chain Factory Fast Delivery,stockiest,for sales,DNV GL BV ABS LR CCS NK KR Class

78MM In Stock Anchor Chain-China Shipping Anchor Chain78MM In Stock Anchor Chain-China Shipping Anchor Chain78MM In Stock Anchor Chain-China Shipping Anchor Chain

78MM In Stock Anchor Chain-China Shipping Anchor Chain

Stud Link Anchor Chain Factory Manufacture Supplier Wholesaler Anchor Chain Marine Anchor Chain with KR LR BV NK CCS RMRS RINA DNV ABS GL

Also can offer High Holding Power Anchor Stockless Anchor AC-14 Anchor, MK5 Anchor, Flipper Delta Anchor, Danforth Anchor, Pool Anchor, SpekAnchor, Hall Anchor
