ABB TPS52-F32 Two Hole Turbine Casing Design 51000 Casing In Turbine
ABB TPS52-F32 Two Hole Turbine Casing Design 51000 Casing In Turbine
Specifications
Brand Name :
ABB
Model Number :
TPS52-F32
Certification :
Product Certification CCS ABS DNV BR KR EC
Place of Origin :
China Original
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
500 Pcs Per Month
Delivery Time :
1-5 working days according to the parts of different specifications
Packaging Details :
Wooden Package,Plywood Case,Carton,Neutral Packing
Brand :
ABB
Type :
TPS52-F32
Name :
Turbine Casing
P/N :
51000
EXW :
Shanghai Of China
Hole Number :
Two
Description

ABB TPS52-F32 Two Hole Turbine Casing Design 51000 Casing In Turbine

Description:

As to ABB TPS52-F32 Two Hole Turbine Casing Design 51000 Casing In Turbine, the shell body com–

prises a first end, a second end and a central region, wherein the shell body includes an inner cavity

through which the inner cavity gradually shrinks from a first larger section at and / or in the regions of

the first end and the second end toward the central region to a second smaller section. The turbine casing

may include a fluid flow limiting device, which is arranged to limit the fluid velocity, direction or position in the

turbine casing.

Specifications:

Brand ABB
Type TPS52-F32
Name Turbine Casing
P/N 51000
MOQ 1
Price Negotiable
Payment term T/T,L/C
Supply Ability 500 Pcs Per Month
Packaging Detials Wooden Package, Plywood Case, Carton, Neutral Packing
Place of Origin China Original

About ABB TPS52-F32 Two Hole Turbine Casing Design 51000

The turbine hood is an essential component of TPL-A and TPL-C turbochargers. It has two main functions:

First, to protect the bearing casing from the high temperatures caused by the exhaust gases and, second, to

guide the exhaust gas with minimum losses through the gas outlet casing.

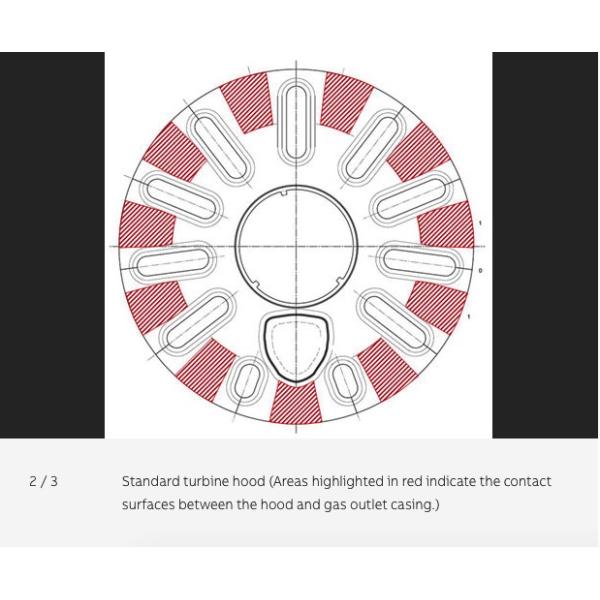

To allow for thermal expansion of the sheet metal, the turbine hood is clamped between the bearing casing

and gas outlet casing (see figure below).

ABB TPS52-F32 Two Hole Turbine Casing Design 51000 Casing In Turbine

ABB TPS52-F32 Two Hole Turbine Casing Design 51000 Casing In Turbine

ABB TPS52-F32 Two Hole Turbine Casing Design 51000 Casing In Turbine

The turbine hood is designed to ensure it remains properly clamped over the complete lifetime of the turbo-

charger. However, vibration, an increase in the number of load changes or turbine-side cleaning cycles can

cause wear at the clamping shoulders of the bearing casing and the gas outlet casing. Increased wear causes

a reduction in the clamping force, which could result in uncontrolled movement of the turbine hood.

Part List:
51000 Turbine casing
51002 Fastening strips
52400 Gas outlet flange
52406 (in customer spare part set) Gasket
52408 Metal C-ring
56001 Nozzle ring
56005 rupture ring
57210 Burst ring
XHL453866R1#SERVICE KIT 5
XHL453799R1#SERVICE KIT 6#
97070 Service Kit 1
97076 Service Kit 2
97084 SPARE PARTS KIT 6
32109 SOCKET SCREW
32101 plain bearing bush
32111 auxiliary bearing
21002 pistion ring
32108 pistion ring
32222 o-ring
25000 compressor wheel
