Specifications
Brand Name :
MACGREGOR
Model Number :
V150
Certification :
Product Certification CCS ABS DNV BR KR EC
Place of Origin :
China Original
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
500 Pcs Per Month
Delivery Time :
1-10 working days according to the parts of different specifications
Packaging Details :
Wooden Package,Plywood Case,Carton,Neutral Packing
Brand :
MACGREGOR
Type :
V150
P/N :
91
Name :
Tubenest Assembly
Description

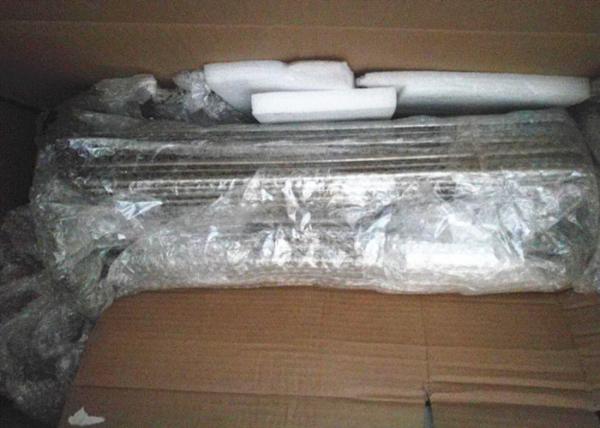

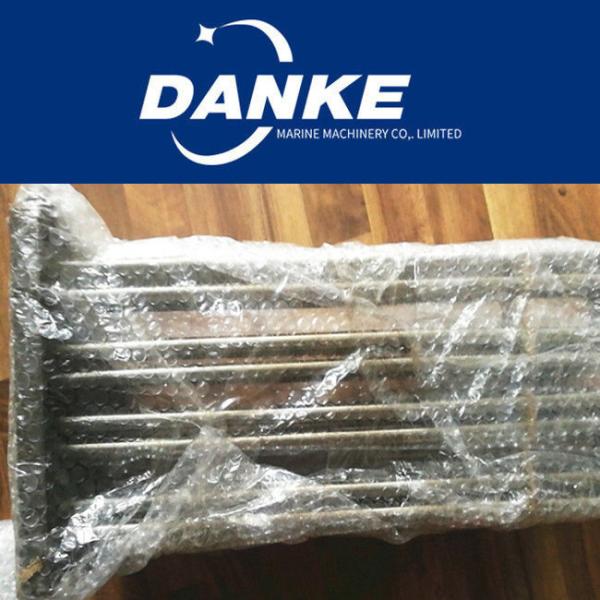

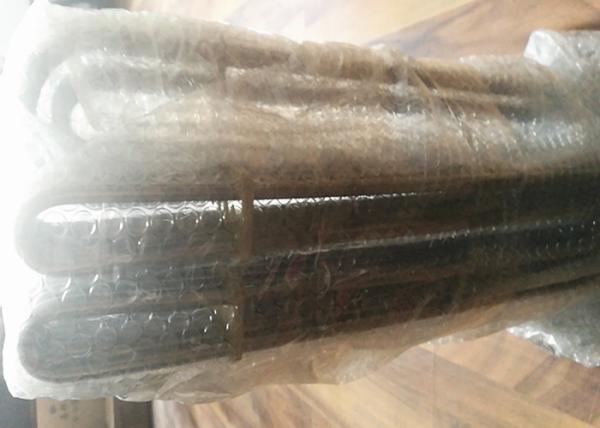

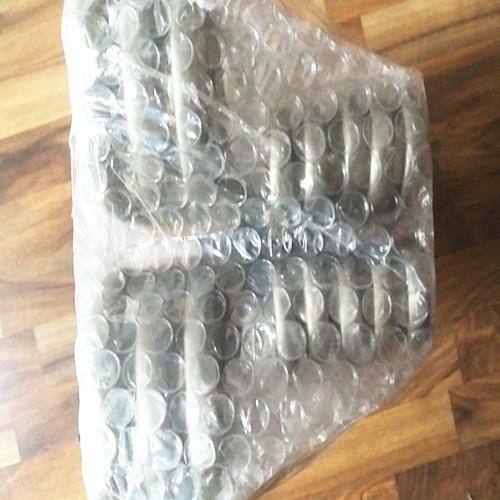

TUBENEST ASSEMBLY MAC MACGREGOR V150 HAMWORTHY V150 MAIN AIR COMPRESSOR

Specifications:

Brand MACGREGOR
Type V150
Delivery Time 1-10 Working Days According To The Parts Of Different Specifications
EXW Shanghai Of China
MOQ 1
Price Negotiable
Payment term T/T,L/C
Supply Ability 500 Pcs Per Month
Packaging Detials Wooden Package, Plywood Case, Carton, Neutral Packing
Place of Origin China Original

MAIN AIR COMPRESSOR
HAMWORTHY MODEL V150
PRESS:29.41bair,CAP:105m³,RPM:1800

TUBENEST ASSY P/N 91

1, PIN SPRING TENSION P/N 3
2, BEARING TAPER ROLLER (MAIN NON DRIVE END) P/N 4
3, BEARING TAPER ROLLER (MAIN DRIVE END) P/N 5
4, OIL SEAL P/N 6
5, O RING (ADJUSTING SLEEVE TO BEARING & CRANKSHAFT) P/N 7
6, SPACER-CONNECTING ROD/SHAFT P/N 18
7, CLAMPING WASHER-C/SHAFTCONN.ROD P/N 22
8, SET SCREW P/N 23
9, TAB WASHER P/N 24
10, BEARING-BIG END CYLINDRICAL ROLLER 1P/N 6
11, CONNECTING ROD (1ST STAGE) P/N 15
12, BEARING-SMALL END NEEDLE ROLLER P/N 17
13, GUDGEON PIN (FIRST STAGE) P/N 40
14, HEXAGON SOCKET SET SCREW P/N 41
15, LOCK NUT P/N 42
16, PISTON (FIRST STAGE) P/N 35
17, PISTON RING S.O.C P/N 36
18, PISTON RING TAPER FACED P/N 37
19, PISTON RING BARREL FACED P/N 38
20, CONNECTING ROD (2ND STAGE) P/N 19
21, BEARING-BIG END CYLINDRICAL ROLLER P/N 20
22, BEARING- SMALL END NEEDLE ROLLER P/N 21
23, GUDGEON PIN (SECOND STAGE) P/N 64
24, SOCKET SET SCREW P/N 65
25, PISTON (SECOND STAGE) P/N 60
26, PISTON RING S.O.C P/N 61
27, PISTON RING TAPPER FACED P/N 62
28, PISTON RING BARREL FACED P/N 63
29, O RING (SECOND STAGE VALVE CAGE BOTTOM GROOVE TO CYLINDER P/N 72
30, O RING (SECOND STAGE CONCENTRIC VALVE TOP FACE TO VALVE CAGE) P/N 77
31, ANTI-EXTRUSION RING (V375 ONLY) P/N 81
32, O RING (SECOND STAGE CONCENTRIC VALVE OUTER GROOVE TO CYLINDER) P/N 76
33, PRESSURE GAUGE (PANEL MOUNT) 0-10 BAR P/N 284
34, PRESSURE GAUGE (PANEL MOUNTH) 0-60 BAR P/N 285
35, Gasket (tubenest to cooler box) P/N 92
36, BOLT/ADJUSTING SCREW P/N 94
