Specifications
Brand Name :
WEITONG MARINE
Model Number :
WT710
Certification :
LR,CCS, DNV-GL,ABS,RINA, BV,RS,KR, NK ect
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
7-15days
Packaging Details :
Nude packing
Material :
Cast steel ZG 230-450H and Q345C
Process :
Casting
Surface :
Galvanized,painted, heat treatment, polishing
Type :
US N Anchor
Shape :
Stockless
Weight :
125KGS to 1500KGS
Description

Marine High Holding Casting Power Hhp Matrosov Anchor for Boat

Description

Matrosol Anchor is one of High Holding Power Anchor, used for marine and offshore filed, the material is high grade casting steel, UT and MT Test and other testing assure high quality and good stability.
Material: Casting Steel
Weight: from 125KGS to 1500KGS

Specification

Product Name: Matrosol HHP Anchors
Material: Cast Steel
Nominal Weight: 125kg-1500kg
Type: Matrosol type anchor
Standard: Specification and Rules of Main Marine Classification Societies
Certificate: ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS
Surface Treatment: Black Painted, Galvanized
High Holding Power Matrosov Anchor Specification
Nominal Weight (KG) Size(mm)
A B C D E
25 130 570 690 385 214 28-30
35 148 620 760 420 230 30-32
50 170 680 840 480 250 30-32
75 190 770 950 540 270 30-32
100 210 830 1060 590 290 30-32
125 226 870 1130 630 310 30-32
150 242 910 1190 670 330 30-32
200 270 980 1300 740 370 30-32
250 294 1040 1380 800 400 33-37
300 312 1090 1480 850 430 33-37
400 342 1190 1630 930 480 33-37
500 366 1280 1750 1000 520 33-37
650 400 1385 1910 1090 565 33-37
750 418 1450 2000 1140 590 33-37
1000 452 1570 2170 1240 630 33-37
1250 488 1660 2280 1300 660 33-37
1500 515 1715 2370 1350 675 33-37

We supply about 20 types of marine anchors, including

Stockless Anchor, HHP anchor marine stock anchor, yacht anchor, and offshore anchor etc., details as bellow:
1) JIS stockless anchor with weight from 50kg to 29000kgs
2) Type A, B and C Hall anchor with weight from 50kg to 8300kgs
3) U. S.N stockless anchor with weight from 45kg to 13608kgs
4) Light weight anchor from 23kgs to 6804kgs
5) JIS stock anchor weight from 150kgs to 4500kgs
6) Admiralty anchor from 50kg to 5000kgs
7) High Holding Power(HHP) Matrosol Anchor from 25kgs to 1500kgs
8) Speck anchor from 100kgs to 18800kgs
9) M type SPEK anchor from 80kgs to 20000kgs
10) AC-14 HHP stockless anchor from 56kgs to 20000kgs
11) Danforth High Holding Power(HHP) anchor from 20kgs to 6000kgs
12) Welding type high holding power(HHP) stockless anchor from 12kgs to 15400kgs
13) BALDT stockless anchor from 23kgs to 15876kgs
14) AR6 and BR6 anchor from 50kgs to 15400kgs

About US
Weitong Marine focus on developing and offering the most competetive marine products for worldwide clients with best service:


1. Quality Assurance & Inspection
We guarantee the quality,not just because we have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake, but also we attach much importance to customers’ satisfactory of product quality. What’s more, Mill Test Certificate can be provided for general products, and most of our products are approved by CCS, ABS, DNV, BV, NKK, KR, LR, GL, RINA etc.

2. Efficiency
Your request is promised to be reponsed within1-12 hours. Our experienced sales team get technical support from our engineer team to ensure swift offer and good communication.

3. On Time Delivery
We have rigorous production schedule and professional follow-up process to control the production time. Clients will be informed about the production process in time. Besides, we cooperate with reliable logistic partners to assure the goods to be delivered to you punctually.

4. Customization
If you need customization service, our experienced engineers are able to design the product as per your request or application.

5. Product Range
All marine equipment, accessories and technique solution can be offered.

6. After sales service
After shipping, we keep tracking the shipment, and once goods arrived, we will positively contact client for feedback.

We always insist on the values of “customer-oriented, integrity first” in global trade business. Whenever you need inquiry or help, you can always turn to Weitong Marine, we are always available to reply with answer or provide help over the phone, by email or other.
Should you have any comment or inquiry, please feel free to contact us for more details
Ms kate
Tel: +86-756-8169003
Phone: +86-13923317268

sales@weitongmarine.com

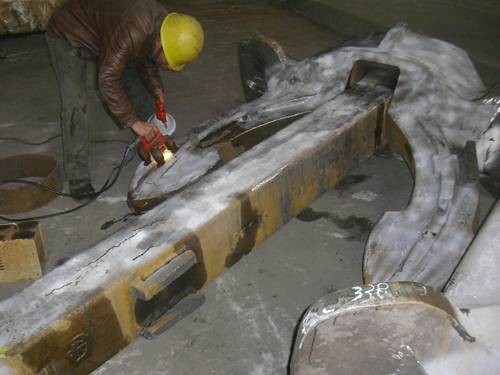

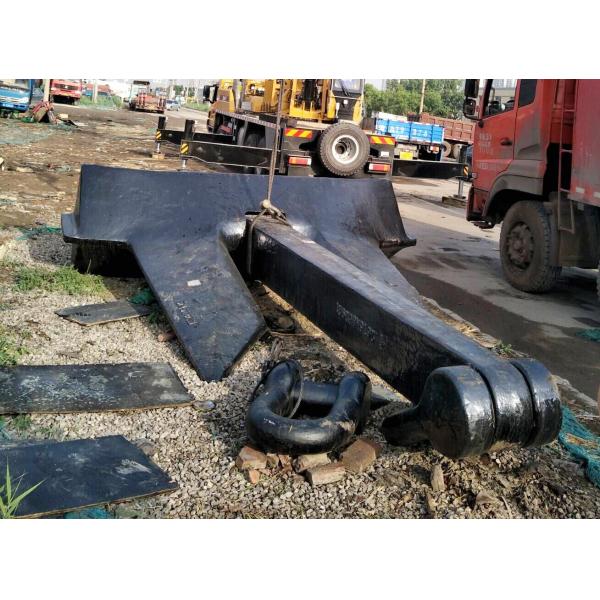

Ohter Product Photos
