Hydraulic Boat Outboard Marine Steering System Kit Cylinder Helm up to 150HP

Winibo ZA0300 marine Hydraulic Outboard Steering System boat steering cylinder helm up to 150HP

Our kits have everything you need to install. You will only need your tools no crimping involved. Quality Winibo brand sold Worldwide

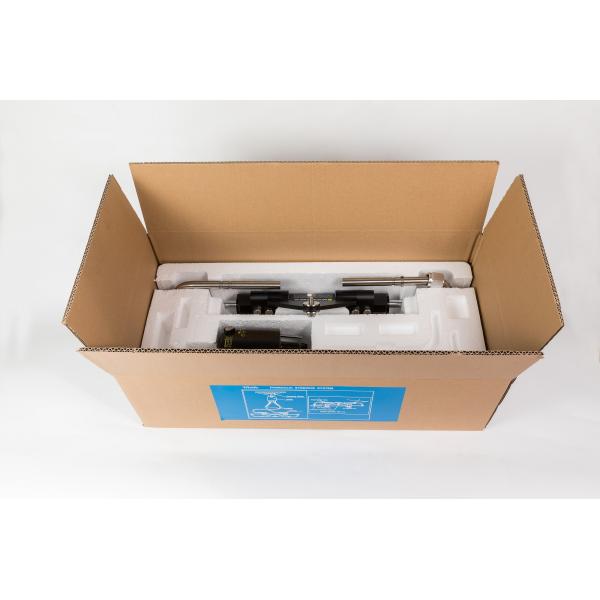

This kit contains the following:

• Helm unit

• Hydraulic ram (front-mounted)

• Hydraulic hose 8 Meter x 2

• Helm fitting 45-degree x 2

• Hydraulic fluid x 2 Litre

• Purging hose

• Filling hose kit

• Instructions

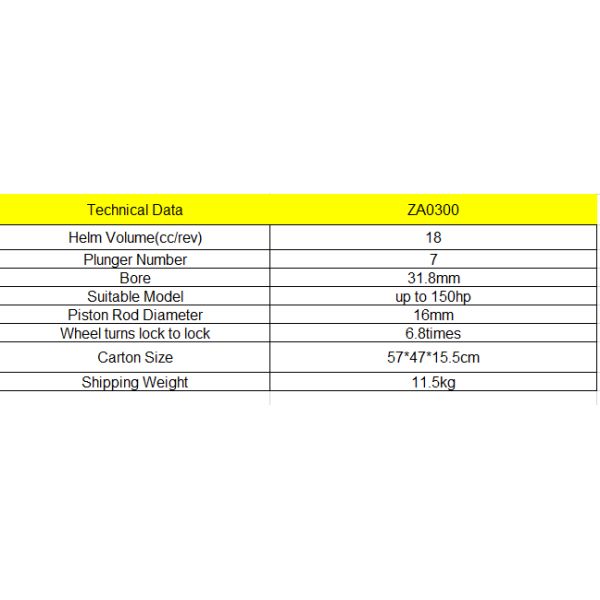

Helm specifications:

• Bore 31.8 mm

• Piston rod diameter 16 mm

• Plungers 7

• Hard over to hard over 6.8 turns

• Steering wheel diameter 320 to 540 mm

Hydraulic ram specifications:

• 18 cc

• Volume 116.9 cc

• Tube ID 31.8 mm

• Rod OD 16 mm

• Output force (kgf /cm2) 409.7

• Stroke 197.3 MM

• Max pressure (KGF/cm2) 69

The steering system in accordance with the (Rules for classification of ships) on the steering gear in the requirements for the design, the use of open-type valve hydraulic system and swing cylinder piston to push the rudder mechanism, with avariety of valve type or autopilot servo steering instrument to match the ship's steering control system components, and undertake the task of changing and maintaining the course of the ship.

This kind can be divided into 3 types:

ZA0301----can be used for 90hp outboard engine

ZA0300--can be used for 90-150hp outboard engine

ZA0350--can be used for 150-300hp outboard engine

The standard of form a complete set: 8m hydraulic pipe, fuel cylinder, fuel pump and connecting accessories. Steering wheel optional (random)

The use of the brands are: YAMAHA, SUZUKI, HONDA, TOHATSU, MERCURY / MARINER, NISSAN.

Our precision marine hydraulic steering kit is a complete replacement for tired, worn out helms. Compatibility with most outboard motors up to 150 hp gives you piece of mind purchasing our kit, knowing you will get many years of enjoyment of your new steering. Hydraulic steering removes the concern of seized cables and gives you effortless steering, just like when your boat was new!
