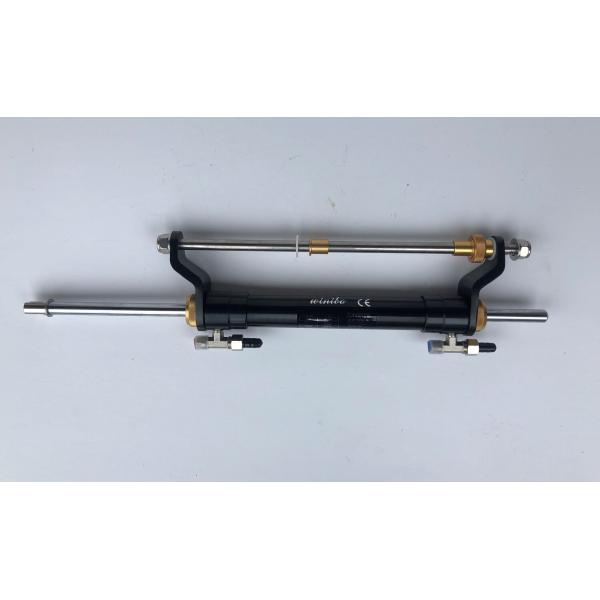

Winibo Marine Hydraulic Outboard Steering Ram / Cylinder To 90 Hp
Winibo Marine Hydraulic Outboard Steering Ram / Cylinder To 90 Hp
Specifications
Brand Name :
Winibo
Model Number :
ZA0301
Certification :
CE
Place of Origin :
China
MOQ :
1Set
Price :
USD120
Payment Terms :
T/T
Supply Ability :
10000 Set/per month
Delivery Time :
7-15 Days
Packaging Details :
Carton Box
Suitable Model :
up to 90HP
Stroke :
213 mm
Bore :
25 mm
Piston Rod Diameter :
14 mm
Cylinder volume :
71.1cc
Output force :
232kgf
Carton Size :
57*47*15.5cm
Shipping Weight :
9.5 kgs
Description

Winibo ZA0301 marine Hydraulic Outboard Steering System boat steering cylinder helm up to 90HP

Quality Winibo brand sold Worldwide.

Will fit outboards up to 90hp

  • Piston rod diameter 14 mm

  • Stroke 213 mm

  • Tube ID 25 mm

  • Rod OD 14 mm

  • Output force 232kgf

  • Cylinder volume 71.1cc

Winibo Marine Hydraulic Outboard Steering Ram / Cylinder To 90 Hp

The steering system in accordance with the (Rules for classification of ships) on the steering gear in the requirements for the design, the use of open-type valve hydraulic system and swing cylinder piston to push the rudder mechanism, with avariety of valve type or autopilot servo steering instrument to match the ship's steering control system components, and undertake the task of changing and maintaining the course of the ship.

This kind can be divided into 3 types:

ZA0301----can be used for 90hp outboard engine

ZA0300--can be used for 90-150hp outboard engine

ZA0350--can be used for 150-300hp outboard engine

The standard of form a complete set: 8m hydraulic pipe, fuel cylinder, fuel pump and connecting accessories. Steering wheel optional (random)

The use of the brands are: YAMAHA, SUZUKI, HONDA, TOHATSU, MERCURY / MARINER, NISSAN.

Our precision marine hydraulic steering kit is a complete replacement for tired, worn out helms. Compatibility with most outboard motors up to 90 hp gives you piece of mind purchasing our kit, knowing you will get many years of enjoyment of your new steering. Hydraulic steering removes the concern of seized cables and gives you effortless steering, just like when your boat was new!

Winibo Marine Hydraulic Outboard Steering Ram / Cylinder To 90 HpWinibo Marine Hydraulic Outboard Steering Ram / Cylinder To 90 HpWinibo Marine Hydraulic Outboard Steering Ram / Cylinder To 90 Hp
