ZA0350V2 219mm 468kg Stroke Hydraulic Outboard Steering Kit With Pump
ZA0350V2 219mm 468kg Stroke Hydraulic Outboard Steering Kit With Pump
ZA0350V2 219mm 468kg Stroke Hydraulic Outboard Steering Kit With Pump
ZA0350V2 219mm 468kg Stroke Hydraulic Outboard Steering Kit With Pump
Specifications
Brand Name :
Winibo
Model Number :
ZA0350V2
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000sets per month
Delivery Time :
7-14days
Packaging Details :
carton box
Cylinder Volume :
141.8cc
Output Force :
468 kg - 1032 lbs
Tube I.D :
35 mm - 1.38"
Piston I.D :
20 mm - 0.79"
Stroke :
219 mm - 8.62"
tube kits :
8 meters
Description

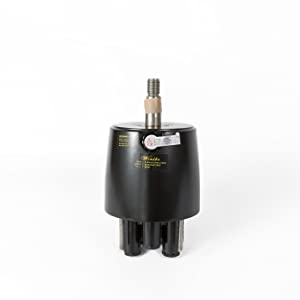

ZA0350V2 Hydraulic Outboard Steering Kit with Pump, Compact Cylinder, Tubing

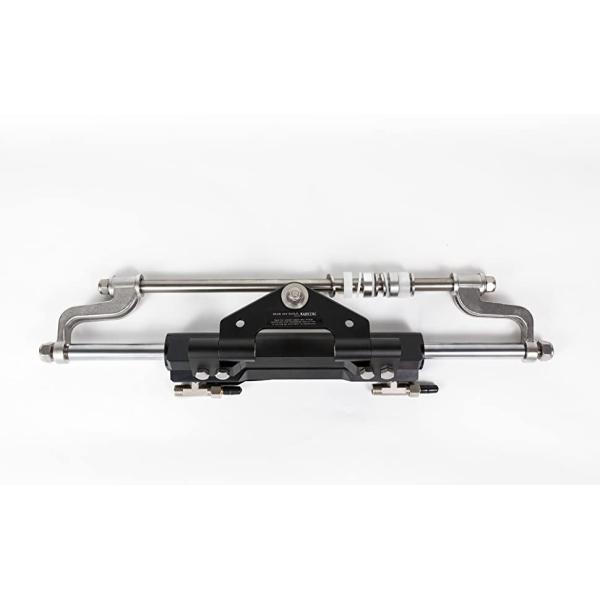

High Performance Front Mount Cylinder

ZA0350V2 219mm 468kg Stroke Hydraulic Outboard Steering Kit With Pump

High Performance Front Mount Cylinder

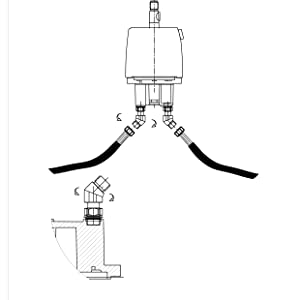

Swiveling fittings for easy installation

High resistance stainless steel connection bolt

The number of turns lock-to-lock is equal port to starboard or vice-versa

For single engine single cylinder, up to 300 hp max

For dual engine single cylinder, up to 600 hp max

For dual engine dual cylinder, up to 600 hp max

For a second station added, need additional helm

Cylinder specification

Volume 141.8cc
Output Force 468 kg - 1032 lbs
Tube I.D 35 mm - 1.38"
Piston I.D 20 mm - 0.79"
Stroke 219 mm - 8.62"
3/8" (9.5mm) Fittings For high pressure flex hose

Cut-to-length Tube

ZA0350V2 219mm 468kg Stroke Hydraulic Outboard Steering Kit With Pump

Tube kits in 24 feet. Can be shorten to the length you desire with quick connectors.

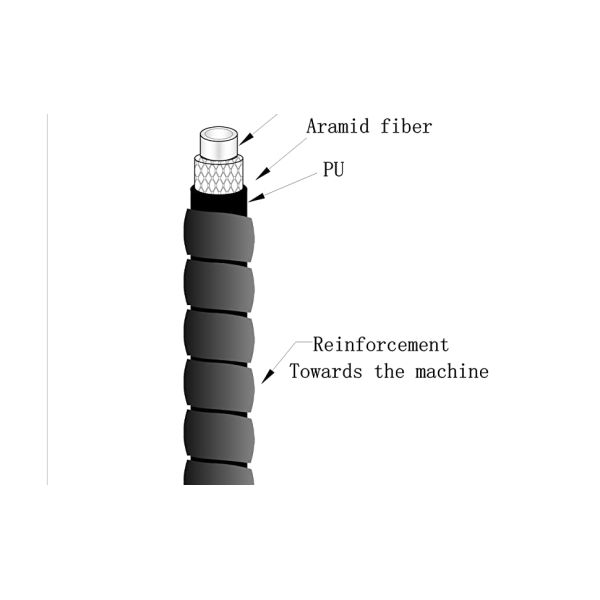

High Strength tubes made in 3 layer

The ends to the cylinder side are reinforced
