16CC Hydraulic Steering Helm Pump WP16NV F For Marine Outboard 90HP
16CC Hydraulic Steering Helm Pump WP16NV F For Marine Outboard 90HP
16CC Hydraulic Steering Helm Pump WP16NV F For Marine Outboard 90HP
16CC Hydraulic Steering Helm Pump WP16NV F For Marine Outboard 90HP
16CC Hydraulic Steering Helm Pump WP16NV F For Marine Outboard 90HP
16CC Hydraulic Steering Helm Pump WP16NV F For Marine Outboard 90HP
Specifications
Brand Name :
Winibo
Model Number :
WP16NV F
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Delivery Time :
7-14DAYS
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000sets per month
Packaging Details :
carton box
Displacement/Revolution :
16cc
No. of Pistons :
5
Output :
68 kgf/cm3)
Applicable engines :
up to 90hp
Mounting :
Front mount
turns lock-to-lock :
5
Description

WP16NV F 16CC Hydraulic Steering Helm Pump for Marine Outboard Boat Up To 90HP

16CC Hydraulic Steering Helm Pump WP16NV F For Marine Outboard 90HP

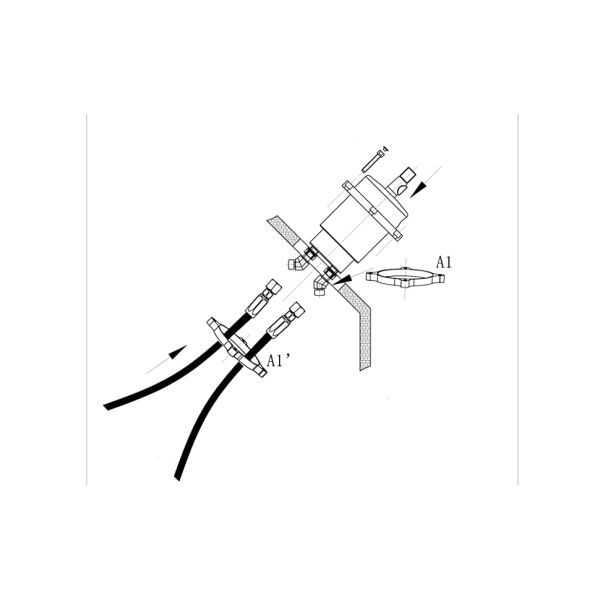

Easy to be installed

Unique Gasket design to make it very easy to be mounted

16CC Hydraulic Steering Helm Pump WP16NV F For Marine Outboard 90HP

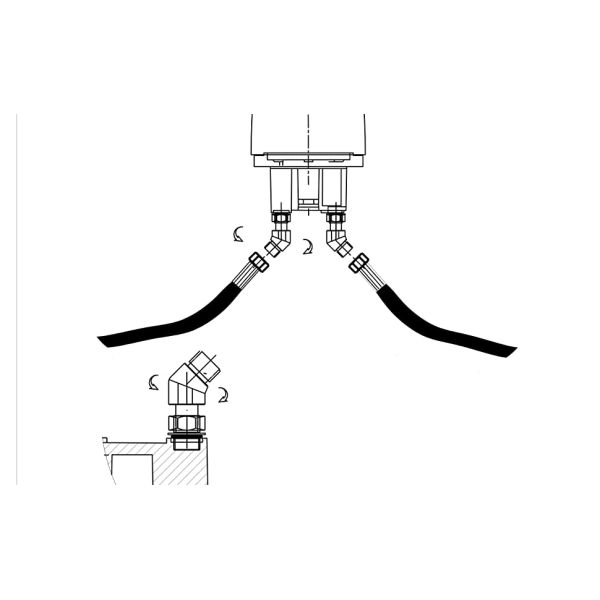

ORB fitting ports

Adjustable O-Ring (ORB) fitting ports for easy installation: It simplify the installation process and will allow for simple reorientation of the fittings after the installation.

WP16NV F

Displacement/Revolution 16 cc
No. of Pistons 5
Output 68 kgf/cm3)
Applicable engines up to 90hp
Mounting Front mount
Weight 2 kg , 4.4lbs
turns lock-to-lock 5

The strength required to drive a boat equipped with a hydraulic steering system is inversely proportional to the numbers of turns of the wheel lock-to-lock. The wheel turns are determinated by the ratio between the cylinder volume, pump displacement.

With the same type of cylinder installed on the engine, the less are the turns, the faster is the response but higher in the effort; more wheel turns, slower is the response and lower is the effort.

Other factors that can influence steering effort are:

Vessel speed

Rudder dimension, or engine power

Propeller selection

Hull type(displacement, planning etc.)

Sea conditions

oil viscosity
