Specifications
Brand Name :
Winibo
Model Number :
ZA0300
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Supply Ability :
1000 pcs per month
Packaging Details :
one pcs per carton; carton size: 60*30*20cm
Pump :
18 cc/rev
Plunger number :
7
Helm Max-pressure :
69 kgf/cm3
cylinder volume :
116.9 cc
cylinder tube I.D :
31.8 mm
cylinder rode I.D :
16
Cylinder output Force :
409.7 kgf
Strode :
197.3 mm
Handover to handover :
6.8times
Steering wheel diameter :
320-540mm
Description

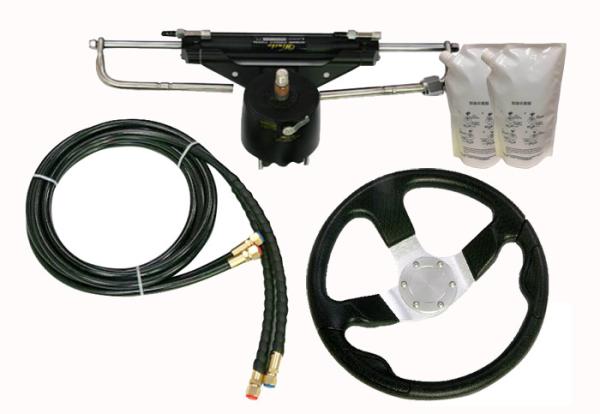

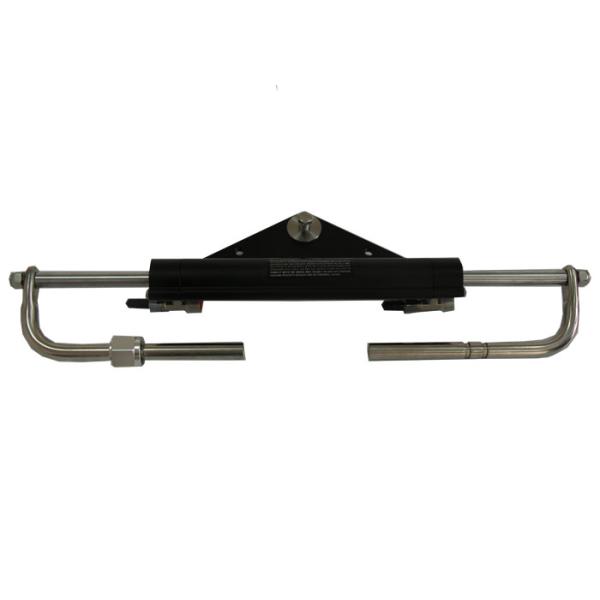

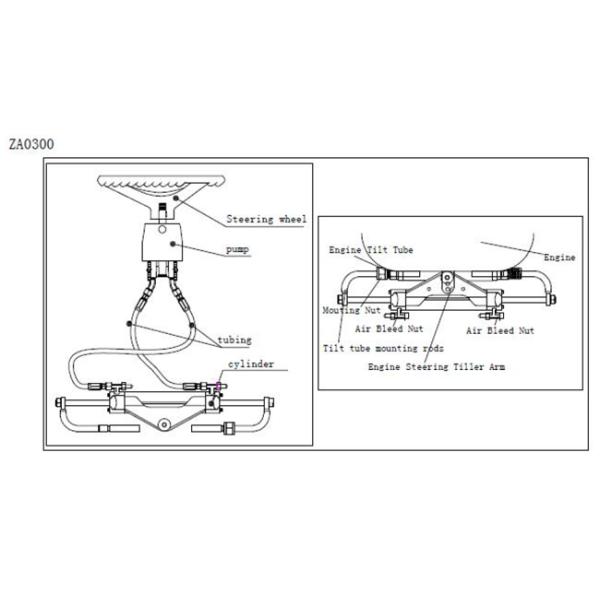

ZA0300 Hydraulic Outboard Steering Kit With Helm Pump, Compact Cylinder, Tubing, Steering Wheel and Hydraulic Oil​

* Suitable for model up to 150hp Cylinder.

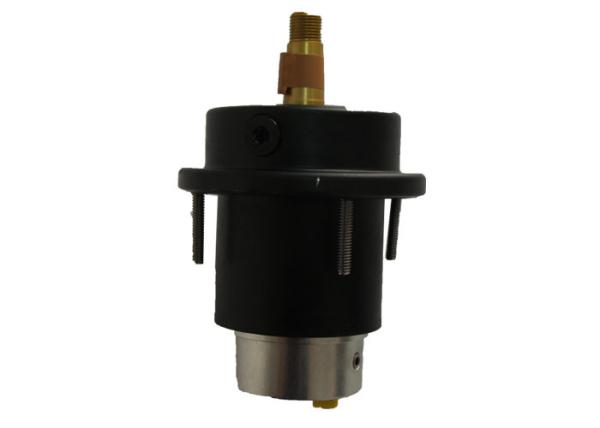

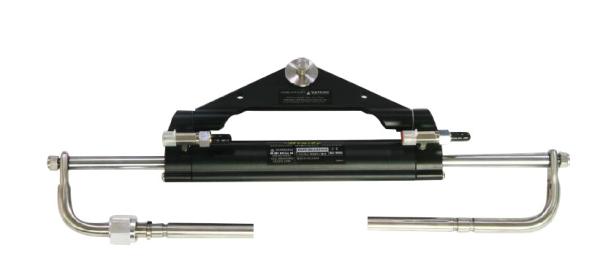

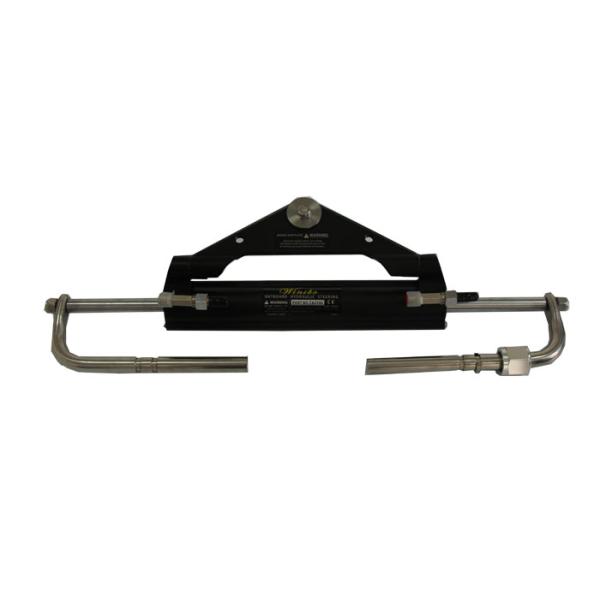

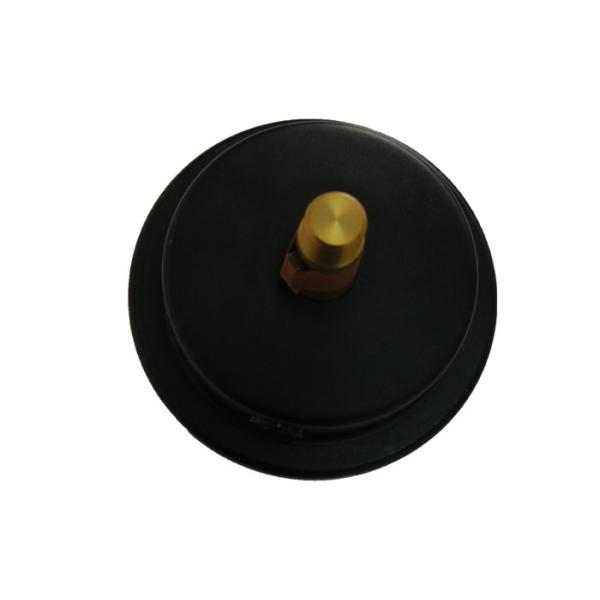

* Helm pump and two tubes in length of 8 meters for each, Steering Wheel(selectable), two packs of hydraulic oil,compact cylinder are included

* Bore diameter:31.8mm Piston rod diameter:16mm Plunger number: 7 Handover to handover: 6.8times

* This kit is universal fitted for almost all the models(Evinrude, Mercury, Volve, Yamaha, SUZUKI, HONDA,TOHATSU etc.)

* It can be installed easily and fast. A step by step manual is included.

Volume Tube I.D Rod I.D Output Force
Technical Data
116.9cc 31.8mm 16mm 409.7 kgf
Strode Application Plunger Turns lock-to-lock
197.3mm UP to 150HP 7 6.8 times
