Marine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300
Marine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300
Marine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300
Marine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300
Marine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300
Marine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300
Marine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300
Marine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300
Marine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300
Marine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300
Marine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300
Marine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300
Specifications
Brand Name :
Winibo
Model Number :
ZA0300
Certification :
CE
Place of Origin :
China
MOQ :
1Set
Price :
USD290-400
Payment Terms :
T/T
Supply Ability :
10000 Set/per month
Delivery Time :
7-15 Days
Packaging Details :
Carton Box
Helm Volume(cc/rev) :
18
Plunger Number :
7
Bore :
31.8 mm
Suitable Model :
up to 150HP
Piston Rod Diameter :
16 mm
Wheel turns lock to lock :
6.8 times
Carton Size :
61*29*19cm
Shipping Weight :
9.5 kgs
Description

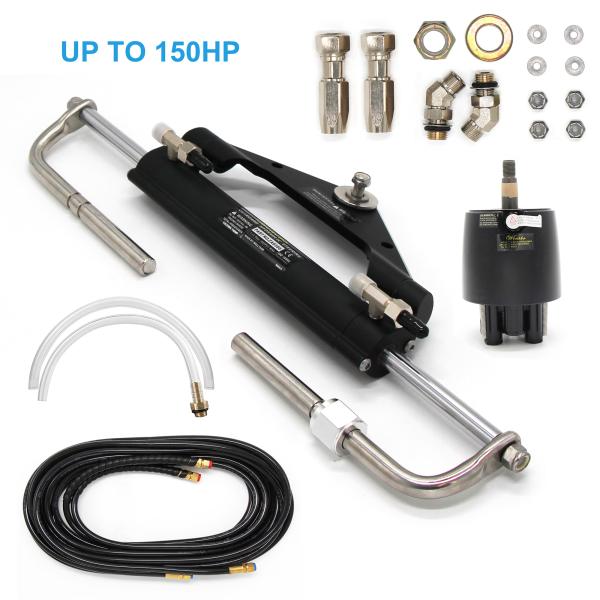

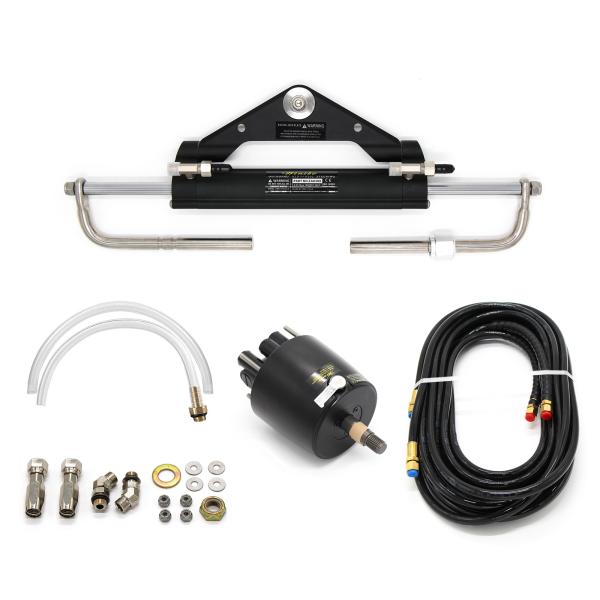

Winibo ZA0300 Boat Hydraulic Steering Kit For Outboard Up To 150HP With Helm Pump,Cylinder And Tubes

Product DescriptionMarine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300

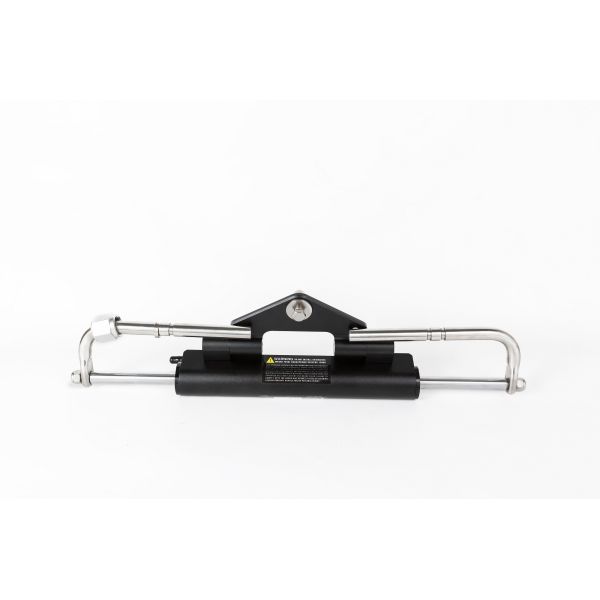

High Performance Front Mount Cylinder

  • Swiveling fittings for easy installation

  • High resistance stainless steel connection bolt

  • For single engine single cylinder, up to 150 hp max

Features & DetailsMarine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300

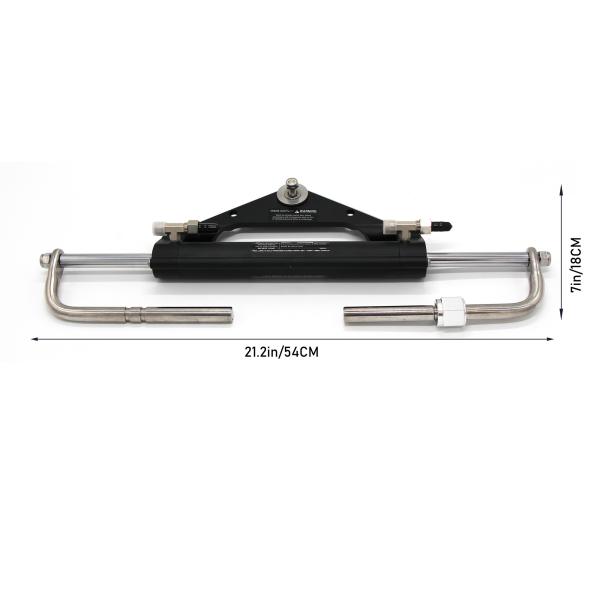

Winibo Compact Cylinder

  • Low friction seals

  • High resistance stainless steel connection bolt

  • The number of turns lock-to-lock is equal port to starboard or vice-versa

Marine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300

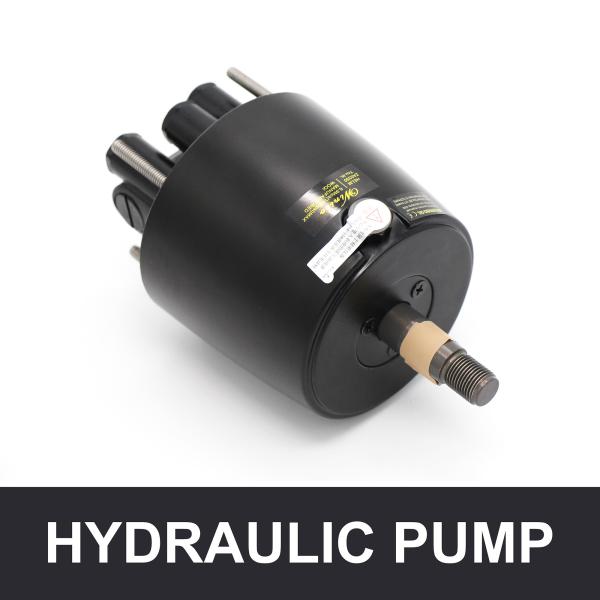

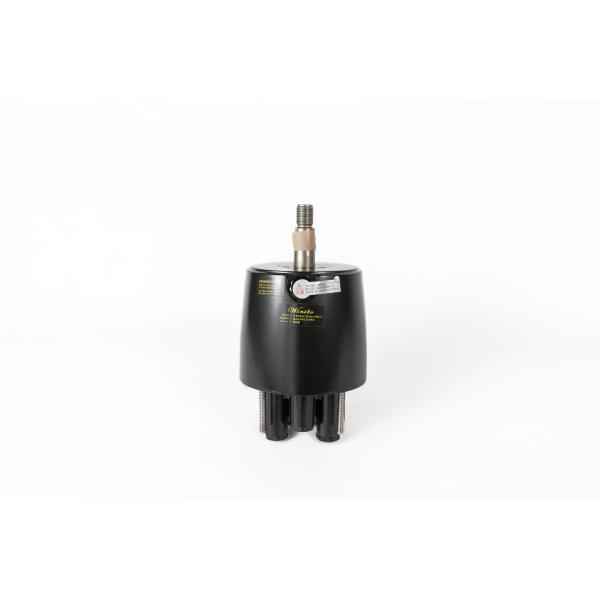

Compact Front Mount Helm Pumps

  • Built-in lock valve for positive rudder lock

  • Integral relief valve for over-pressure protection

  • 7 plunger

  • 3/4" tapered stainless shaft

  • Anodized cover

  • ORB ports

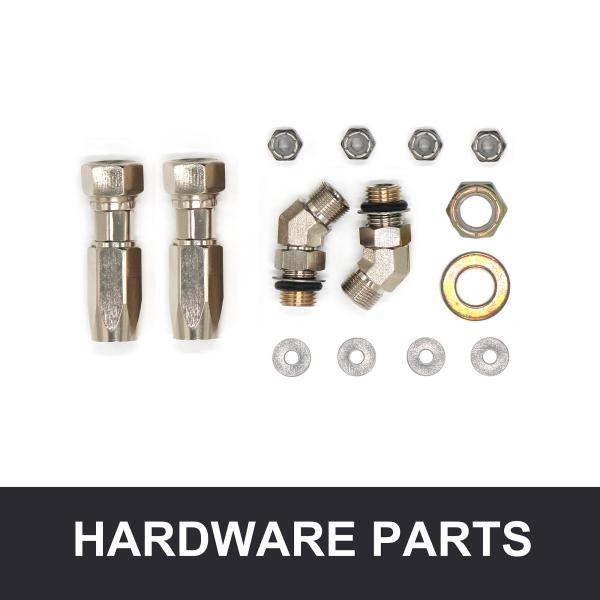

Marine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300ORB Accessories

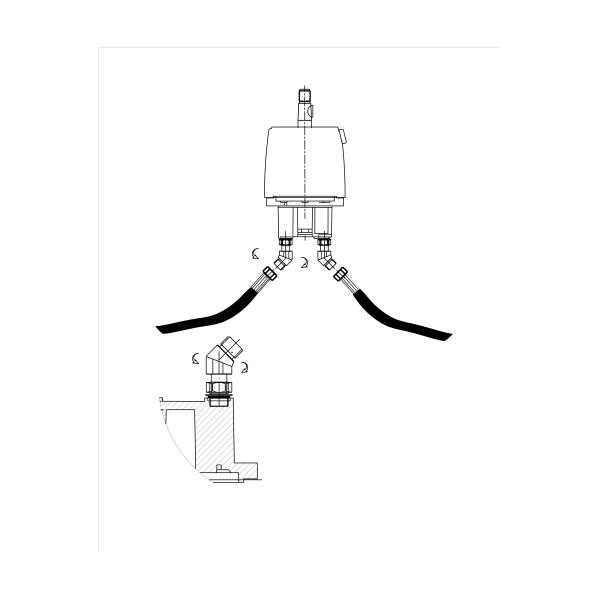

  • Adjustable O-Ring (ORB) Fittings

  • Simplified installation process

  • Made of chromed copper.Marine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300

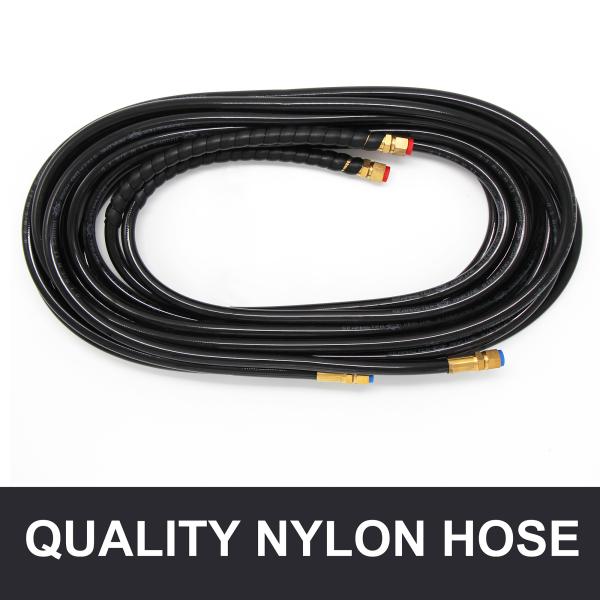

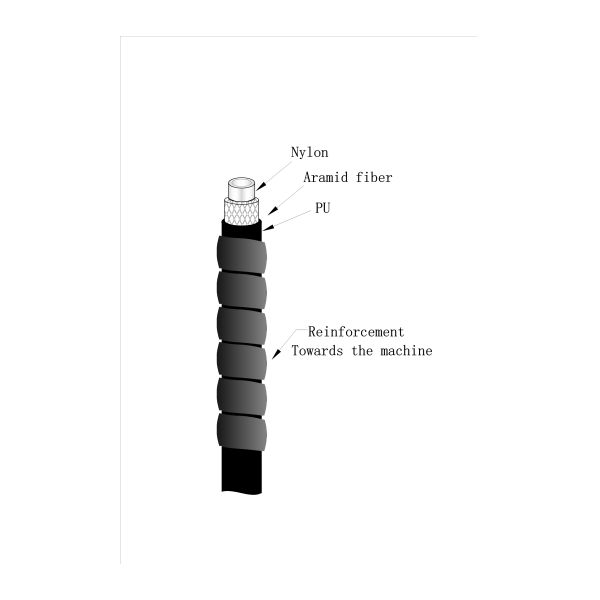

Tube kits in 24 feet.

  • Reinforced top cylinder

  • High Strength tubes made in 3 layer

Application guidance

Marine Outboard Hydraulic Steering Kit For Boats Up To 150HP Outboard Engines Winibo ZA0300

Cylinder Specification

Volume 116.7 cc
Output Force 409.7 kg - 903.2 lbs
Cylinder I.D 31.8 mm - 1.25"
Piston I.D 16 mm - 0.63"
Stroke 197.3 mm - 7.76"
High Pressure Hose 5/16'' (7.9mm) Fittings

Product Information

Applicable Horsepower Up To 150HP
Item Package L x W x H ‎23.6 x 11.25 x 7.16 inches
Item Weight ‎6.7 Kilograms
Material Stainless Steel＆Aluminum alloy
Brand Name Winibo
Item Number

‎ZA0300
